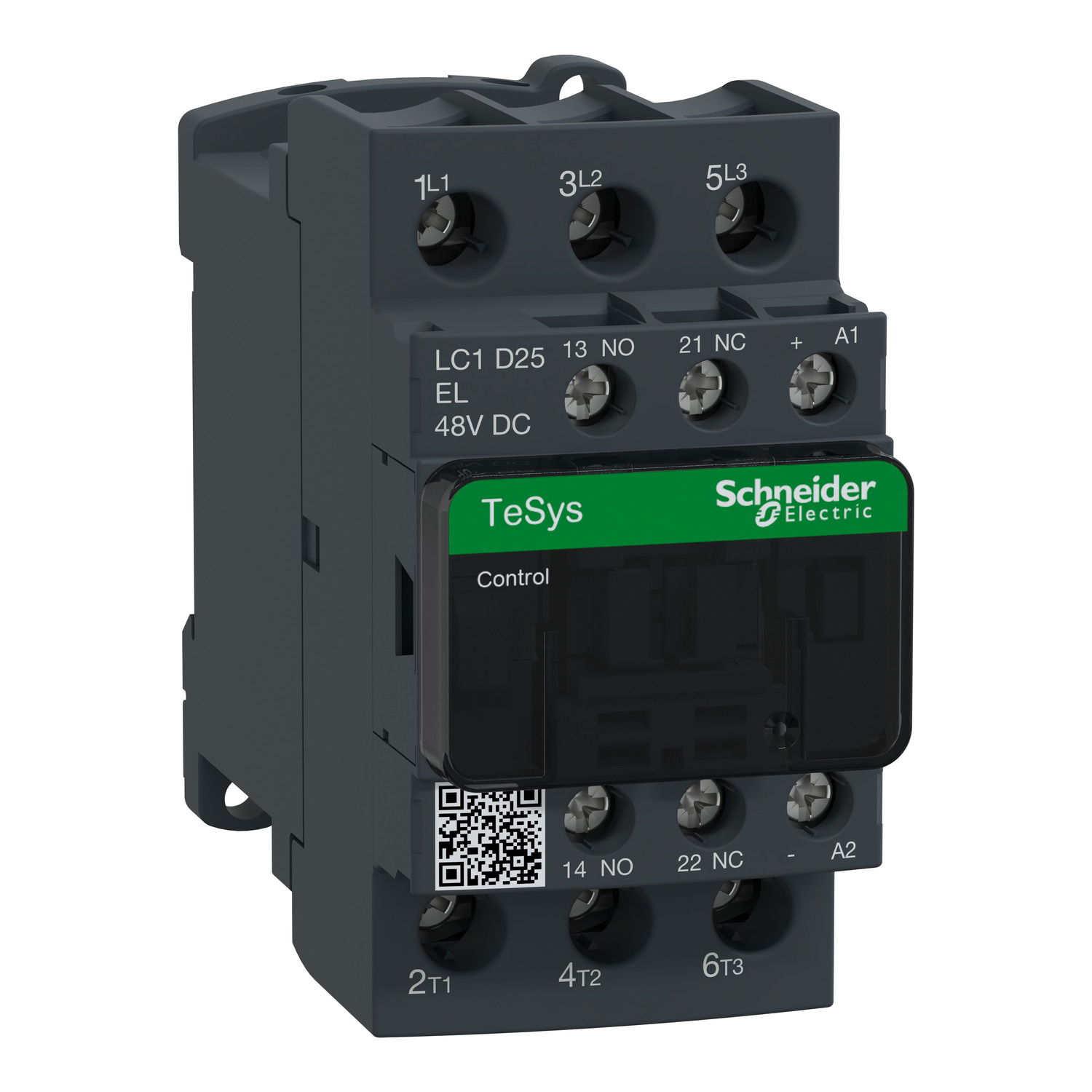

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 48 V DC coil
1 / 5
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 48 V DC coil
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 48 V DC coil by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £125.54 to £154.29 excl. VAT. Voltimum+ members earn 17 points per unit.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a low consumption 48V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D25EL
EAN: 3389110361780
GTIN: 3389110361780
MPN: LC1D25EL
Loyalty points:
17
Price range: £ 125.54 - £ 154.29 Excl. VAT
ETIM group
Specifications
| Depth | 101 mm |
| Width | 45 mm |
| Height | 85 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | DC |
