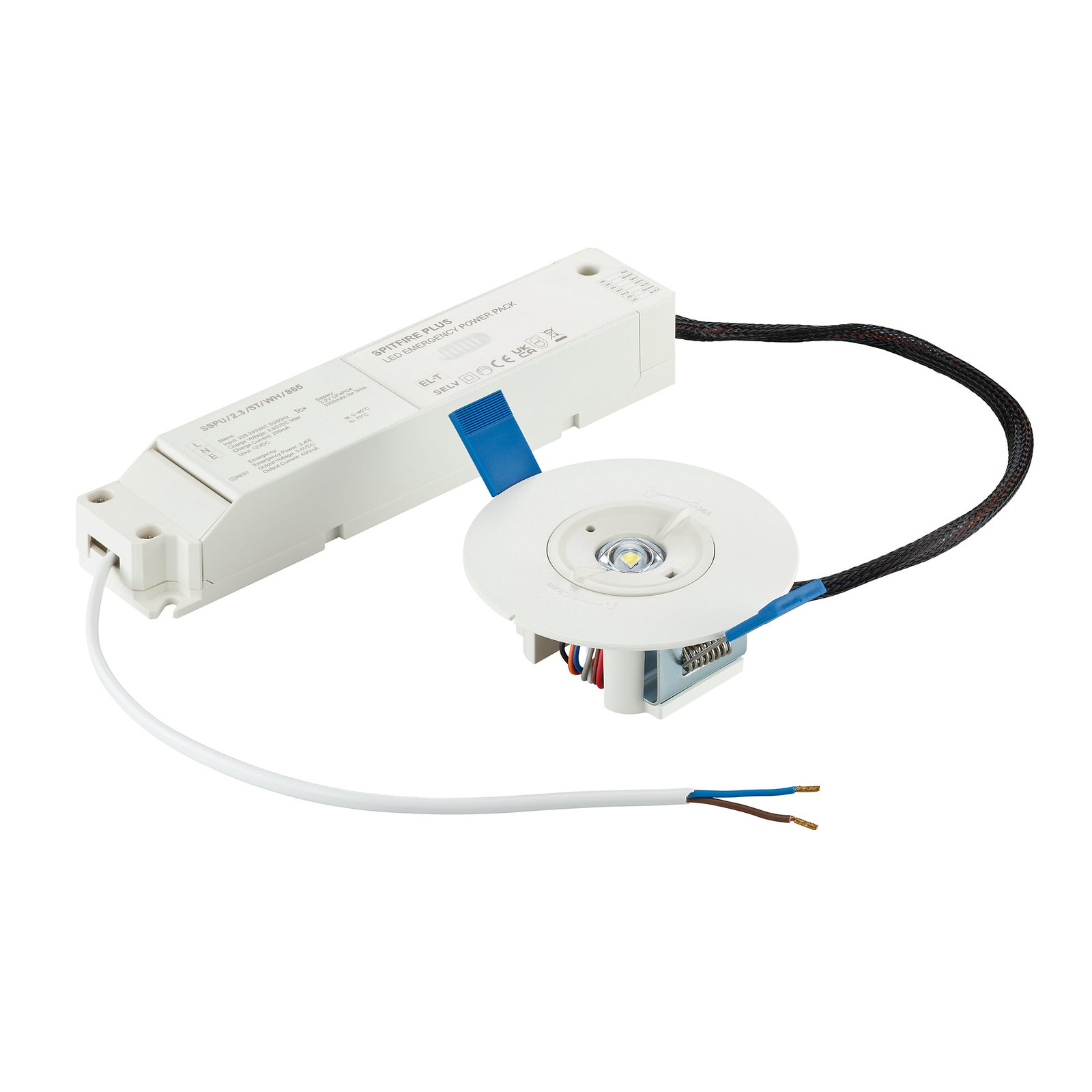

Emergency Downlight, Recessed emergency downlight, 3 W, 3 W, D95 mm H31 mm, 328 lm, 6500 K, IP20, ELP3h
Philips

Emergency Downlight, Recessed emergency downlight, 3 W, 3 W, D95 mm H31 mm, 328 lm, 6500 K, IP20, ELP3h

Recessed emergency downlight, D95 mm; H31 mm, Polycarbonate, White, Signal white (RAL9003), 328 lm, 3 W, 143 lm/W, 6500 K, 0.33, Open area or corridor optic, Clear, UV-stabilised polycarbonate cover, IP20 | Finger-protected, IK04 | 0.5 J standard plus, Safety class II, Emergency lighting 3-hour duration Pro version

Product identifiers

SKU: 912401483506

Price: £ 0.00 Excl. VAT

Categories

LED Lighting & Luminaires Emergency Lighting

Specifications

Cable 0.2 meter cable (H03VVH2-F)
CE mark Yes
Dimmable No
ENEC mark -
Connection -
Optic type Open area or corridor optic
Inrush time 100 ms
Input Voltage 220-240 V
Overall width 43 mm
Housing Colour White
Line Frequency 50 Hz
Overall height 33 mm
Driver included Yes
Warranty period 5 years
Lamp family code -
Control interface Internal (no external connection)
Fixation material -
Maximum dim level Not applicable
Optic type outdoor -
Reflector material -
Initial chromaticity 0.33
Constant light output No
Luminous flux tolerance +/-5%
Effective projected area 14 m²
Ambient temperature range +5 to +45 °C
Optical cover/lens finish Clear
Luminaire light beam spread 165° - 160° x 50°
Power consumption tolerance +/-10%
Mech. impact protection code IK04 | 0.5 J standard plus
Average CLO power consumption 2.3 W
Initial CLO power consumption 3 W
Luminous efficacy (rated) (nom.) 143 lm/W
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 35000 h L95
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 75000 h L95
