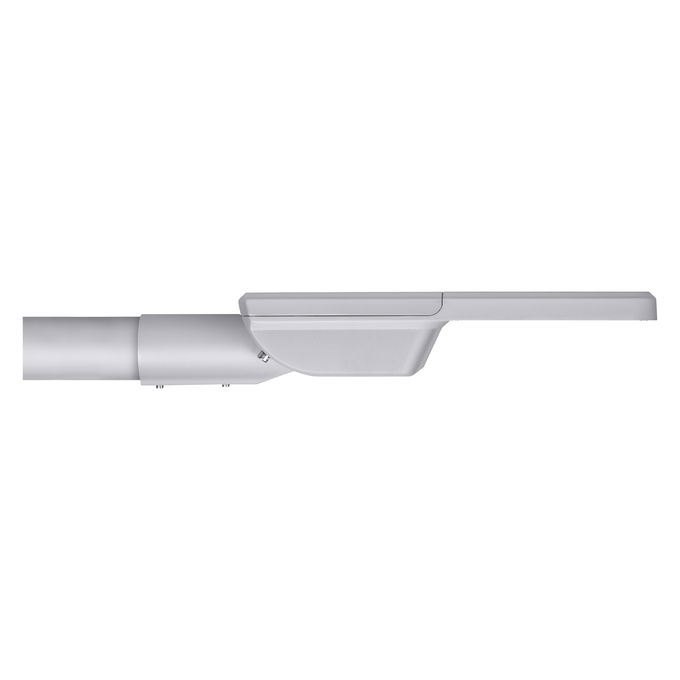

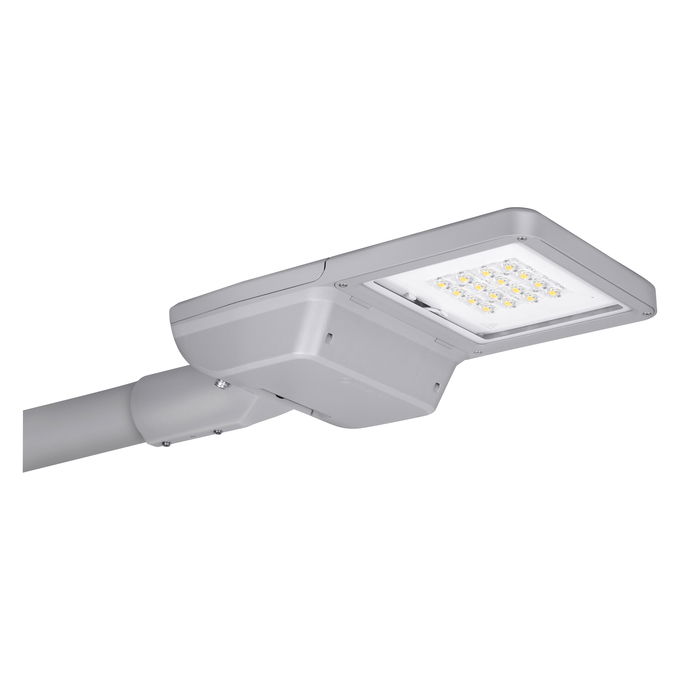

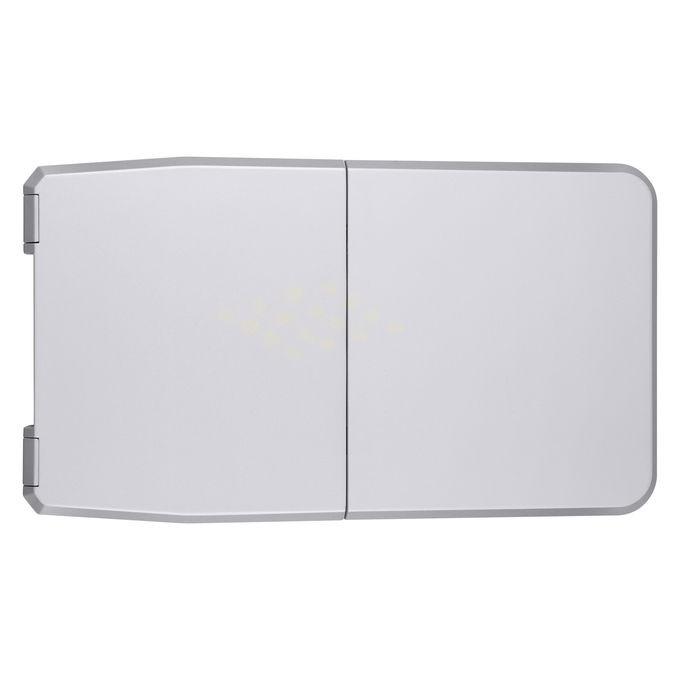

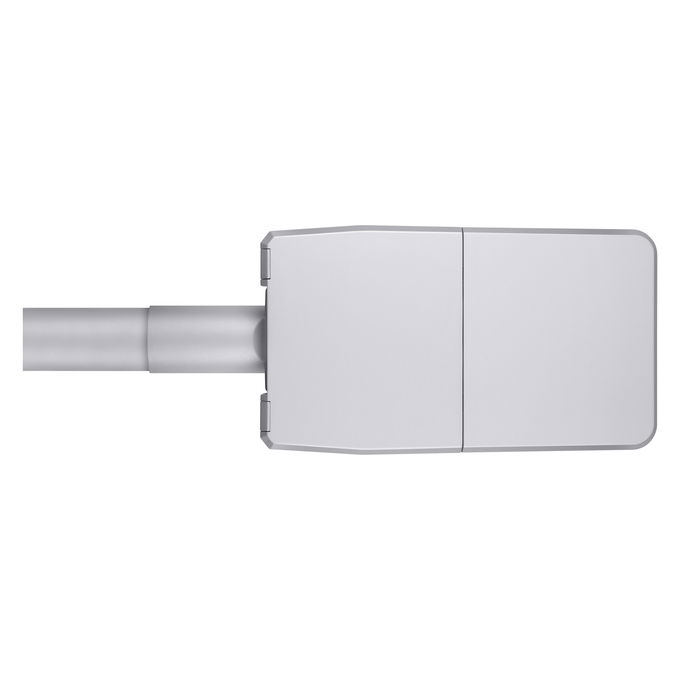

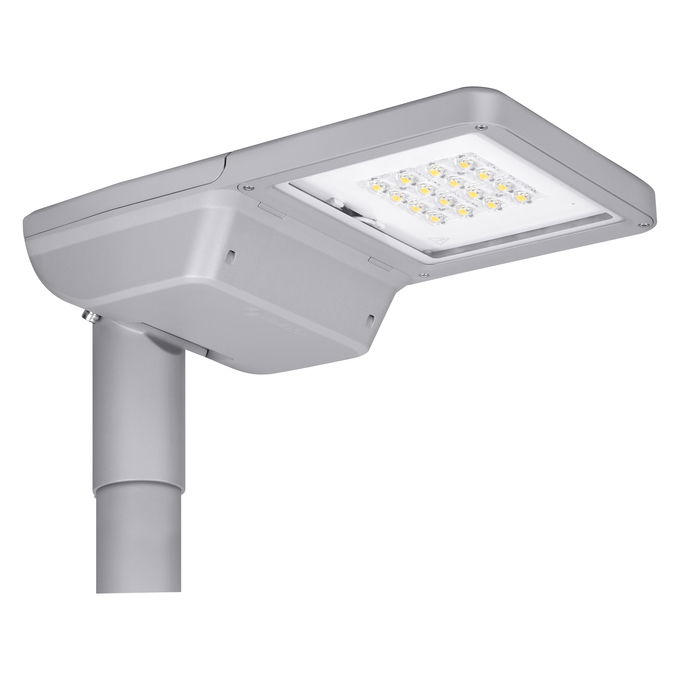

SL FLEX SM RV25ST P 36W 740 WAL

Product benefits

• Durable design and highest quality component selection for long lasting performance
• Quick and easy wiring, due to tool-free housing opening and push button terminal
• High light uniformity
• 3 light colors available, perfectly suited to illuminate highly diverse surroundings
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Automatic mains disconnection when opening the housing
• 5 years guarantee

Areas of application

• Outdoor use (IP66)
• M-, C- and P-class roads acc. to EN 13201
• Parking
• Public areas
• Industry

Product features

• Light distributions optimized for streets of similar width to the pole height
• Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
• Spigot for 48-60 mm poles included
• Additional reduction for 42 mm and adapter for 76 mm poles available separately

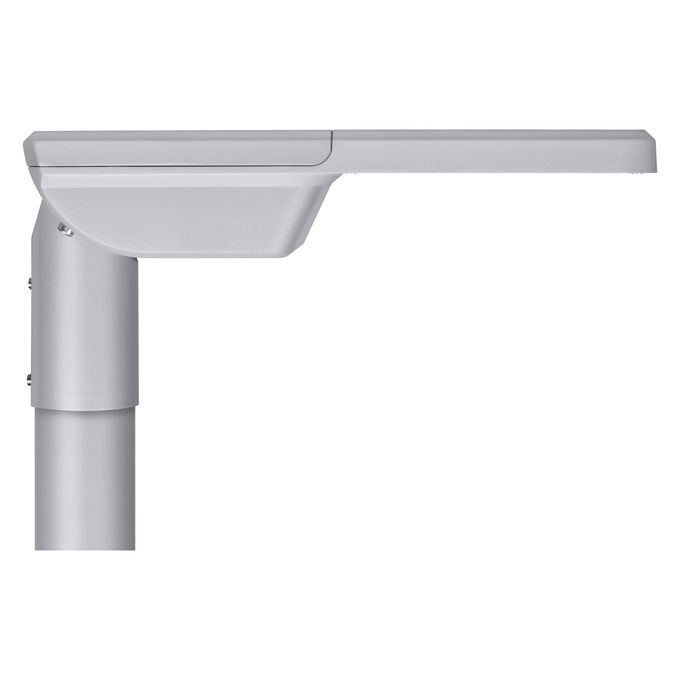

• Adjustable spigot for both side-entry and post-top installation

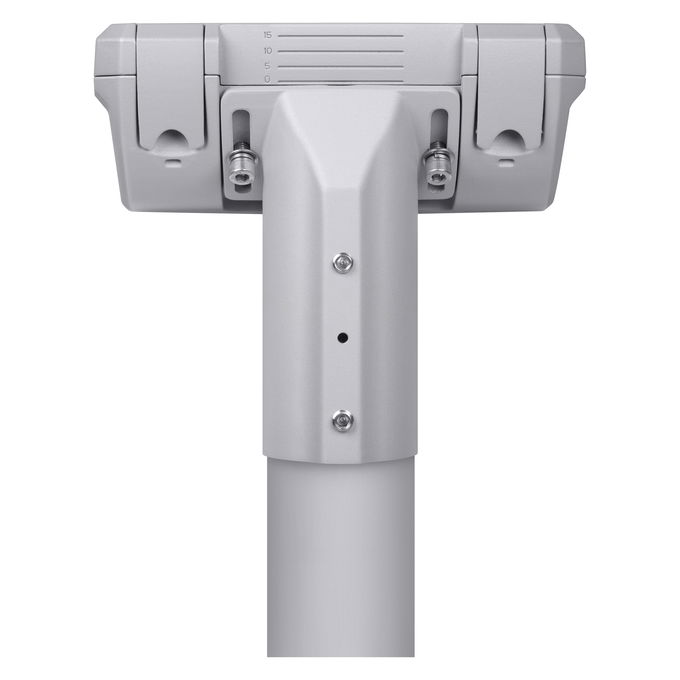

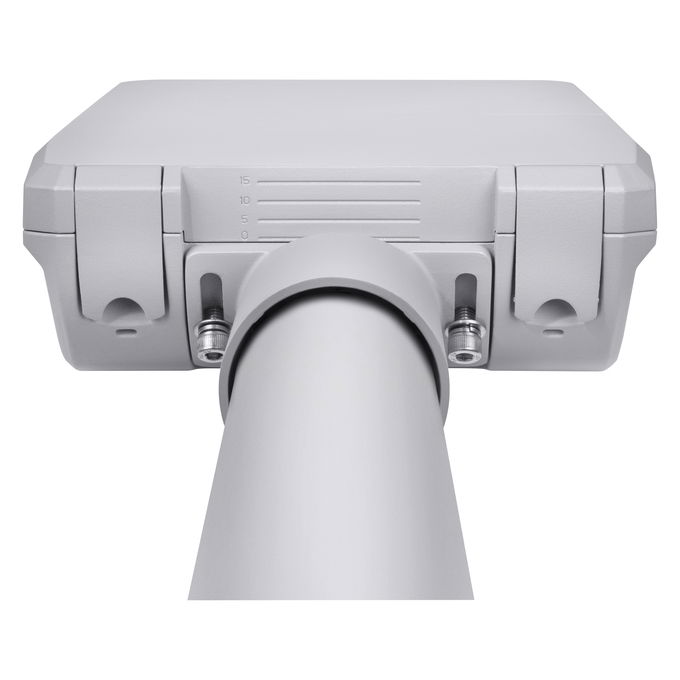

• +/- 15° tilt angle adjustment without opening the housing
• High luminous efficacy: up to 144 lm/W
• Operating temperature: -40...50 °C
• High surge protection: up to 10 kV (L/N-GND)
• Protection class: II

Equipment / Accessories

• Spigot for 42 and 76 mm poles available separately

References / Links

• For Guarantee see www.ledvance.com/guarantee
