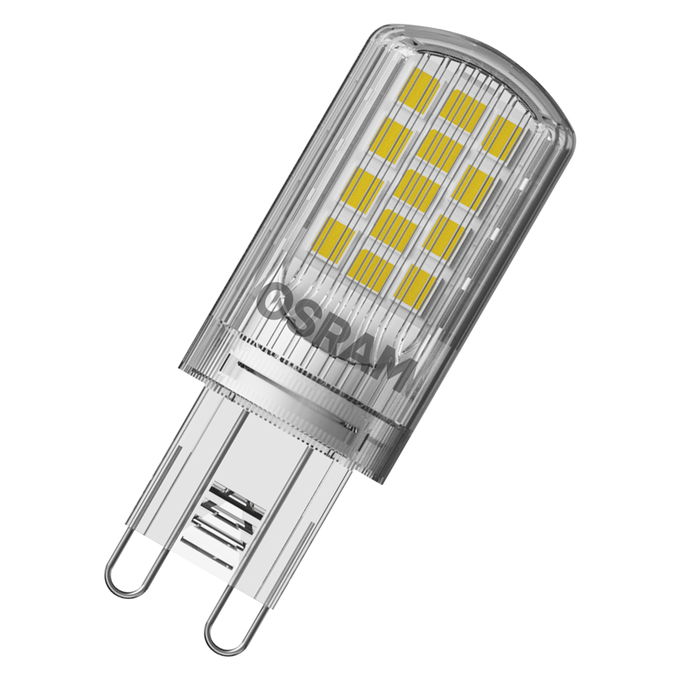

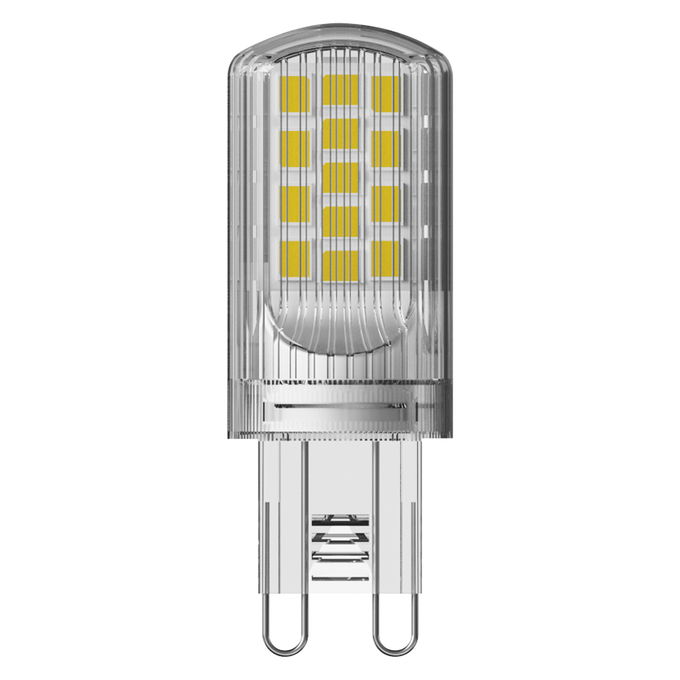

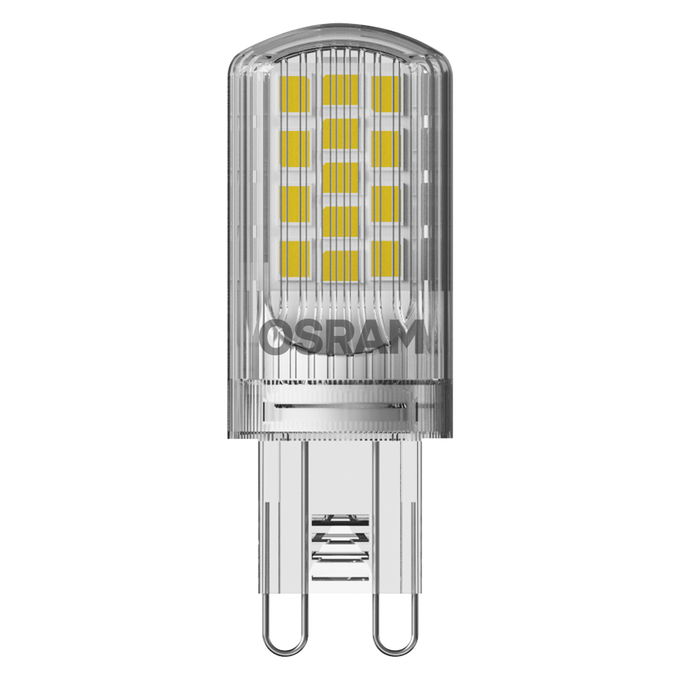

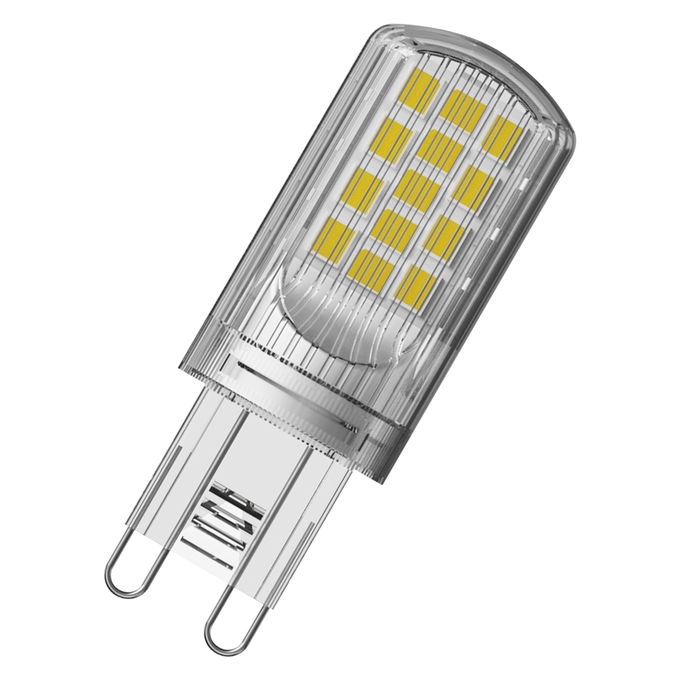

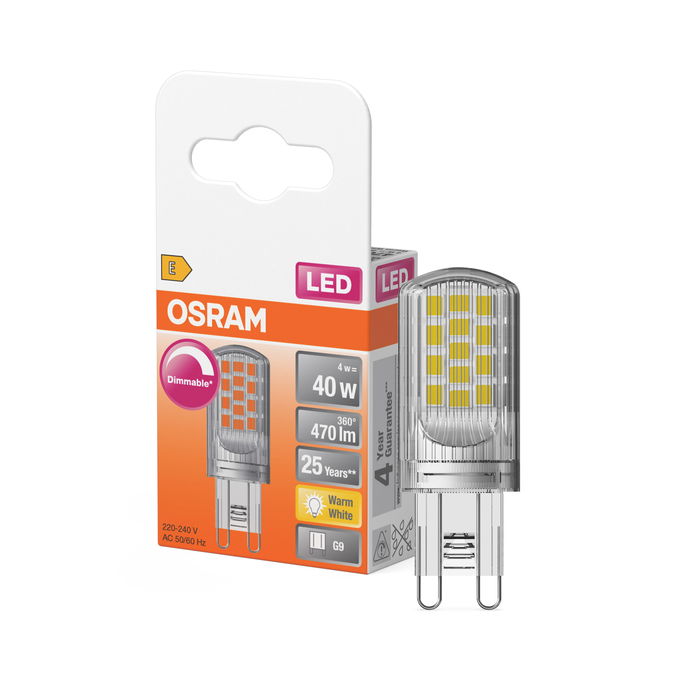

LED PIN 40 320° DIM 4W 827 Clear G9

LED PIN 40 320° DIM 4W 827 Clear G9

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to conventional high voltage lamps
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links

Product identifiers

SKU: 4058075432246
EAN: 4058075432246
GTIN: 4058075432246
MPN: 4058075432246

Price: £ 9.71 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Capabilities

Dimmable Yes 1)

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 26 mA
Inrush current 0.08 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 711
Power factor λ > 0.40

Documents

Documents and certificates

Data sheet
Open

Documents And Certificates

Declarations of conformity UKCA – LED PIN G9
Open
PRODUCT DATASHEET – PINDIM404W2700KG9en
Open
Product datasheet -> old version of product – LEDPIN40320°DIM4W827C learG9en
Open
Product datasheet -> old version of product – LEDPIN40320°DIM4W827C learG9en
Open

Photometric And Lighting Design Files

IES file (IES) – LED PIN40 DIM
Open
LDT file (Eulumdat) – LED PIN 40 DIM
Open
Spectral power distribution – 349927_2700K_Evl_5630. eps
Open
