Green light block with body/fixing collar integral LED 110...120V

Name: Green light block with body/fixing collar integral LED 110...120V
Brand: Schneider Electric
SKU: ZB4BVG3
Price: 13.80 GBP
Availability: InStock

Green light block with body/fixing collar integral LED 110...120V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 2 points per unit.

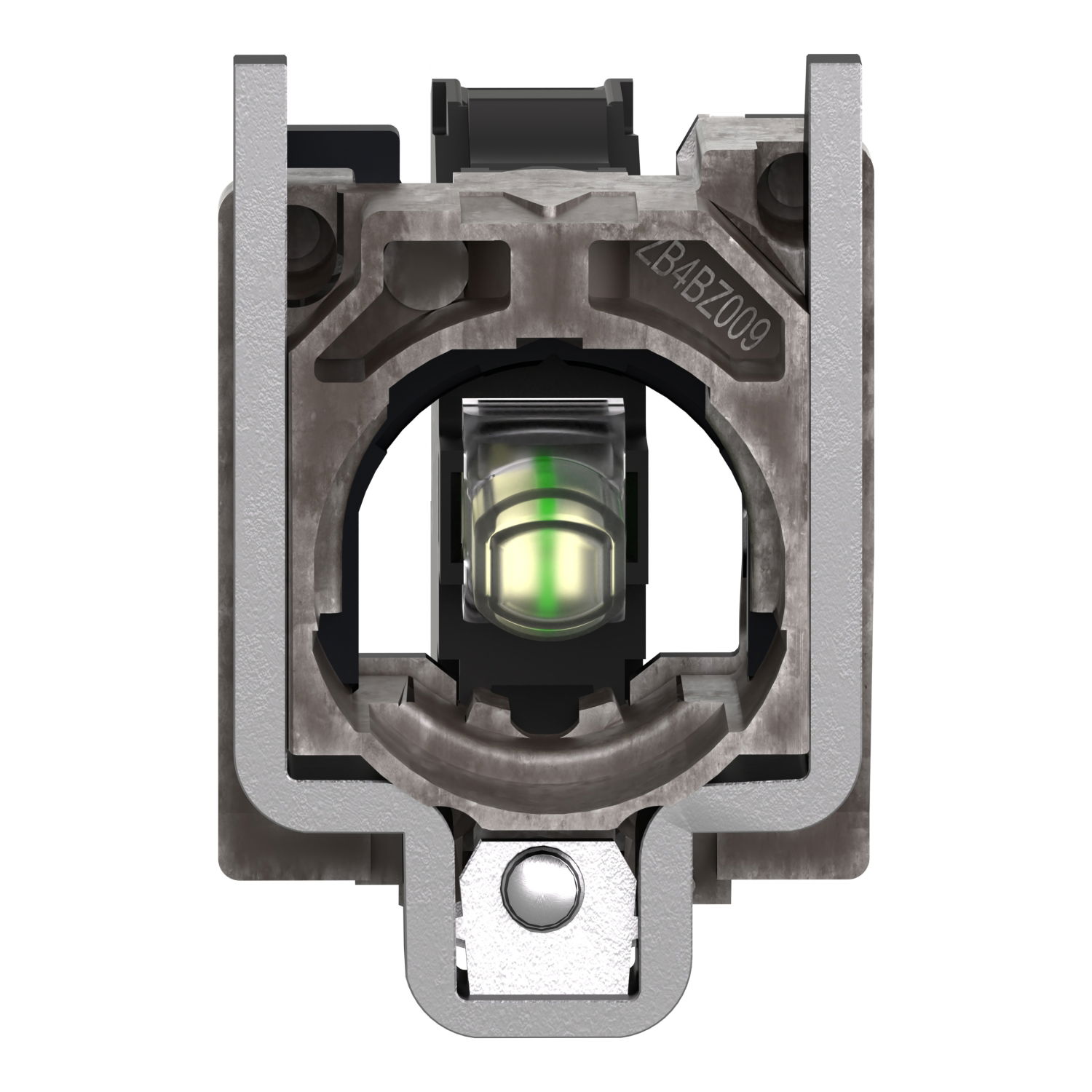

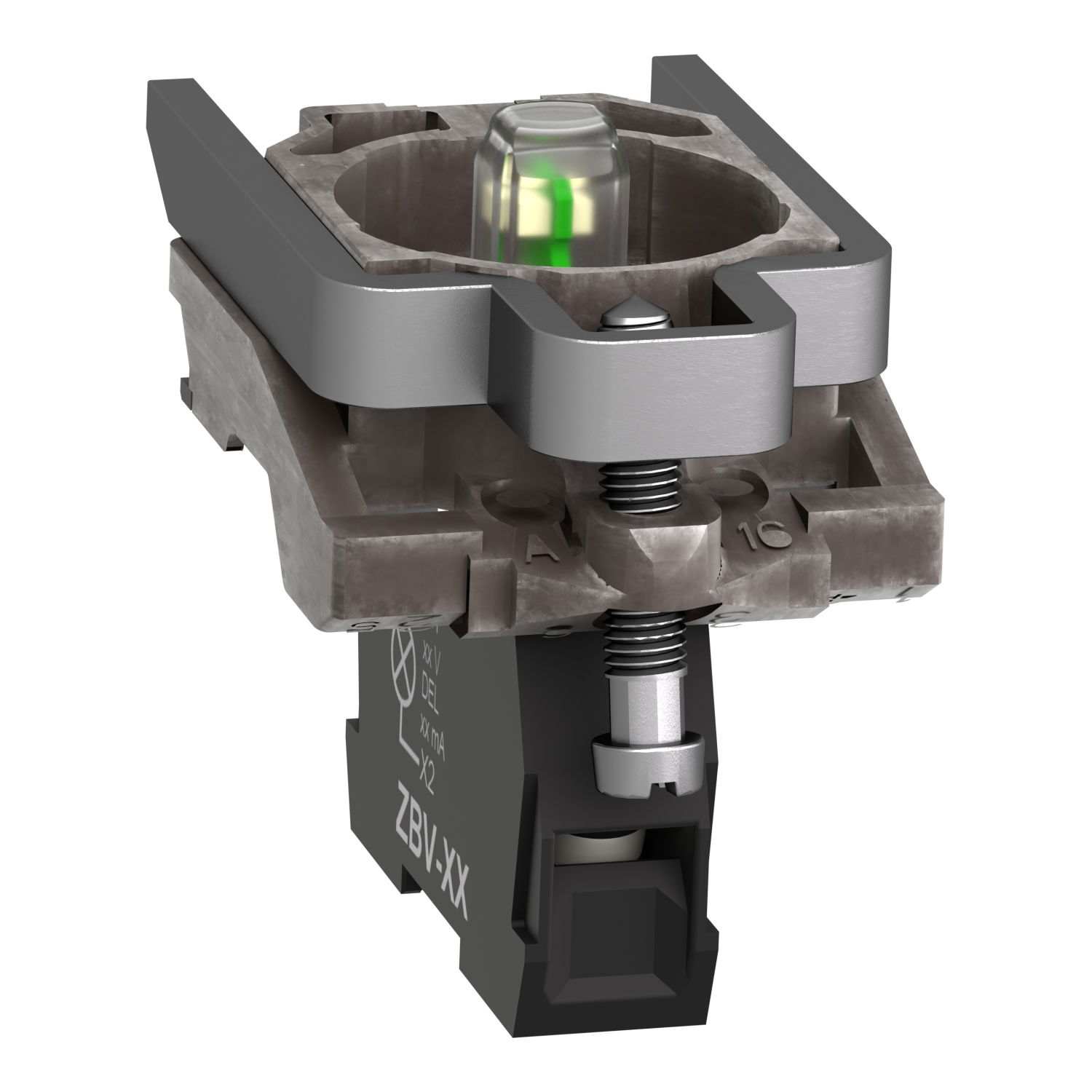

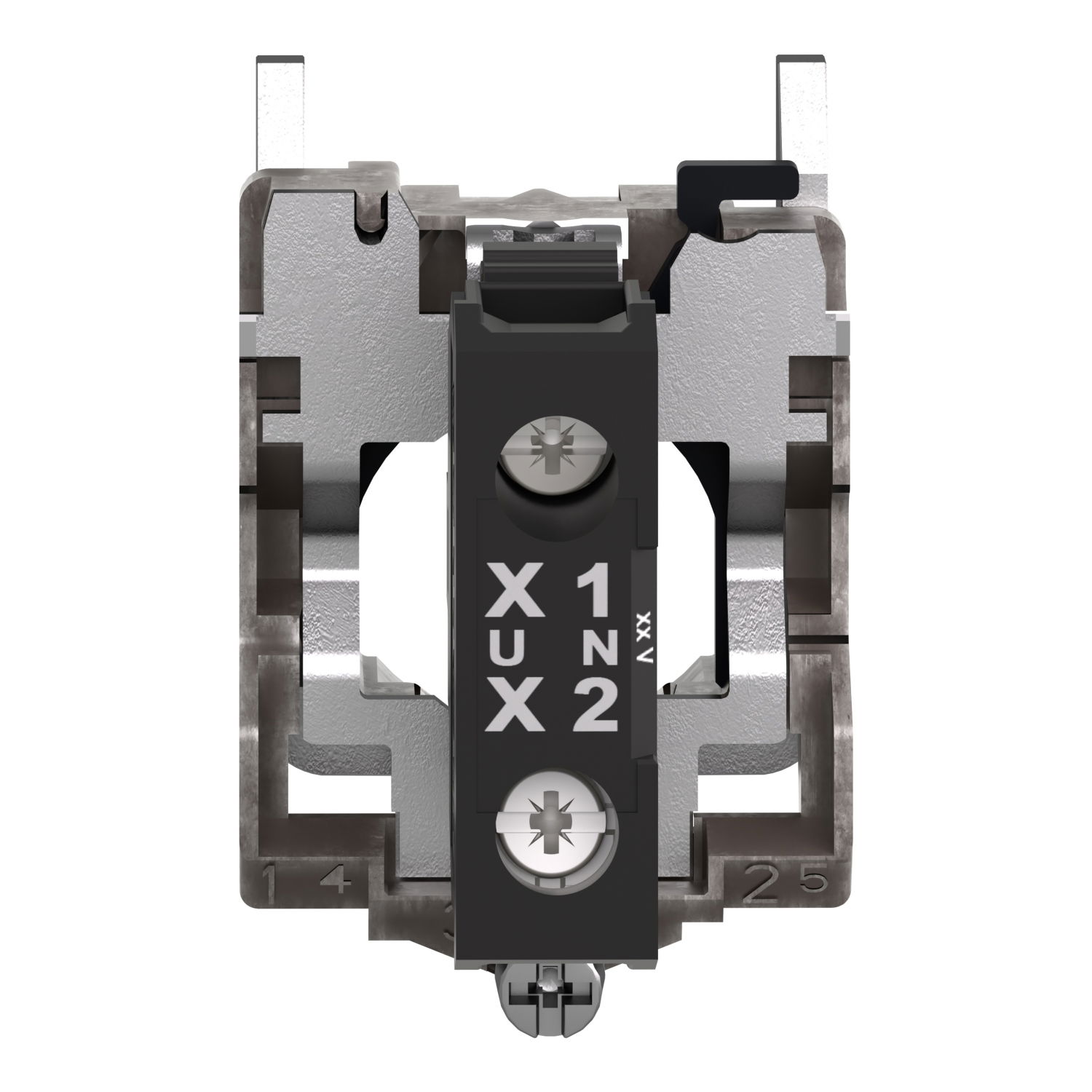

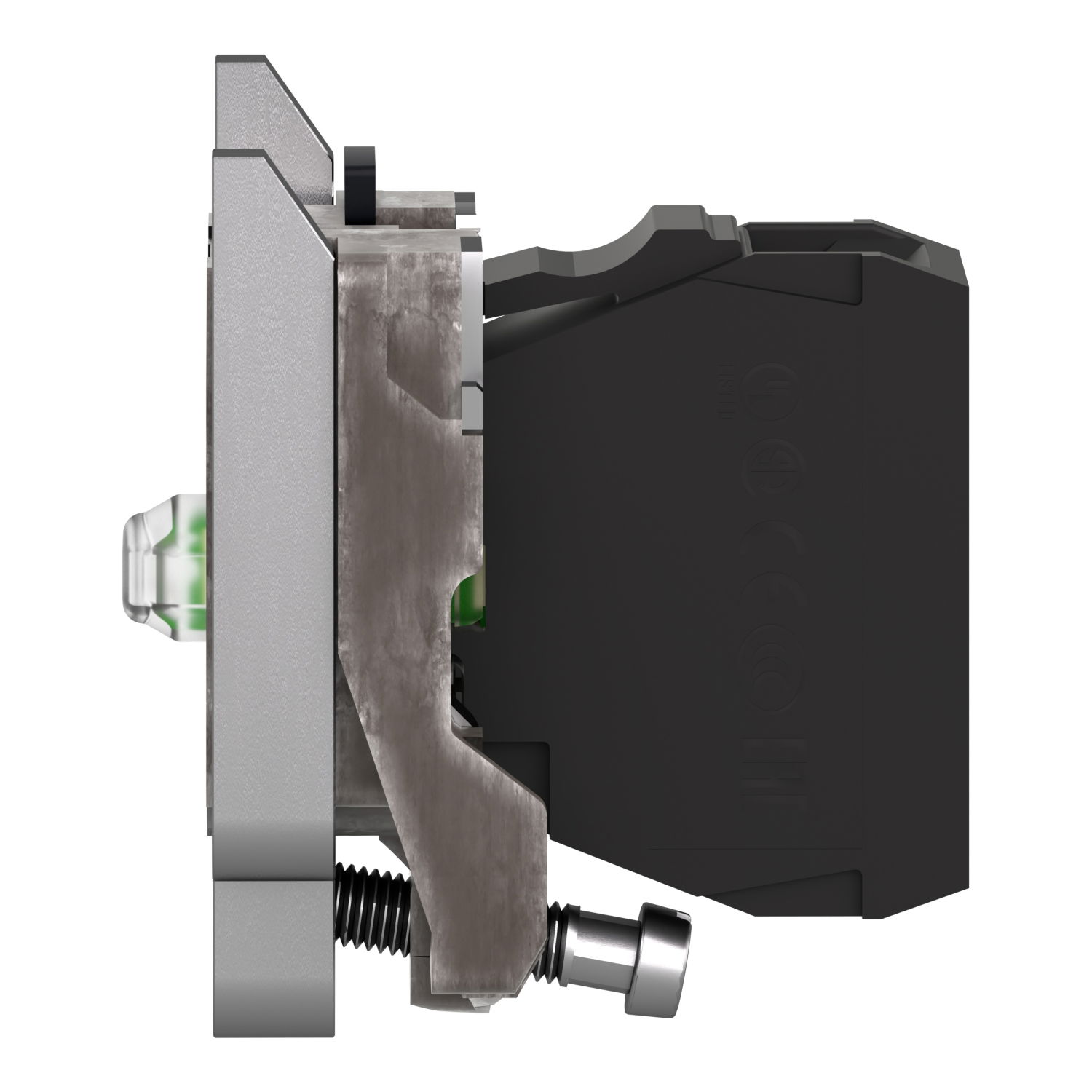

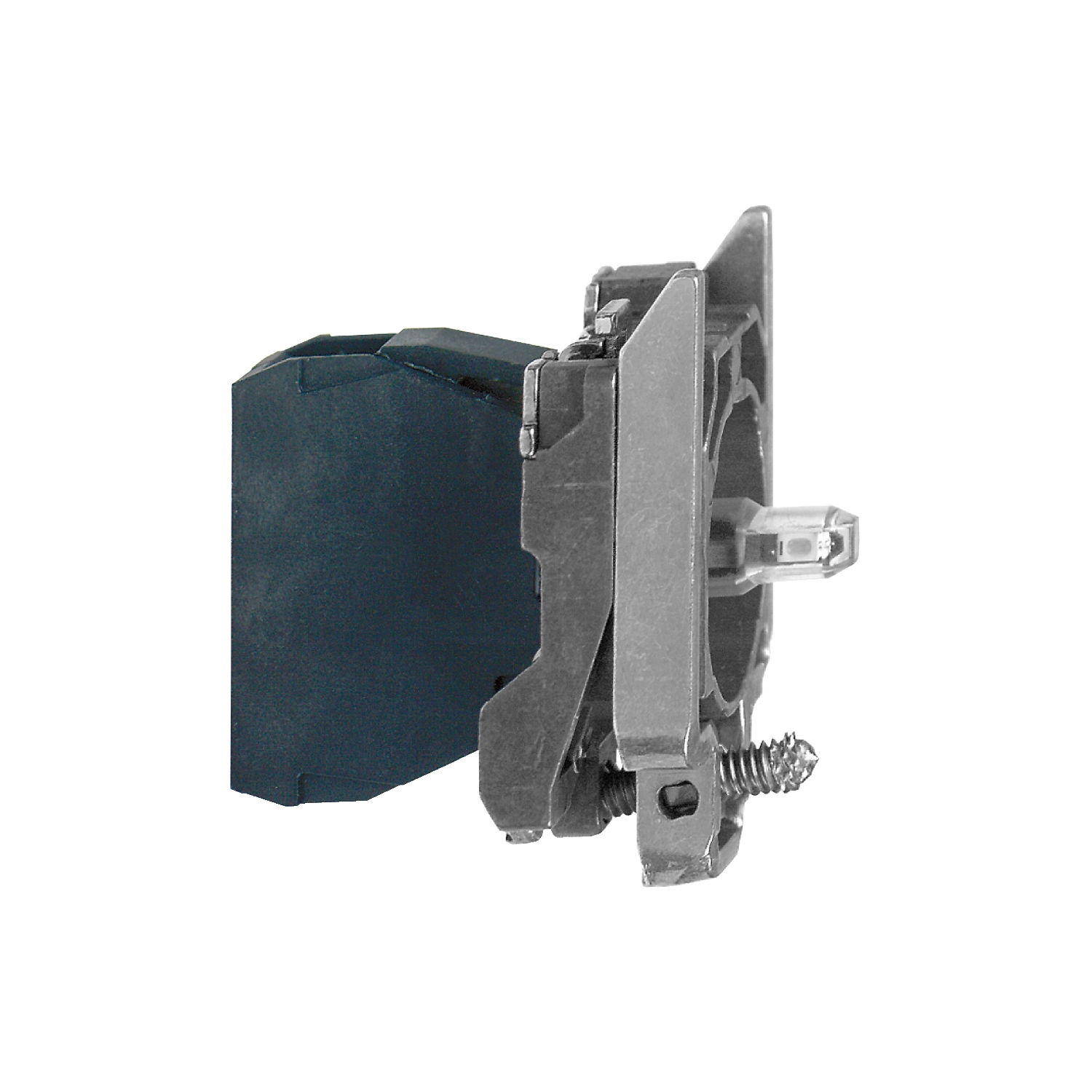

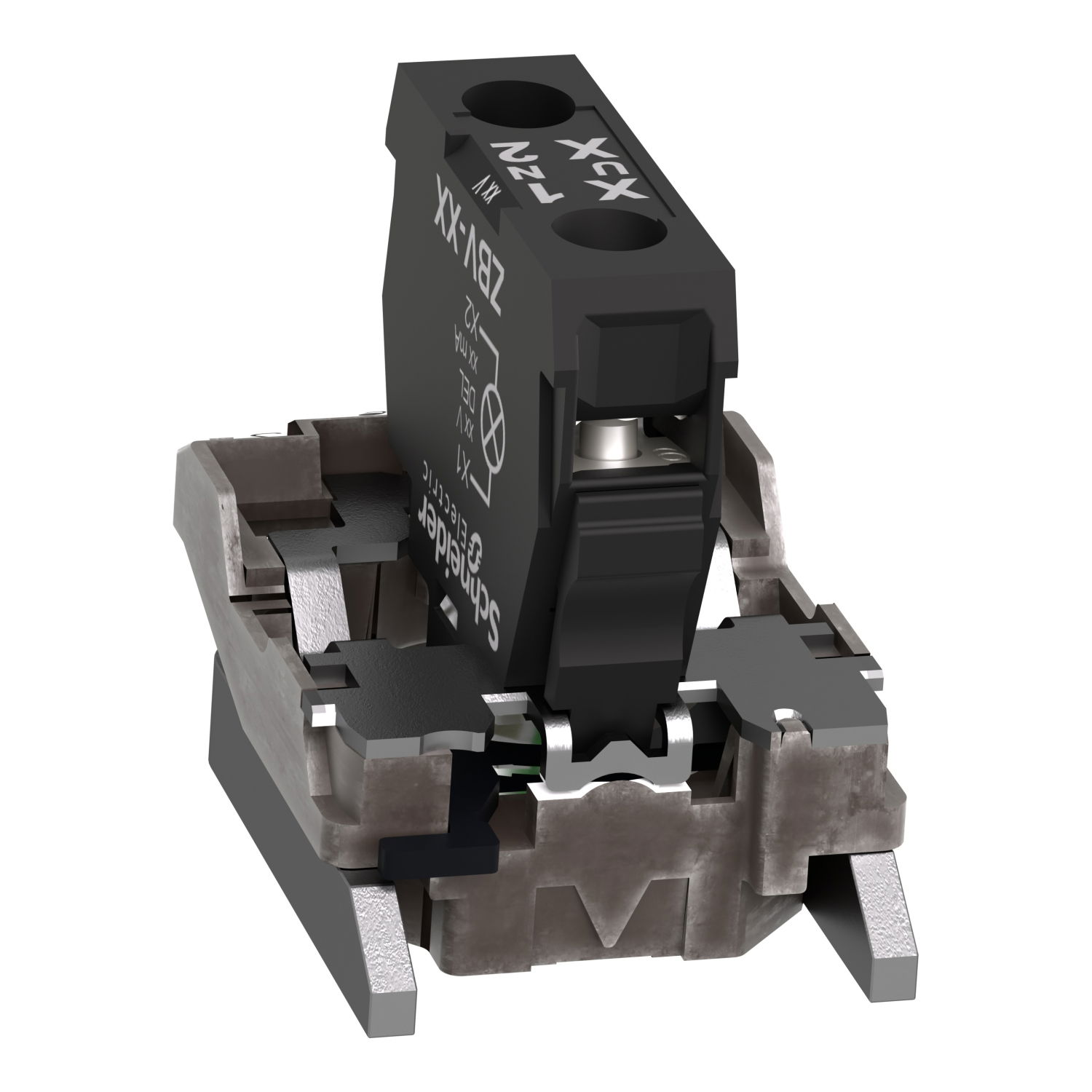

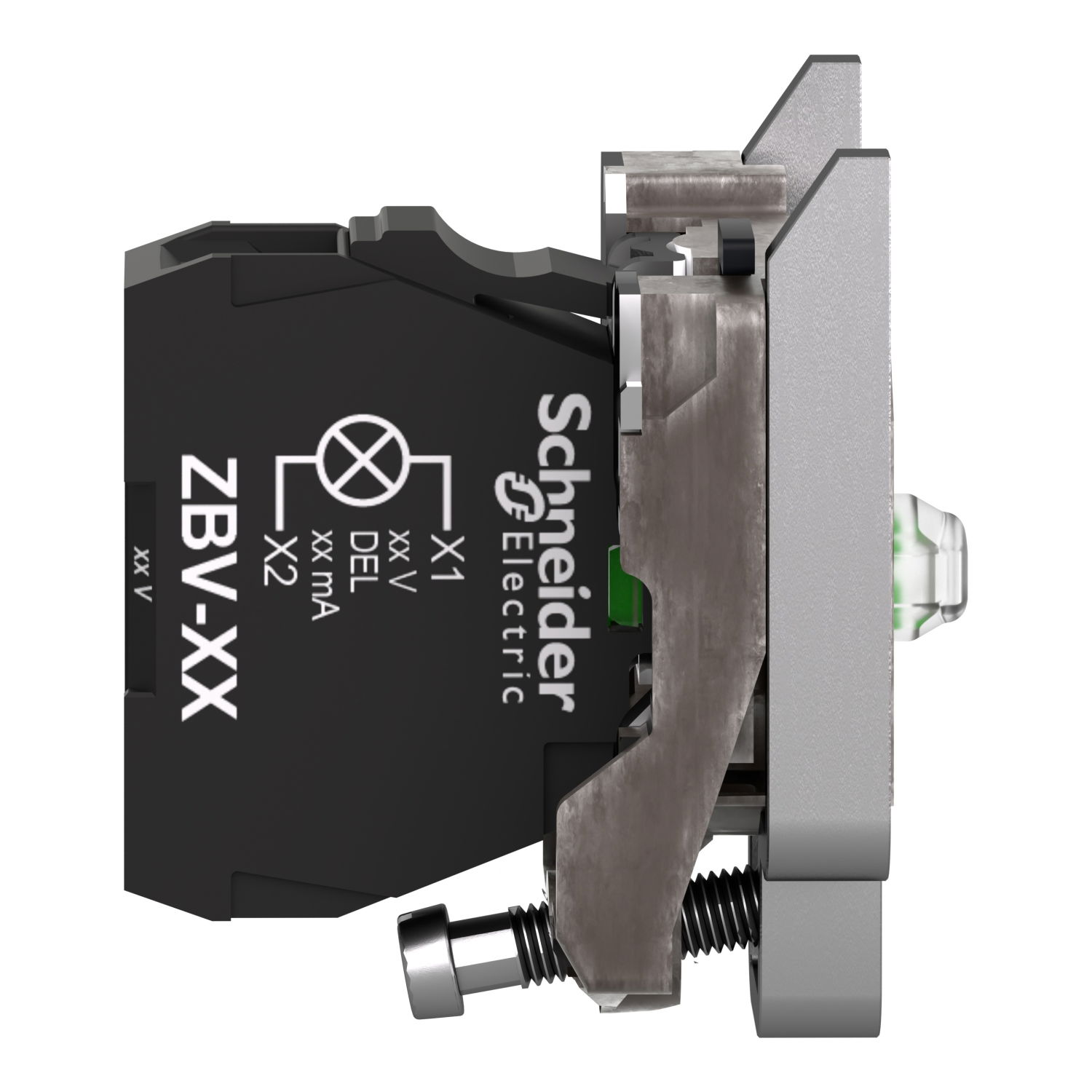

This Harmony XB4, light block with body/fixing collar is green, operates with an integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

Product identifiers

SKU: ZB4BVG3

EAN: 3389110892444

GTIN: 3389110892444

MPN: ZB4BVG3

Loyalty points: 2

Price: £ 13.80 Excl. VAT

Specifications

Lamp type	LED
Lamp holder	Other
Type of fastening	Front fastening
With light source	yes
Colour light source	Green
With integrated diode	yes
Rated voltage Ue at DC
Transformer integrated	no
Voltage type for actuating	AC
Rated voltage Ue at AC 50 Hz
Rated voltage Ue at AC 60 Hz
Connection type auxiliary circuit	Screw connection
With integrated voltage decreasing resistor	no
