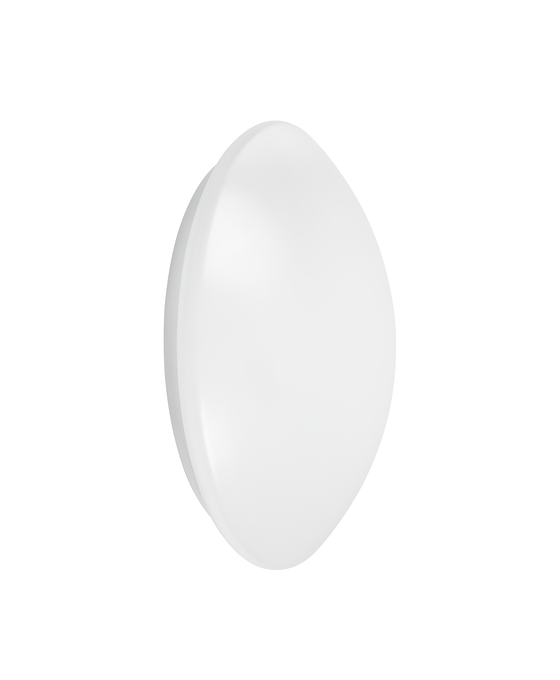

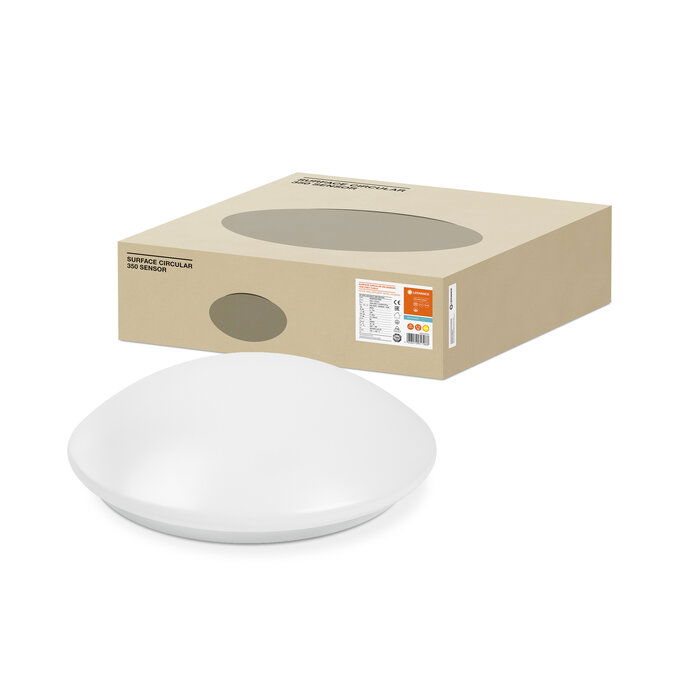

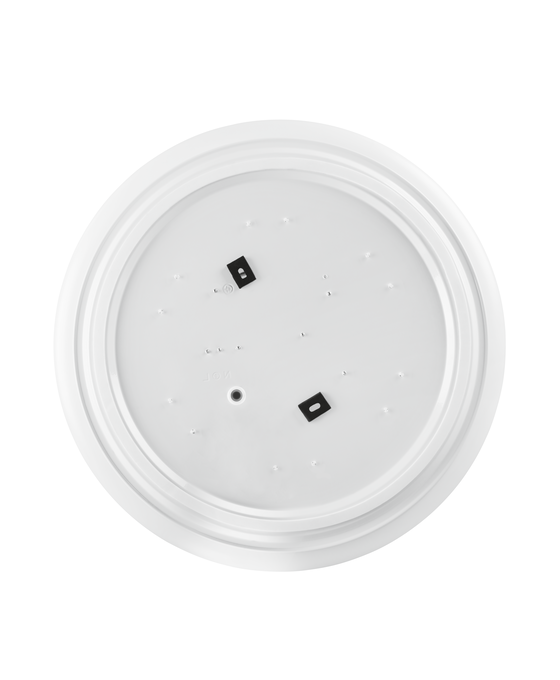

SF CIRC 350 SEN V 18W 830 IP44

SF CIRC 350 SEN V 18W 830 IP44 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £57.05 excl. VAT.

Product benefits

Easy adjustment of sensor range, daylight detection and hold time
Indoor luminaire with high luminous efficacy
Energy savings of up to 55 % compared to luminaires that use CFL
Easy and quick installation
Very homogenous light
3 years guarantee

Areas of application

Corridors
Stairways
Bathrooms
Foyers

Product features

High frequency sensor for daylight and motion detection
Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
Impact resistance: IK03
Metal housing, PMMA cover
Ambient temperature in operation: -20…+40 °C
Indoor use only, not suitable for outdoor use

Equipment / Accessories

Replacement cover optional available

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

For Guarantee see www.ledvance.com/guarantee

Product identifiers

SKU: 4058075617988

EAN: 4058075617988

GTIN: 4058075617988

MPN: 4058075617988

Price: £ 57.05 Excl. VAT

Specifications

Electrical data

Nominal wattage	18.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	140 mA
Inrush current	7 A
Inrush current time T h50	212 µs
Max. number of luminaires per miniature circuit breaker B16	78
Max. number of luminaires per miniature circuit breaker C10	49
Max. number of luminaires per miniature circuit breaker C16	94
Power factor λ	> 0.55
Total harmonic distortion	< 120 %
Protection class	I
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	1440 lm
Luminous efficacy	80 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 80
Standard deviation of color matching	< 6 sdcm
Luminous intensity	-
Low flicker	Yes
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	120 °

Materials & Colors

Product color	White
Housing color	White
Body material	Steel
Cover material	Polymethylmethacrylate (PMMA)
Light emitting surface material	PMMA
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Terminal, 3-pin
Type of protection	IP44 1)
Protection class IK (shock resistance)	IK03
Dimmable	No
Mounting type	Surface
Mounting location	Ceiling; Wall
Application environment	Indoor
With light source	Yes
Replaceable light source	No

Sensor

Type of sensor	Motion; Light
Sensor technology	Microwave
Sensor detection angle	120 °
Sensor controlled switching time	5 s…30 min
Detection range of motion sensor	4…7 m
Detection threshold of daylight sensor	2…50 lx
Sensor IP rating	IP44
