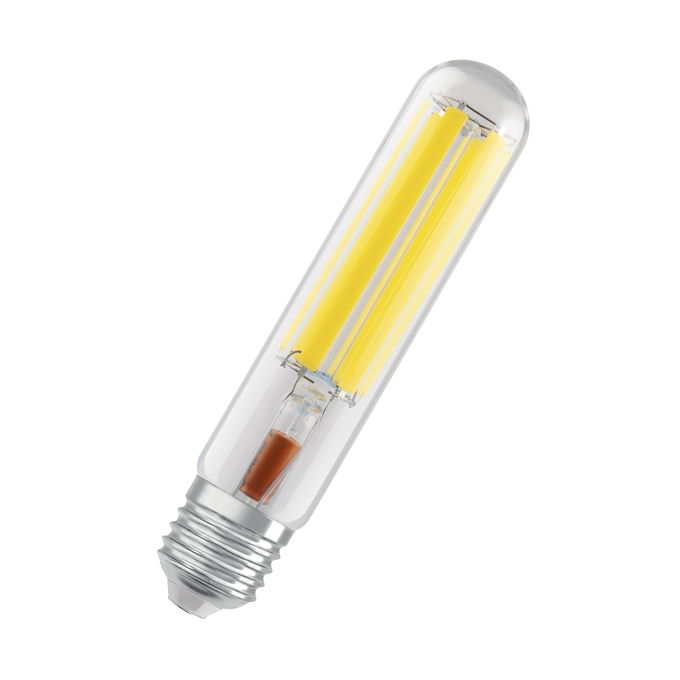

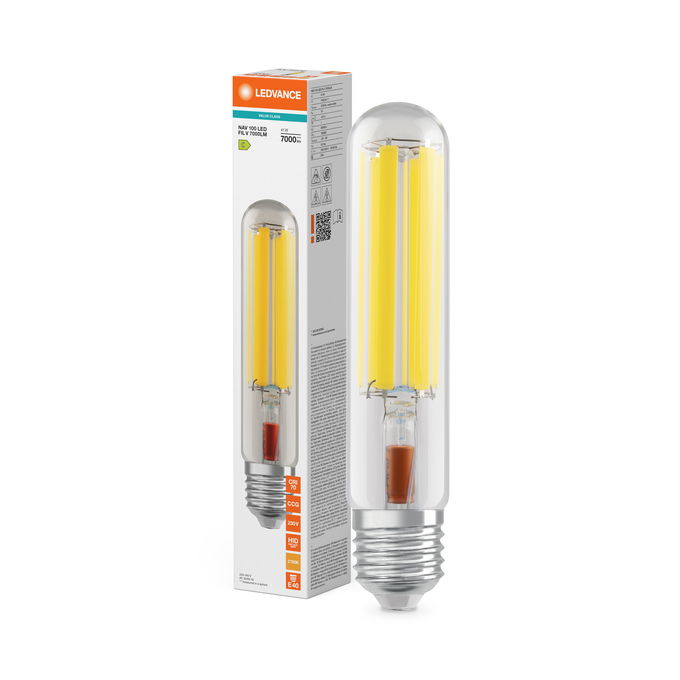

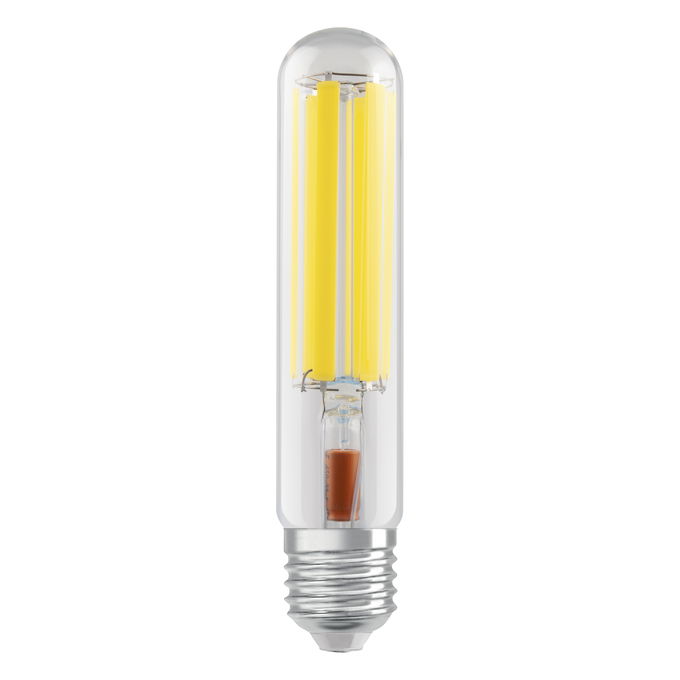

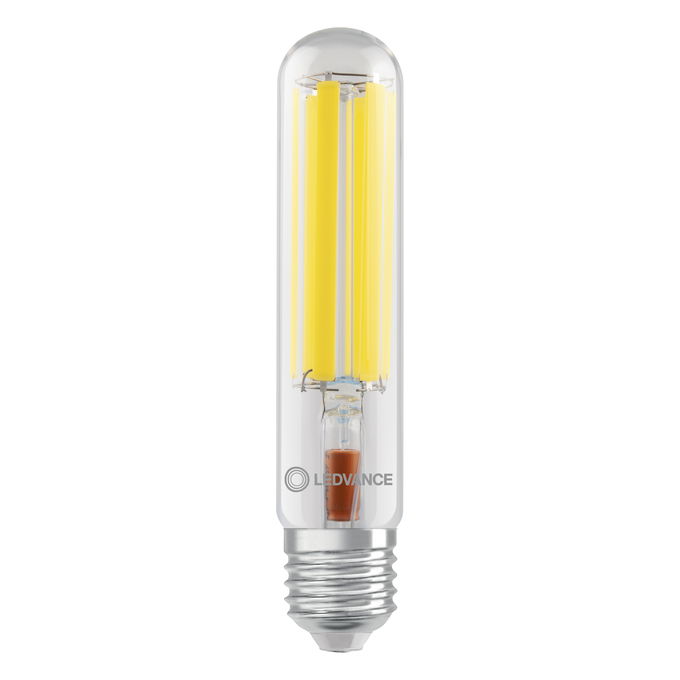

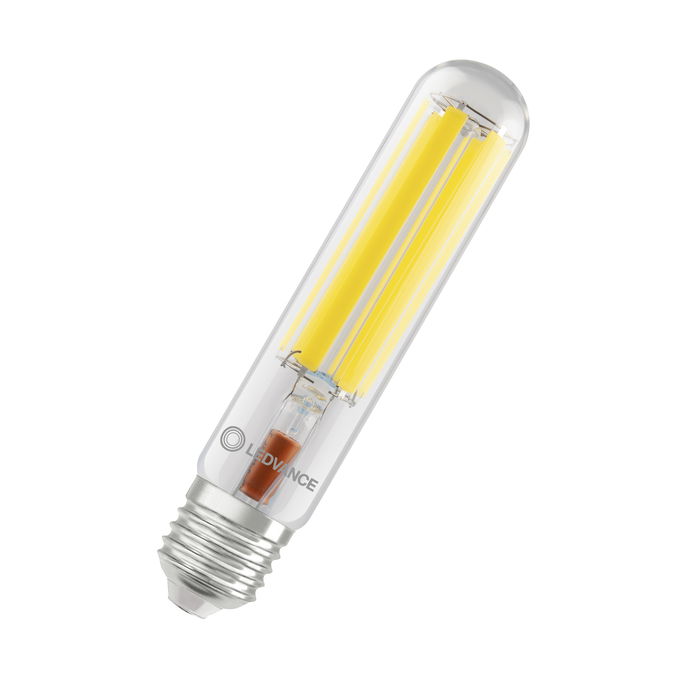

NAV 100 LED FILAMENT VALUE 7000LM 41W 727 E40
1 / 5
NAV 100 LED FILAMENT VALUE 7000LM 41W 727 E40
NAV 100 LED FILAMENT VALUE 7000LM 41W 727 E40 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £31.81 excl. VAT.
Product benefits
- Same design as traditional NAV lamps with clear, tubular full glass bulb
- Full use of reflector of existing luminaire thanks to 360 degree beam angle
- Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
- Instant 100 % light, no warm-up time
- Similar light distribution as traditional NAV lamps
Areas of application
- Streets
- Area lighting
- Pedestrian zones
- Parks
- Outdoor applications only in suitable luminaires
Product features
- Suitable for operation with conventional control gear (CCG) or 230 V AC mains
- Extremly high efficiency of 210 lm/W
- Power factor: 0.9
- Type of protection: IP65
- Surge protection: up to 2 kV (L-N)
- ENEC-certified safety
Safety advice
- Not suitable for operation with ignitors.
- Operation on the capacitor can lead to a reduction of the power factor of the system.
- When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
- Use in tight luminaires and luminaires with tight reflectors not recommended.
- Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
- All electrical connections must be made by a qualified person.
Product identifiers
SKU: 4099854072055
EAN: 4099854072055
GTIN: 4099854072055
MPN: 4099854072055
Price: £ 31.81 Excl. VAT
ETIM group
Specifications
Electrical data
| Nominal wattage | 41 W |
| Construction wattage | 41.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | CCG, AC Mains |
| Claimed equiv. conventional lamp power | 100 W |
| Nominal current | 175 mA |
| Type of current | AC |
| Inrush current | 9.1 A |
