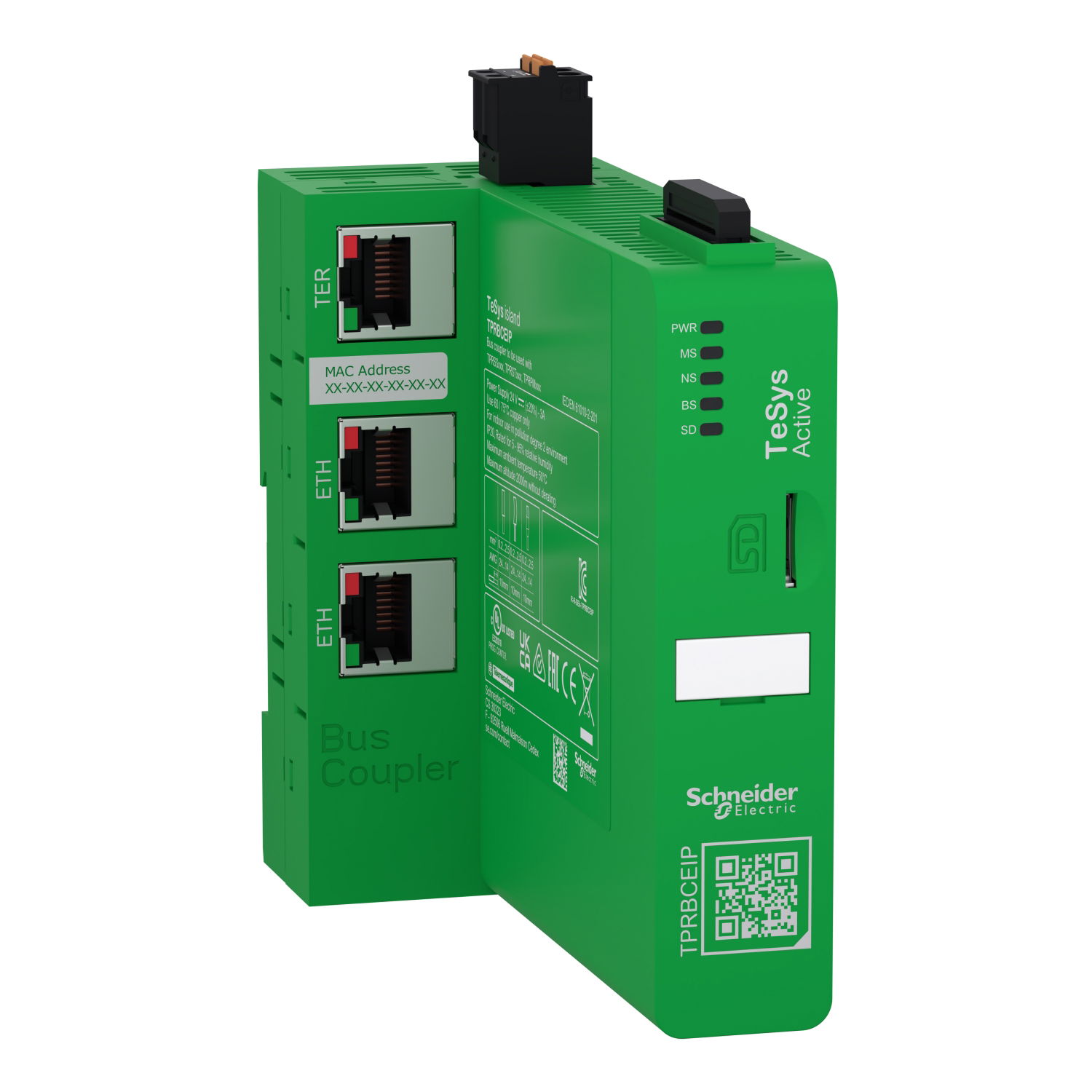

Bus coupler, TeSys island, Ethernet switch (EtherNet IP / Modbus TCP)
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over EtherNet/IP or Modbus TCP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for EtherNet/IP or Modbus TCP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified.
Product identifiers
SKU: TPRBCEIP
EAN: 3606489832704
GTIN: 3606489832704
MPN: TPRBCEIP
Loyalty points:
91
Price range: £ 135.75 - £ 201.11 Excl. VAT
Categories
Features
|
Depth
|
114 mm
|
|
Width
|
50 mm
|
|
Height
|
118 mm
|
|
IO link master
|
FALSE
|
|
System accessory
|
TRUE
|
|
Supply voltage DC
|
|
|
Radio standard GSM
|
FALSE
|
|
Radio standard LTE
|
FALSE
|
|
Radio standard GPRS
|
FALSE
|
|
Radio standard UMTS
|
FALSE
|
|
Radio standard eGPRS
|
FALSE
|
|
Rack-assembly possible
|
FALSE
|
|
Front built-in possible
|
FALSE
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Radio standard Bluetooth
|
FALSE
|
|
Degree of protection (IP)
|
IP20
|
|
With potential separation
|
TRUE
|
|
Radio standard WLAN 802.11
|
FALSE
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
TRUE
|
|
Number of HW-interfaces CAN
|
-
|
|
Number of HW-interfaces USB
|
-
|
|
Supporting protocol for ASI
|
FALSE
|
|
Supporting protocol for CAN
|
FALSE
|
|
Supporting protocol for KNX
|
FALSE
|
|
Supporting protocol for LON
|
FALSE
|
|
Number of HW-interfaces other
|
-
|
|
Number of interfaces PROFINET
|
-
|
|
Suitable for safety functions
|
FALSE
|
|
Voltage type (supply voltage)
|
DC
|
|
Wall mounting/direct mounting
|
FALSE
|
|
Number of HW-interfaces RS-232
|
-
|
|
Number of HW-interfaces RS-422
|
-
|
|
Number of HW-interfaces RS-485
|
-
|
|
Supporting protocol for Modbus
|
TRUE
|
|
Supporting protocol for SERCOS
|
FALSE
|
|
Supporting protocol for TCP/IP
|
TRUE
|
|
Supporting protocol for SUCONET
|
FALSE
|
|
Number of HW-interfaces parallel
|
-
|
|
Number of HW-interfaces wireless
|
-
|
|
Supporting protocol for EtherCAT
|
TRUE
|
|
Supporting protocol for INTERBUS
|
FALSE
|
|
Supporting protocol for PROFIBUS
|
FALSE
|
|
Appendant operation agent (Ex ia)
|
FALSE
|
|
Appendant operation agent (Ex ib)
|
FALSE
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
FALSE
|
|
Supporting protocol for PROFIsafe
|
FALSE
|
|
Explosion safety category for dust
|
None
|
|
Number of HW-interfaces serial TTY
|
-
|
|
Supporting protocol for EtherNet/IP
|
TRUE
|
|
Supporting protocol for PROFINET IO
|
FALSE
|
|
Supporting protocol for SafetyBUS p
|
FALSE
|
|
Supporting protocol for Data-Highway
|
FALSE
|
|
Supporting protocol for PROFINET CBA
|
FALSE
|
|
Supporting protocol for INTERBUS-Safety
|
FALSE
|
|
Supporting protocol for DeviceNet Safety
|
FALSE
|
|
Supporting protocol for other bus systems
|
TRUE
|
|
Certified for UL hazardous location class I
|
-
|
|
Number of HW-interfaces industrial Ethernet
|
-
|
|
Supporting protocol for Foundation Fieldbus
|
FALSE
|
|
Certified for UL hazardous location class II
|
-
|
|
Certified for UL hazardous location class III
|
-
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Certified for UL hazardous location division 1
|
-
|
|
Certified for UL hazardous location division 2
|
-
|
|
Supporting protocol for AS-Interface Safety at Work
|
FALSE
|
|
Certified for UL hazardous location group D (propane)
|
-
|
|
Certified for UL hazardous location group B (hydrogen)
|
-
|
|
Certified for UL hazardous location group C (ethylene)
|
-
|
|
Fieldbus connection over separate bus coupler possible
|
FALSE
|
|
Certified for UL hazardous location group A (acetylene)
|
-
|
|
Certified for UL hazardous location group E (metal dusts)
|
-
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
-
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
-
|
