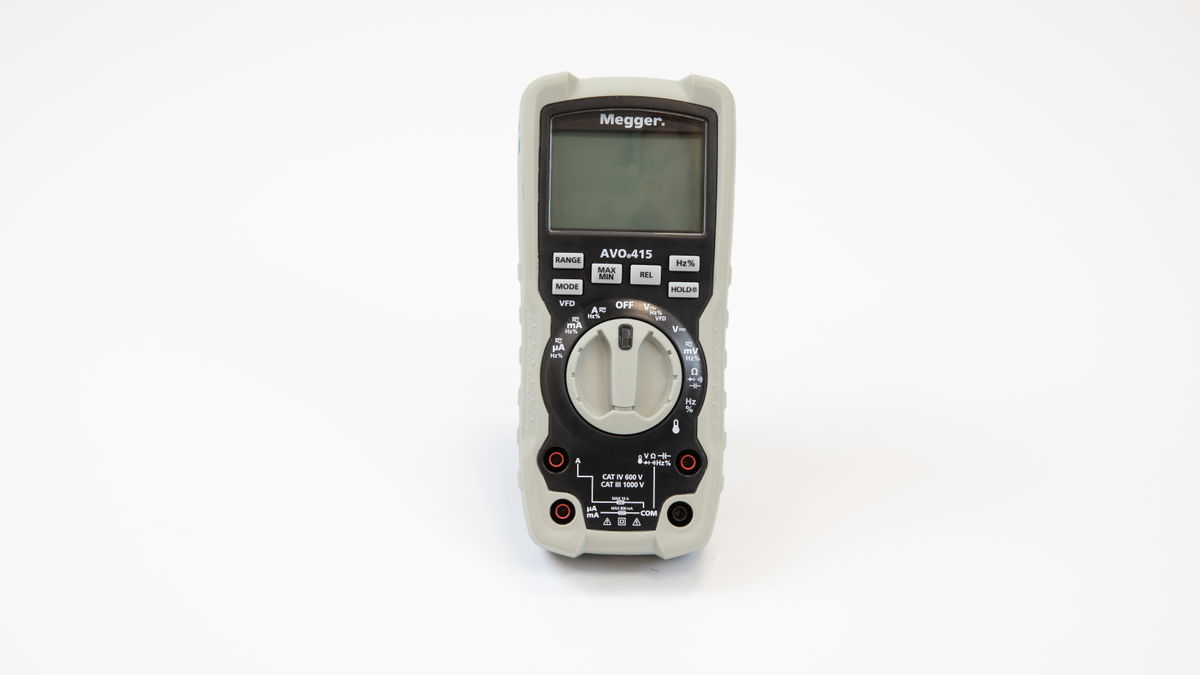

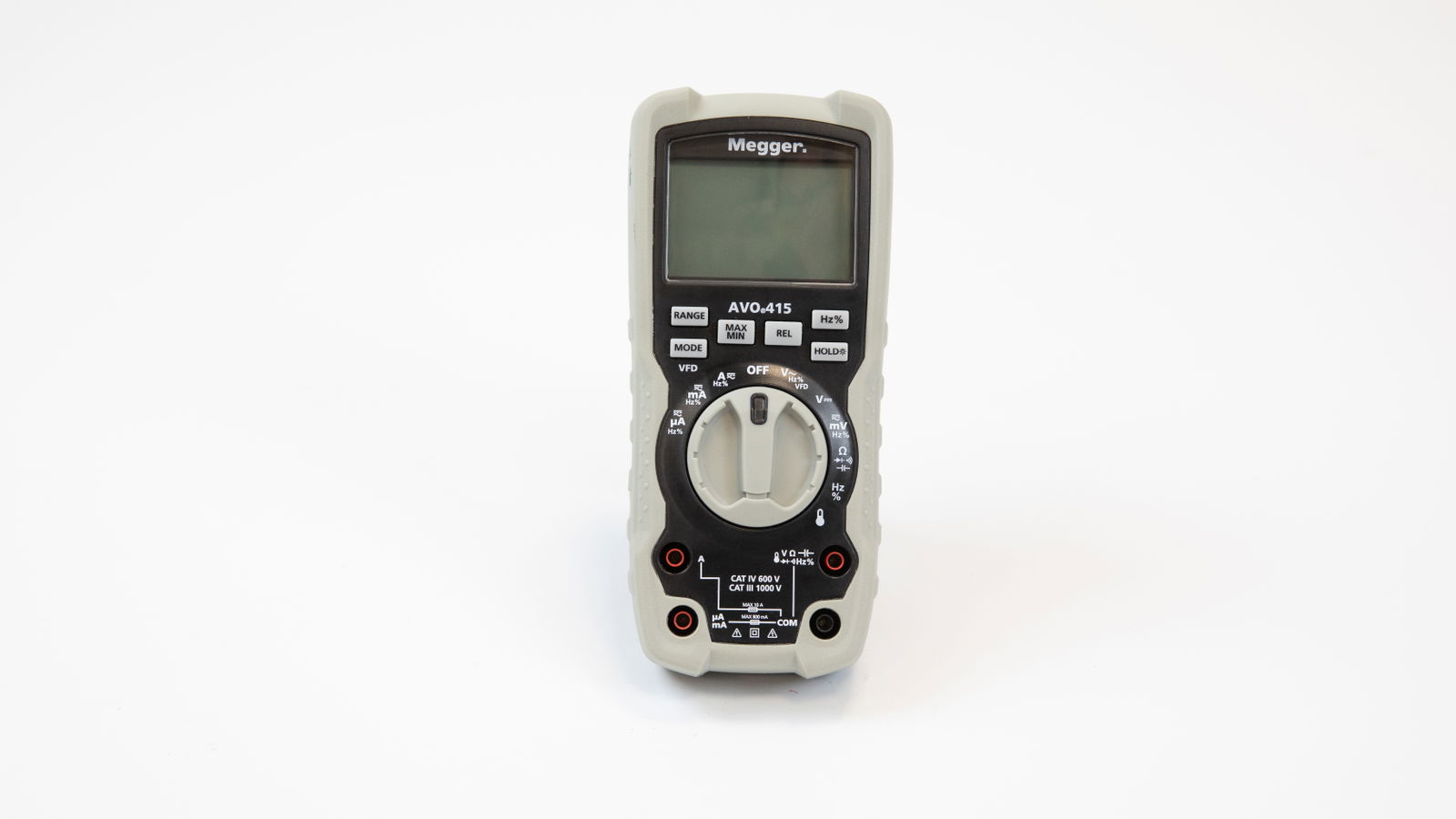

AVO415 CAT III/CAT IV TRMS MULTIMETER – Image 2 of 4

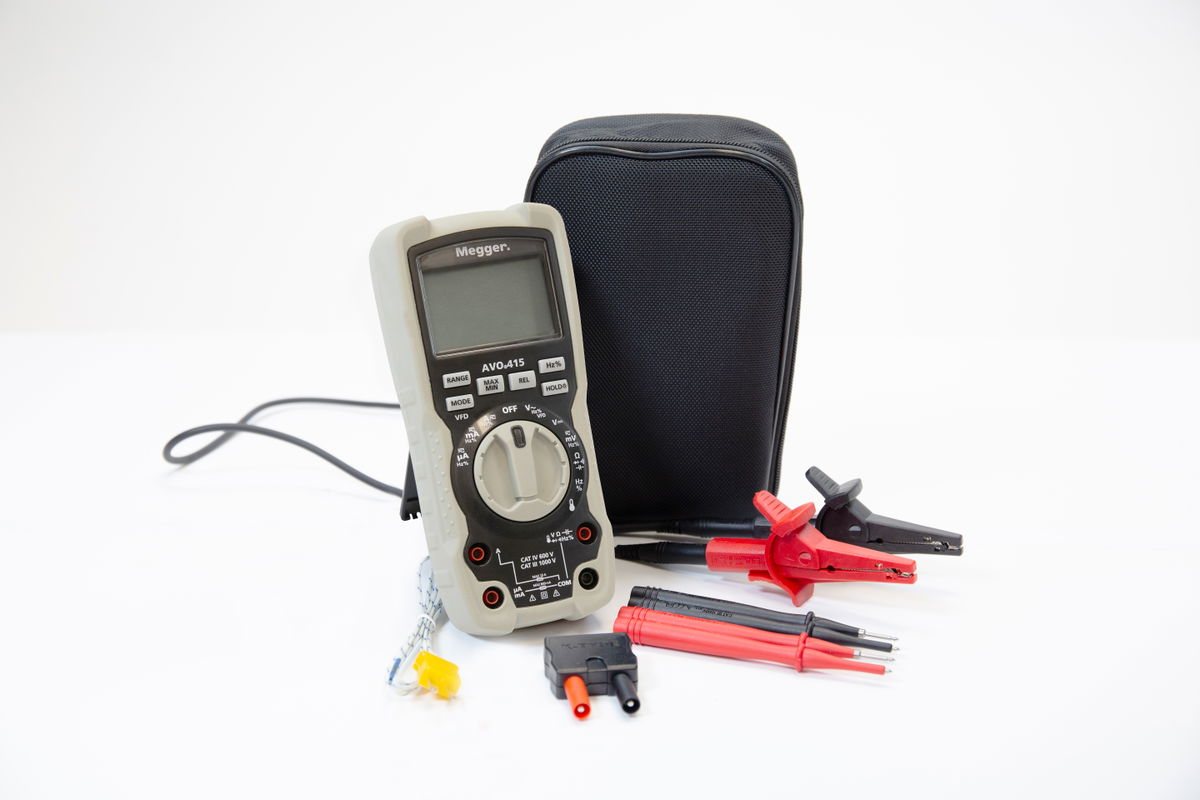

AVO415 CAT III/CAT IV TRMS MULTIMETER – Image 3 of 4

AVO415 CAT III/CAT IV TRMS MULTIMETER – Image 4 of 4

1 / 4

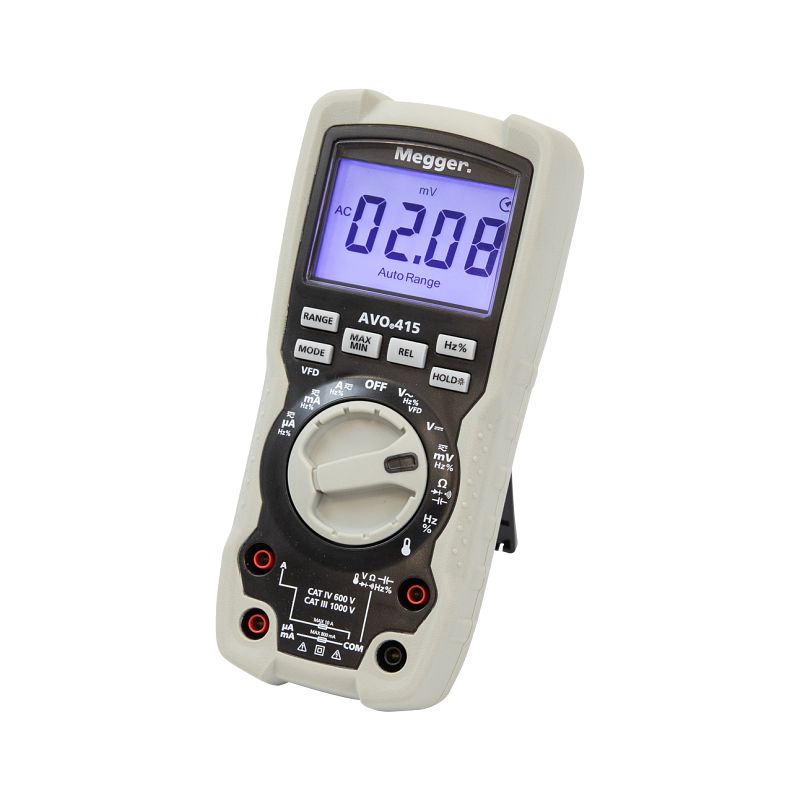

AVO415 CAT III/CAT IV TRMS MULTIMETER

Link copied

SKU
EAN
GTIN
MPN

AVO415 CAT III/CAT IV TRMS MULTIMETER by Megger is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £180.38 excl. VAT.

AVO415 CATIII 1000V / CAT IV 600V Digital multimeter with temperature and frequancy measurement

Price: £ 180.38 Excl. VAT

Specifications

Data hold	yes
Interface	no
Indication	Graphic
IR interface	no
Continuity test	yes
Multiple display	no
Peak value memory	yes
Max. value storage	yes
Min. value storage	yes
Bluetooth interface	no
True RMS measurement	yes
Frequency measurement	yes
Measured value memory	no
Inductance measurement	no
With display backlight	yes
Capacitance measurement	yes
Duty cycle measurements	yes
Temperature measurement	yes
Cable length measurement	no
Degree of protection (IP)	IP67
Measuring range selection	Manual/automatic
Analogue bar graph display	yes
Measuring circuit category	CAT IV
Resistance test/diode test	yes
Rotational speed measuring	no
Temperature measurement TC	yes
Lowest resolution, frequency	0.001 Hz
Power and energy measurement	no
Lowest resolution temperature	1 °C
Lowest resolution, AC current	0.1 µA
Lowest resolution, AC voltage	0.01 mV
Lowest resolution, DC current	0.1 µA
Lowest resolution, DC voltage	0.01 mV
Lowest resolution, resistance	0.1 Ohm
With conductivity measurement	yes
With decibel measurement (dB)	no
Lowest resolution, capacitance	0.001 µF
Max. frequency measuring range	9.999
Max. resistance measuring range	60
Harmonics analysis/power quality	no
Max. capacitance measuring range	10000
Max. current measuring range, AC	10
Max. current measuring range, DC	10
Max. temperature measuring range	1000
Max. voltage measuring range, AC	1000
Max. voltage measuring range, DC	1000
Max. voltage measuring circuit category	1000
Analogue bar graph display analogue/logarithmical	yes
Cable symmetry testing for two wire connections a-b-E	no
