NAV 50 LED FILAMENT VALUE 4000LM 21W 740 E27

1 / 5

NAV 50 LED FILAMENT VALUE 4000LM 21W 740 E27

NAV 50 LED FILAMENT VALUE 4000LM 21W 740 E27 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £18.89 excl. VAT.

Product benefits

Same design as traditional NAV lamps with clear, tubular full glass bulb
Full use of reflector of existing luminaire thanks to 360 degree beam angle
Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
Instant 100 % light, no warm-up time
Similar light distribution as traditional NAV lamps

Areas of application

Streets
Area lighting
Pedestrian zones
Parks
Outdoor applications only in suitable luminaires

Product features

Suitable for operation with conventional control gear (CCG) or 230 V AC mains
Extremly high efficiency of 210 lm/W
Power factor: 0.9
Type of protection: IP65
Surge protection: up to 2 kV (L-N)
ENEC-certified safety

Safety advice

Not suitable for operation with ignitors.
Operation on the capacitor can lead to a reduction of the power factor of the system.
When installed horizontally, the t_c point of the lamp is located on the top side of the lamp.
Use in tight luminaires and luminaires with tight reflectors not recommended.
Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
All electrical connections must be made by a qualified person.

Product identifiers

SKU: 4099854071997

EAN: 4099854071997

GTIN: 4099854071997

MPN: 4099854071997

Price: £ 18.89 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Capabilities

Dimmable

Electrical data

Nominal wattage	21 W
Construction wattage	21.00 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Claimed equiv. conventional lamp power	50 W
Nominal current	90 mA
Type of current	AC
Inrush current	6.3 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	22
Max. lamp number on MCB B10 A - CCG without compensation	27
Max. lamp number on MCB B10 A - CCG with compensation	8
Max. lamp number on MCB B16 A	27
Max. lamp number on MCB B16 A - CCG without compensation	34
Max. lamp number on MCB B16 A - CCG with compensation	13
Total harmonic distortion	15 %
Power factor λ	> 0.90
Surge capability (L-N)	2 kV

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

User instruction / safety instructions – NAV LED FILAMENT V

Open

Legal information – Informationstext 18 Abs 4 ElektroG

Open

Legal information – Safety Insert G11201307

Open

Declarations of conformity UKCA – HID LED FILAMENT

Open

EPD – ENVIRONMENTAL PRODUCT DECLARATION NAV LED FILAMENT VALUE

Open

Product Images And Graphics

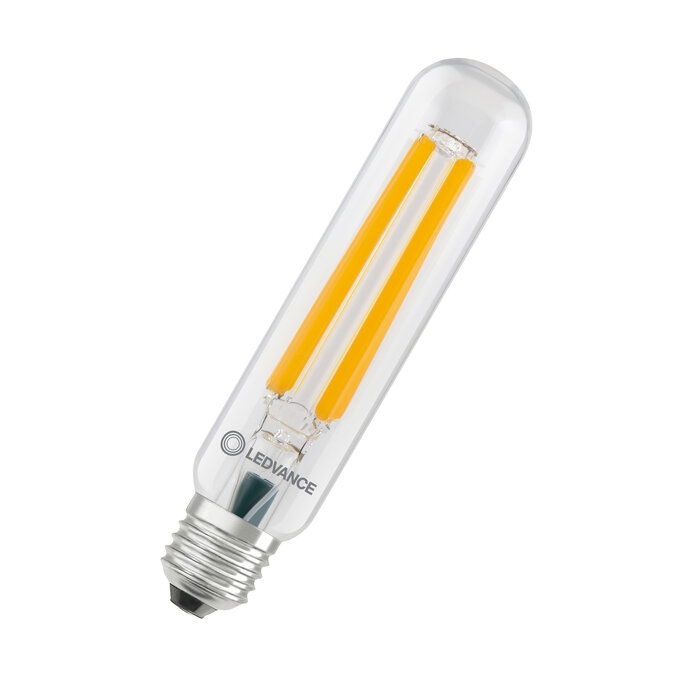

Product image: white background, diagonal with LEDVANCE logo – NAV 50 LED FIL 21W

Open

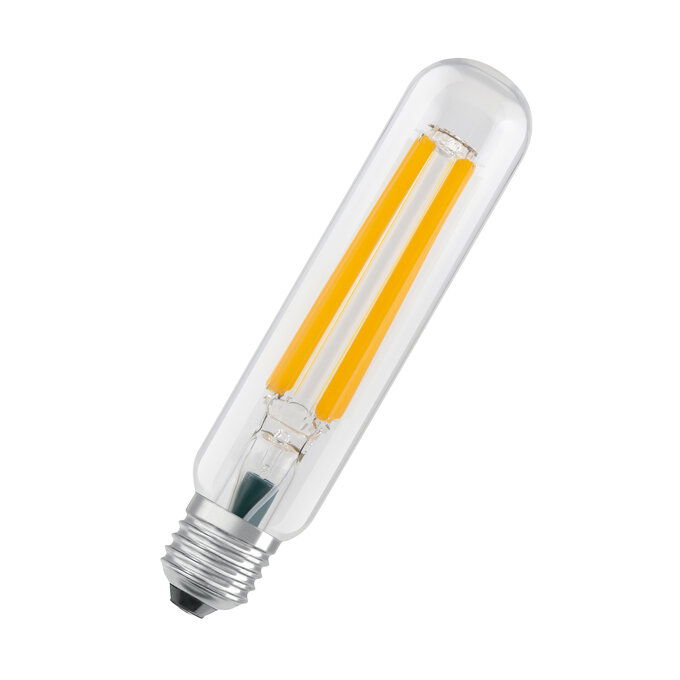

Product image: white background, diagonal – NAV 50 LED FIL V 21W

Open

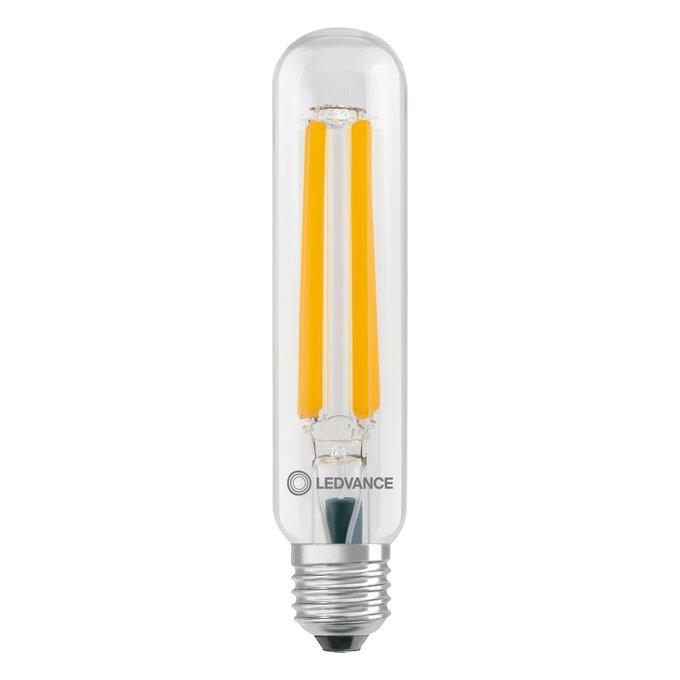

Product image: white background, upright LEDVANCE logo – NAV 50 LED FIL 21W

Open

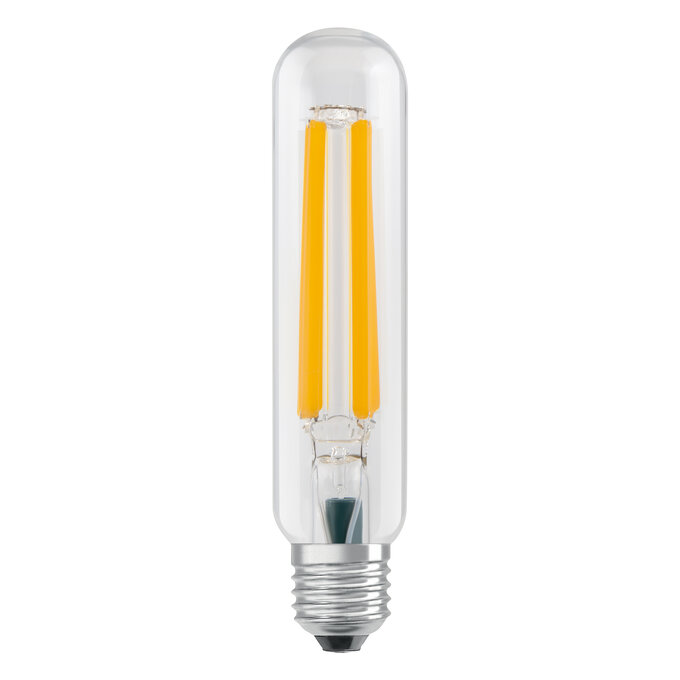

Product image: white background, upright – NAV 50 LED FIL V 21W

Open

Product line drawing with letters – NAV 50 LED FIL V 21W

Open

Product line drawing with numbers – NAV 50 LED FIL V 21W

Open

Product line drawing - technical – NAV 50 LED FIL V 21W

Open

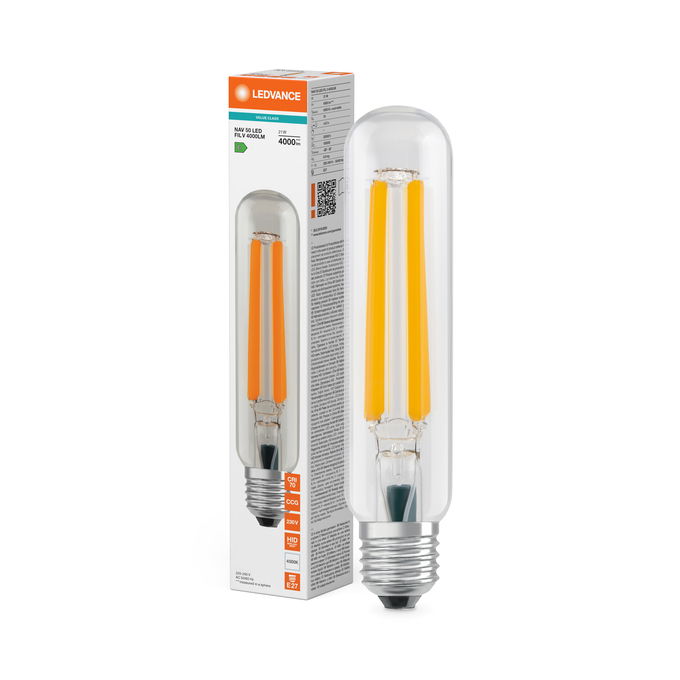

Combo Shot = Product Beauty Shot + Packaging Image – FC1 NAV 50 LED V 4000LM 21W 740 FIL E27

Open

Packaging image, frontal – FC1 NAV 50 LED V 4000LM 21W 740 FIL E27

Open

Packaging image, spacial – FC1 NAV 50 LED V 4000LM 21W 740 FIL E27

Open

Energy Label 2021 UK – EL-4099854071997-AC463 61

Open

Photometric And Lighting Design Files

Luminous flux	4000 lm
Nominal useful luminous flux 90°	4000 lm
Luminous efficacy	190 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	70
Light color	740
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1
Stroboscope effect metric (SVM)	0,4

Overall length	170.00 mm
Diameter	38.00 mm
Maximum diameter	38 mm
Product weight	80.00 g

Beam angle	360 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes

Energy efficiency class	B 1)
Energy consumption	21.00 kWh/1000h
Type of protection	IP65
Standards	CE; UKCA; EAC; ENEC
Photobiological safety group acc. to EN62778	RG1

NAV 50 LED FILAMENT VALUE 4000LM 21W 740 E27

Product benefits

Areas of application

Product features

Safety advice

Categories

ETIM group

Specifications

Documents

Ambient temperature range	-20…+50 °C 1)
Maximum temperature at tc test point	80 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Claim of equivalent power	No
Length	170.00 mm
Height	38.00 mm
Width	38.00 mm
Chromaticity coordinate x	0.382
Chromaticity coordinate y	0,38
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.9
LED light source replaces a fluorescent light source	No
EPREL ID	1371176
Model number	AC46361,AC46361,AC46361

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
