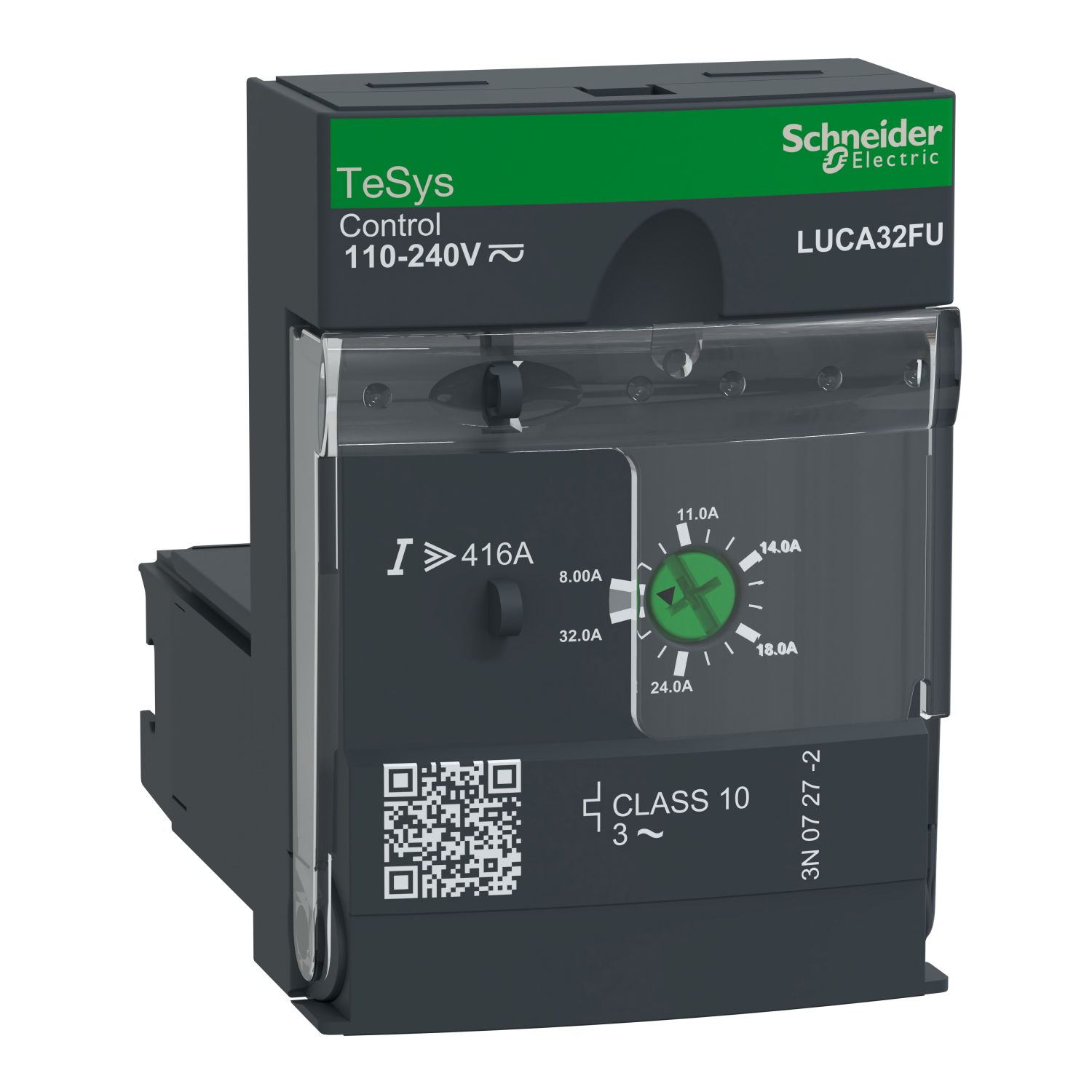

Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC

Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £60.39 to £150.34 excl. VAT. Voltimum+ members earn 18 points per unit.

TeSys U standard control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCA32FU
EAN: 3389110364057
GTIN: 3389110364057
MPN: LUCA32FU

Voltimum+ Loyalty Programme Loyalty points: 18

Price range: £ 60.39 - £ 150.34 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 60 mm
Width 45 mm
Height 66 mm
Number of poles 3
Supply voltage DC
Operating voltage DC
Rated switch current -
Supply voltage AC 50 Hz
Type of motor protection Thermal/magnetic release
Operating voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Short-circuit release function Undelayed
Voltage type (operating voltage) AC
Current setting delayed short-circuit release
Number of auxiliary contacts as change-over contact -
Number of auxiliary contacts as normally closed contact -
