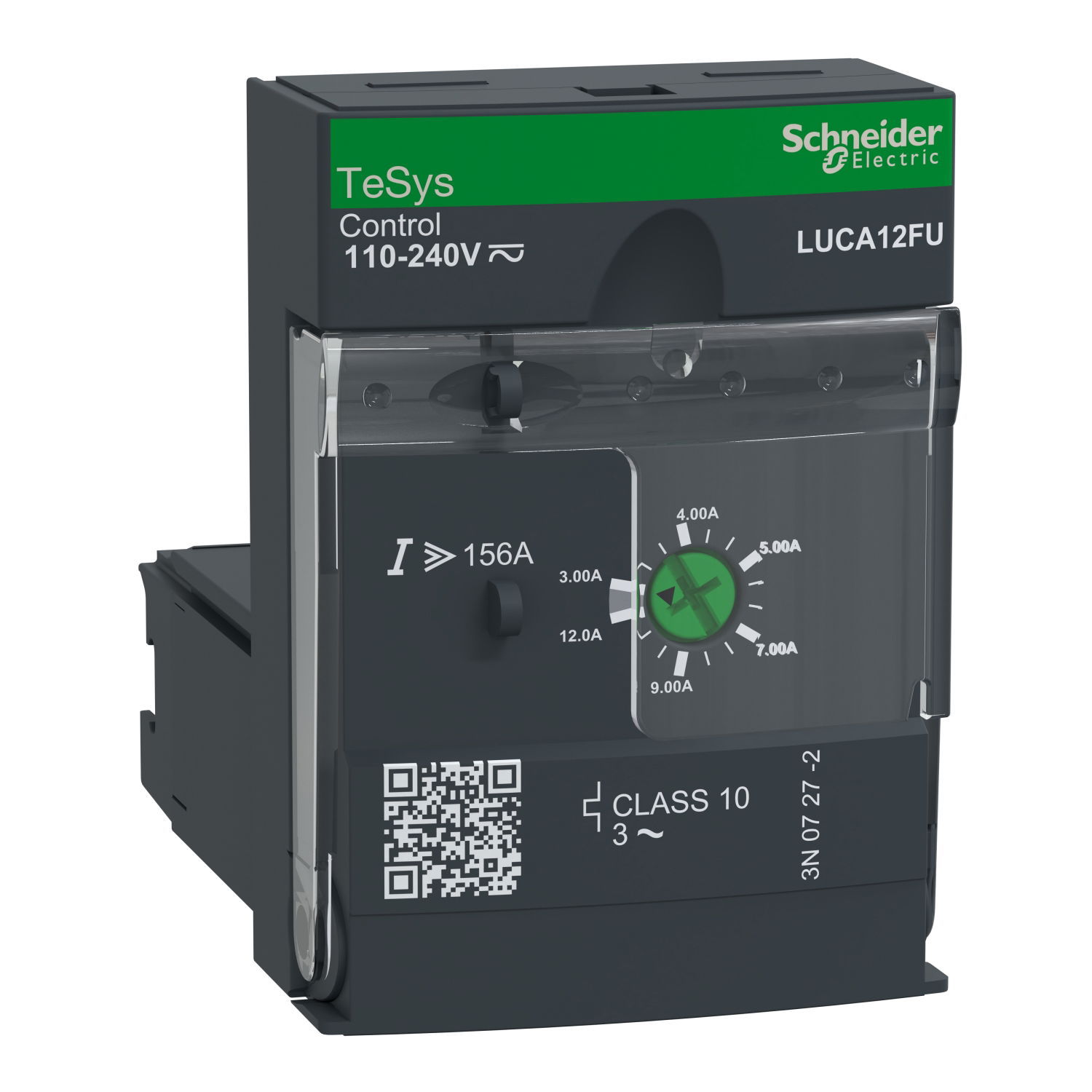

Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC
Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £41.92 to £92.96 excl. VAT. Voltimum+ members earn 11 points per unit.
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: LUCA12FU
EAN: 3389110364033
GTIN: 3389110364033
MPN: LUCA12FU
Loyalty points:
11
Price range: £ 41.92 - £ 92.96 Excl. VAT
ETIM group
Specifications
| Depth | 60 mm |
| Width | 45 mm |
| Height | 66 mm |
| Number of poles | 3 |
| Supply voltage DC | |
| Operating voltage DC | |
| Rated switch current | - |
| Supply voltage AC 50 Hz |
