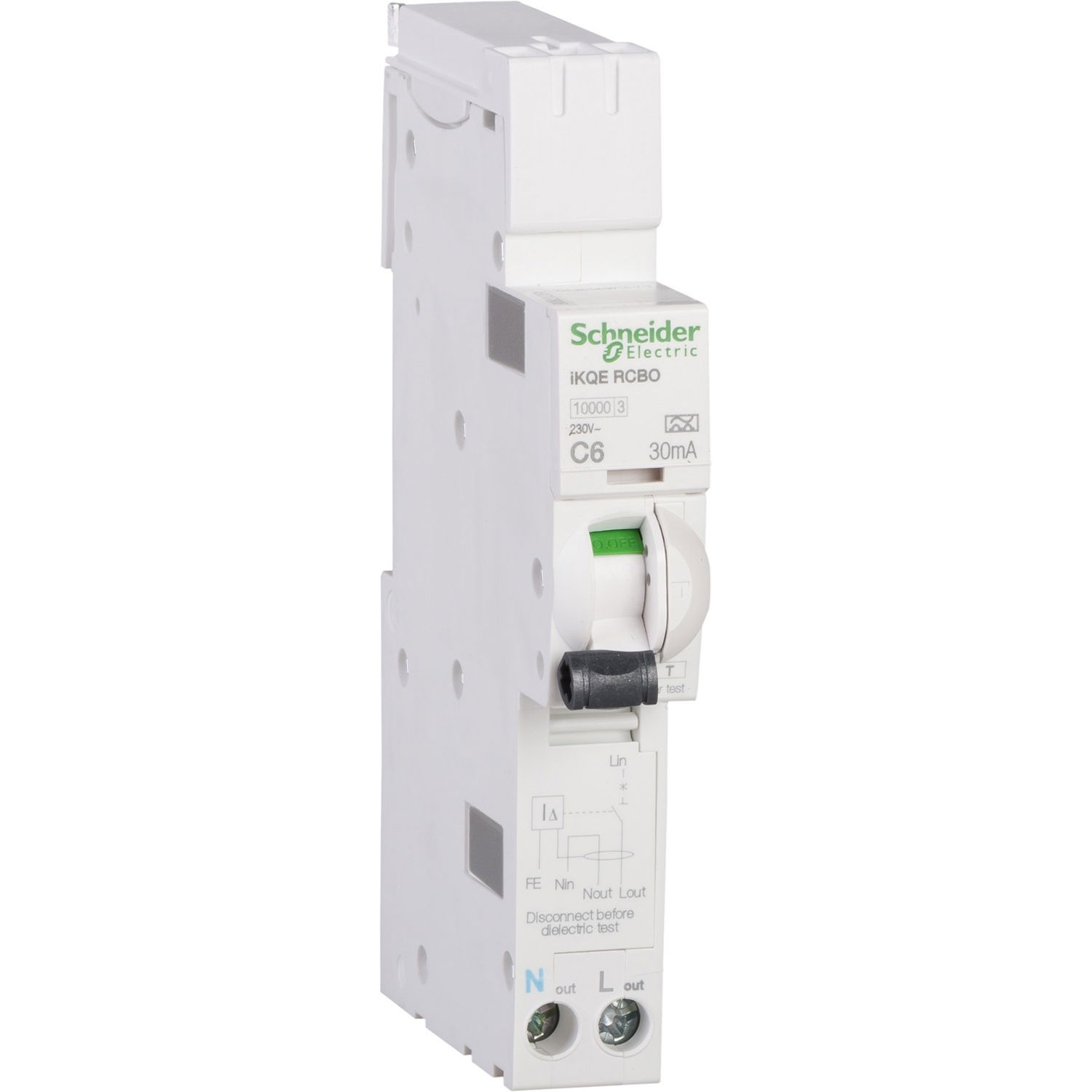

Acti9 - earth leakage circuit breaker - 1P + N - 6A - C - 30mA - 10000 A

3x points on the Schneider Electric KQ range

Acti9 - earth leakage circuit breaker - 1P + N - 6A - C - 30mA - 10000 A by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £51.01 excl. VAT. Voltimum+ members earn 34 points per unit.

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). Positive contact indication on toggle (guaranteed on/off indication) Lockable in the ON or OFF position Control type toggle Thermal-magnetic trip unit technology Instantaneous earth-leakage protection time delay Neutral position left Speed of connection of plug-On devices It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 150VAC to 230VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 55°C. The storage temperature is from -30°C to 70°C.

Product identifiers

SKU: SEE106C03
EAN: 5018934965581
GTIN: 5018934965581
MPN: SEE106C03

Voltimum+ Loyalty Programme Loyalty points: 102

Price: £ 51.01 Excl. VAT

Categories

RCBOs Circuit Breakers Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss -
Voltage type AC
Rated current 6 A
Rated voltage 230 V
Built-in depth 50 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 3
Release characteristic C
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 2
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA

Documents

Declaration of Conformity (Sustainability)

SEE106C03 REACh Regulation

Open

Instruction sheet

Instruction Sheet HRB11380

Open

Product data sheet

Open

Catalog

Light Commercial Power Distribution Catalogue

Open

Declaration of Conformity (Sustainability)

SEE106C03 EU RoHS Directive

Open

Declaration of conformity

EU Declaration of Conformity Schneider Electric

Open

Environmental Disclosure

iC60H RCBO 1PPNS 32A 10mA A 230V - Product Environmental Profile

Open

CAD

Open
