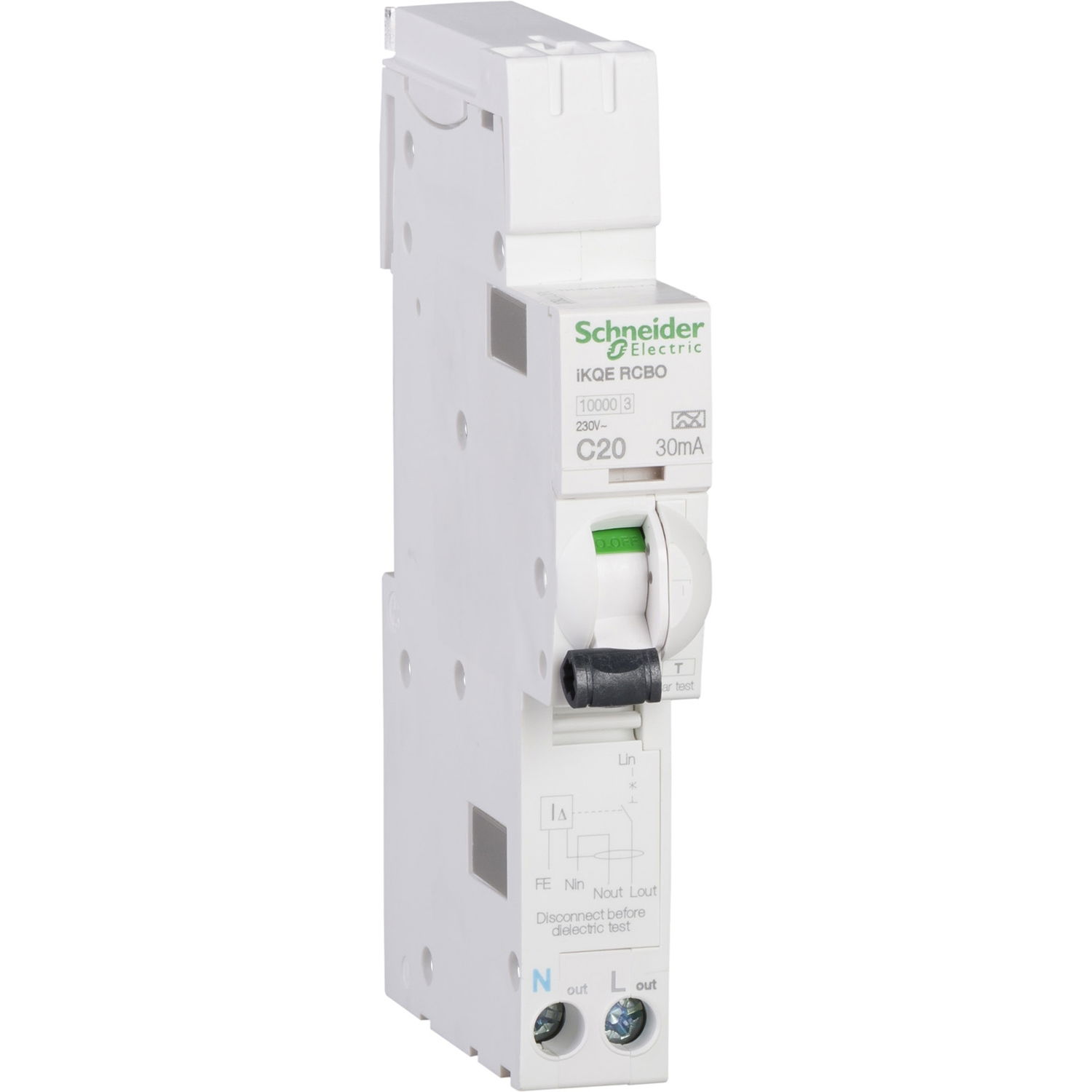

Acti9 - earth leakage circuit breaker - 1P + N - 20A - C - 30mA - 10000 A

3x points on the Schneider Electric KQ range

Acti9 - earth leakage circuit breaker - 1P + N - 20A - C - 30mA - 10000 A by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £51.01 to £147.21 excl. VAT. Voltimum+ members earn 34 points per unit.

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). Positive contact indication on toggle (guaranteed on/off indication) Lockable in the ON or OFF position Control type toggle Thermal-magnetic trip unit technology Instantaneous earth-leakage protection time delay Neutral position left Speed of connection of plug-On devices It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 150VAC to 230VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 55°C. The storage temperature is from -30°C to 70°C.

Product identifiers

SKU: SEE120C03
EAN: 5018934965611
GTIN: 5018934965611
MPN: SEE120C03

Voltimum+ Loyalty Programme Loyalty points: 102

Price range: £ 51.01 - £ 147.21 Excl. VAT

Categories

RCBOs Circuit Breakers Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss -
Voltage type AC
Rated current 20 A
Rated voltage 230 V
Built-in depth 50 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 3
Release characteristic C
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 2
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA
