TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals

1 / 2

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals

Name: TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals
Brand: Schneider Electric
SKU: LADR0
Availability: InStock

TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £58.00 to £94.49 excl. VAT. Voltimum+ members earn 12 points per unit.

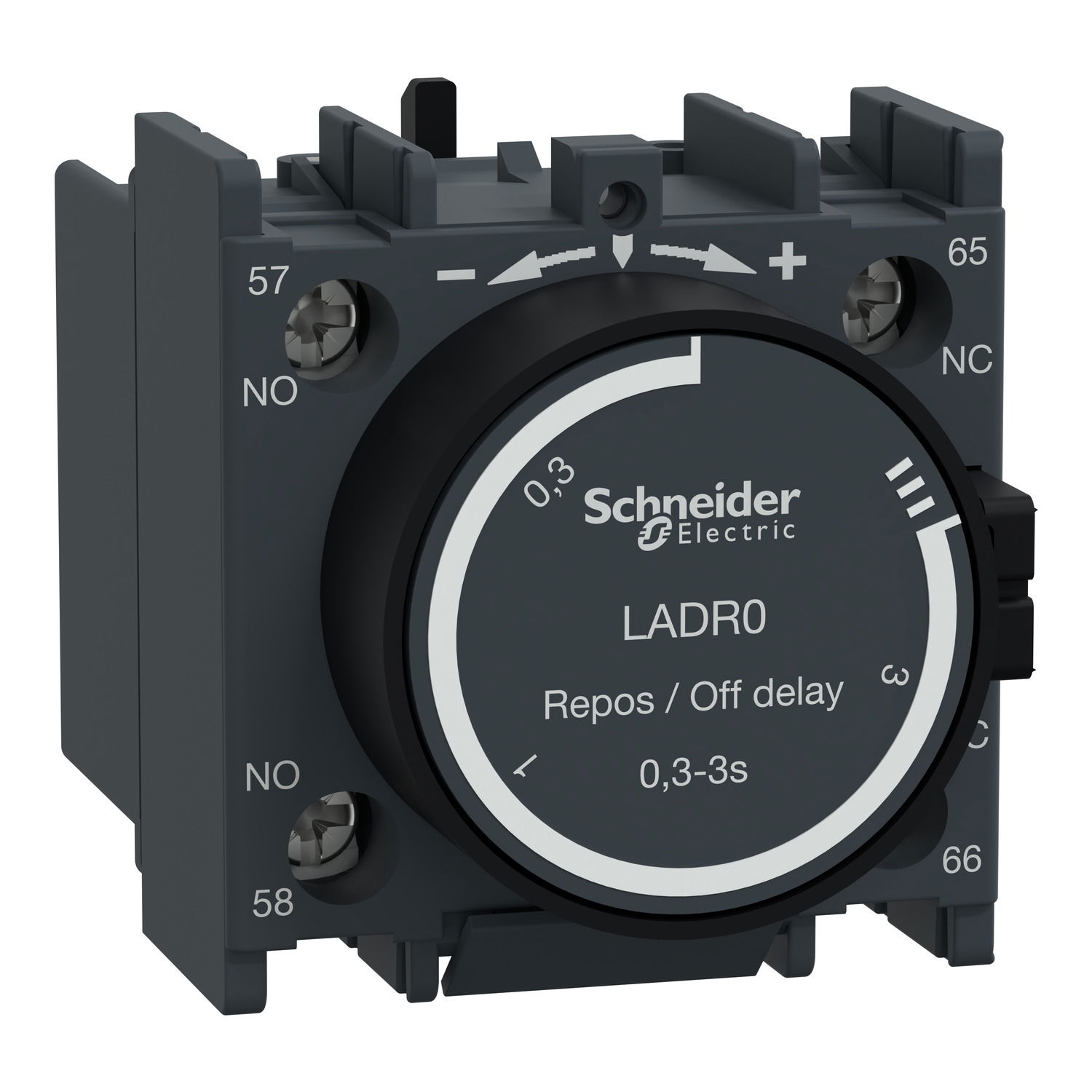

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 0.3-3s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.

Product identifiers

SKU: LADR0

EAN: 3389110386141

GTIN: 3389110386141

MPN: LADR0

Loyalty points: 12

Price range: £ 58.00 - £ 94.49 Excl. VAT

Specifications

Setting time
Switching function	Time-delay dropped out
Operating principle	Electronic
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
