Philips

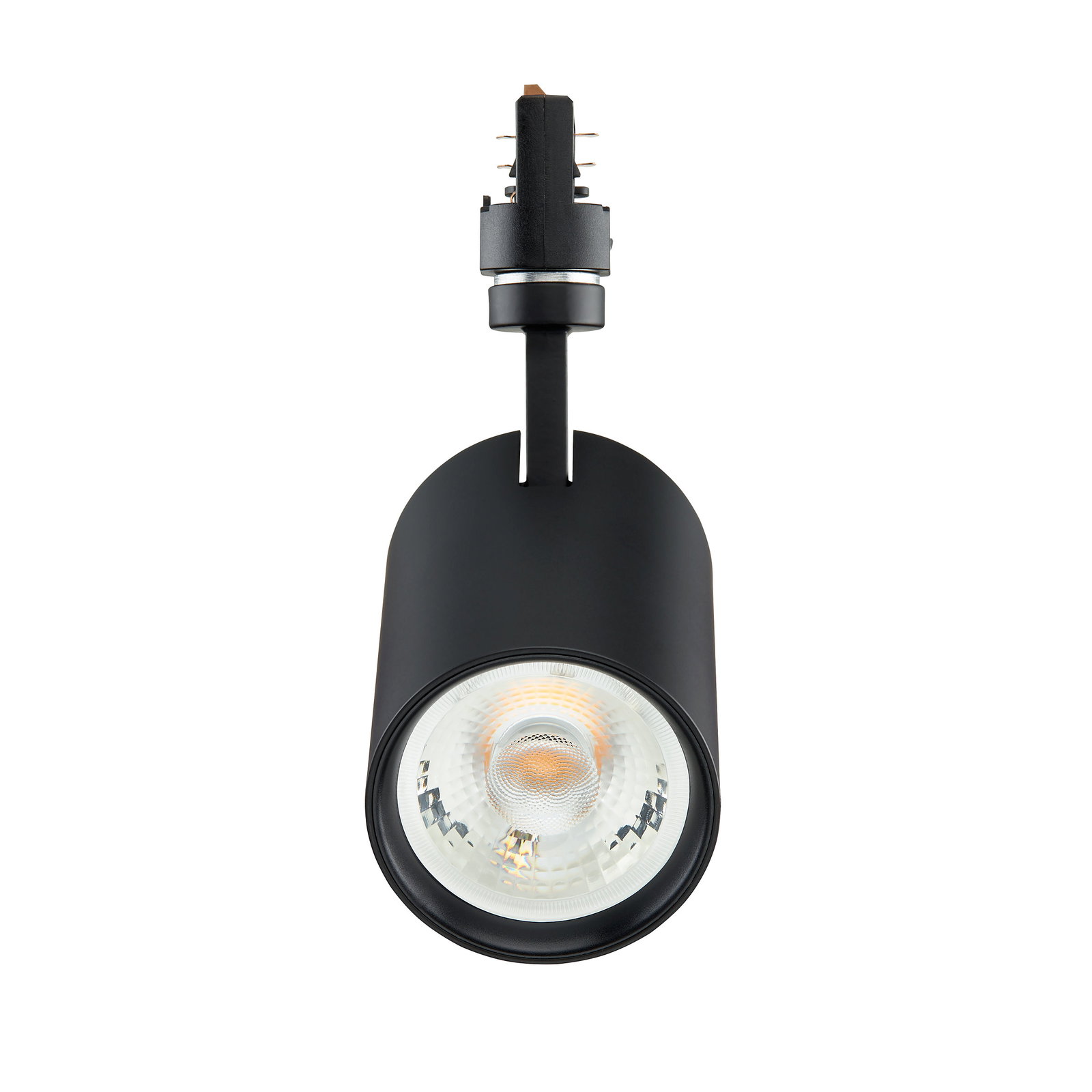

CoreLine Projector gen2, Track-mounted, 30 W, D80 mm, 3000 lm, 3000 K, CRI<gt/>90, Medium beam, Black

Track-mounted, D80 mm, Aluminium, Black, Power supply unit (On/Off), 3000 lm, 30 W, 100 lm/W, 3000 K, (0.4355, 0.4045) SDCM 4, CRI90, UGR19, Medium beam, Polycarbonate, IP20 | Finger-protected, IK03 | 0.3 J, Safety class I, 3C Track

Product identifiers

SKU: 911401846582

Price: £ 0.00 Excl. VAT

Categories

LED Lighting & Luminaires Luminaires Indoor Luminaires

Specifications

Cable -
CE mark Yes
Dimmable No
ENEC mark ENEC mark
Connection 3C Track
Optic type Medium beam
Inrush time 0.0115 ms
Input Voltage 220 to 240 V
Overall width 87 mm
Housing Colour Black
Line Frequency 50 or 60 Hz
Overall height 125 mm
Driver included Yes
Housing material Aluminium
EU RoHS compliant Yes
Flammability mark -
Power Consumption 30 W
Light source colour 930 warm white
Protection class IEC Safety class I
Ingress protection code IP20 | Finger-protected
Power Factor (Fraction) 0.9
Ambient temperature range -20 to +40 °C
Beam angle of light source 25 degree(s)
Luminaire light beam spread 25°
Power consumption tolerance +/-10%
Mech. impact protection code IK03 | 0.3 J
Driver/power unit/transformer Power supply unit (On/Off)
Suitable for random switching No
Correlated Colour Temperature (Nom) 3000 K
