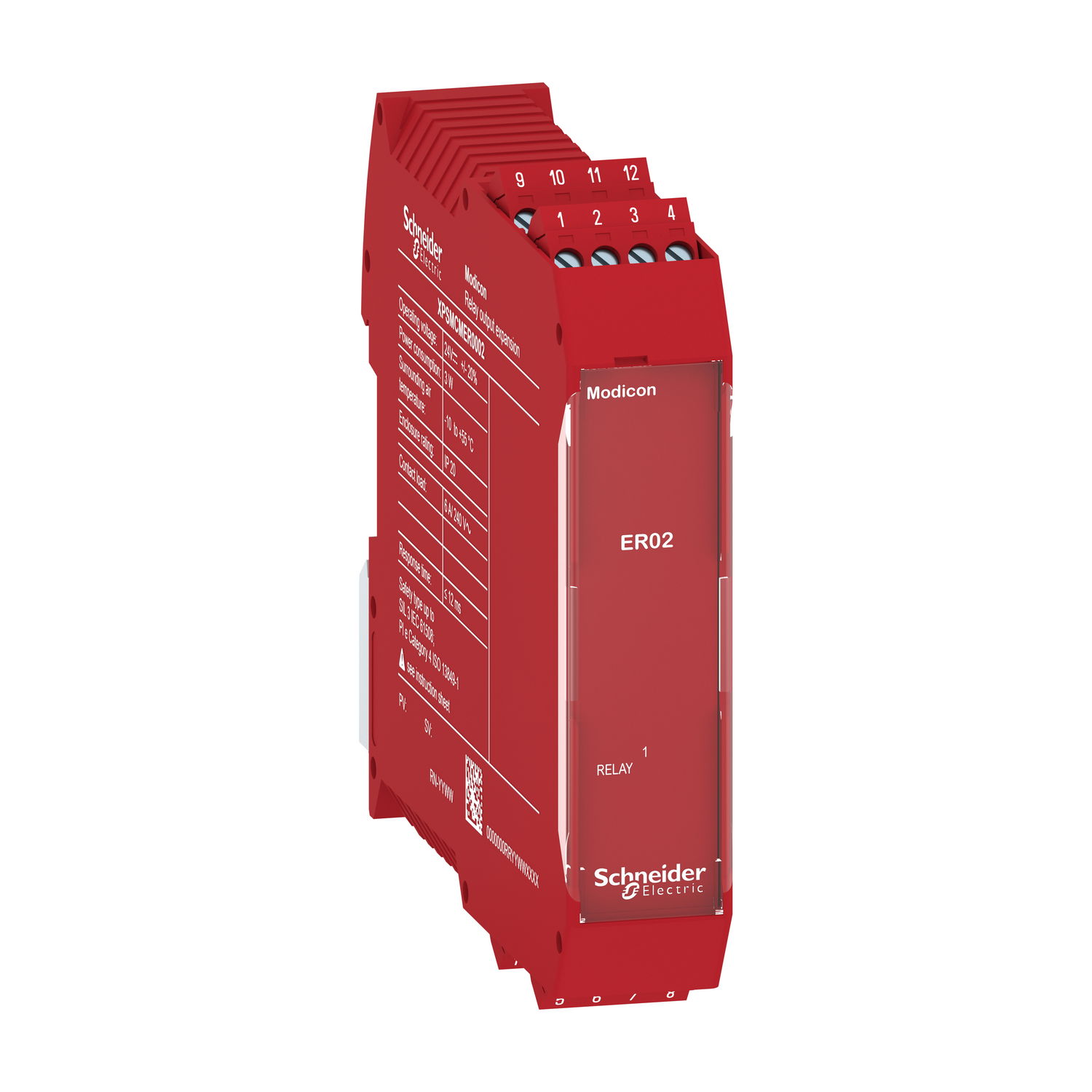

2 safety relay outputs expansion module with screw term

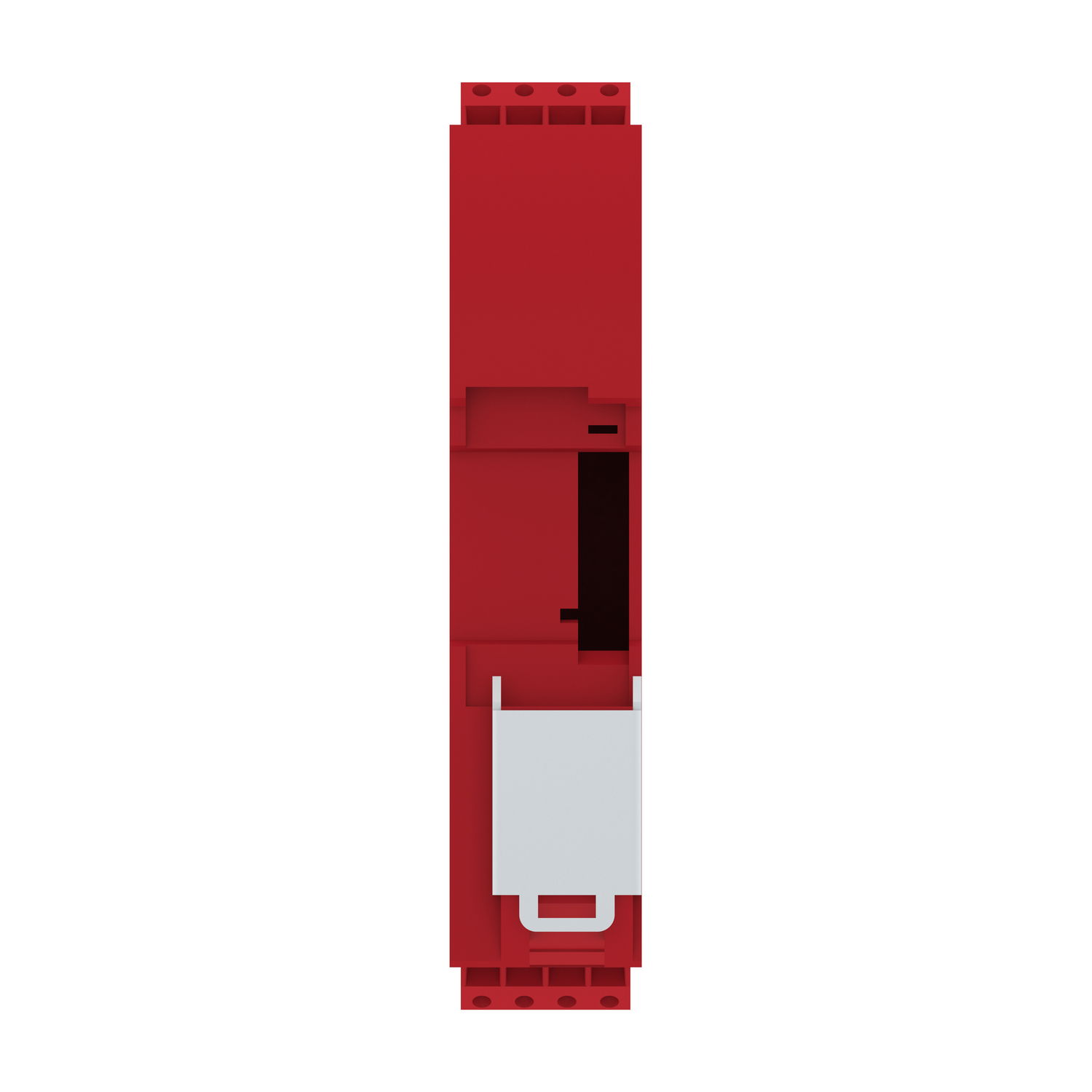

2 safety relay outputs expansion module with screw term – Image 2 of 7

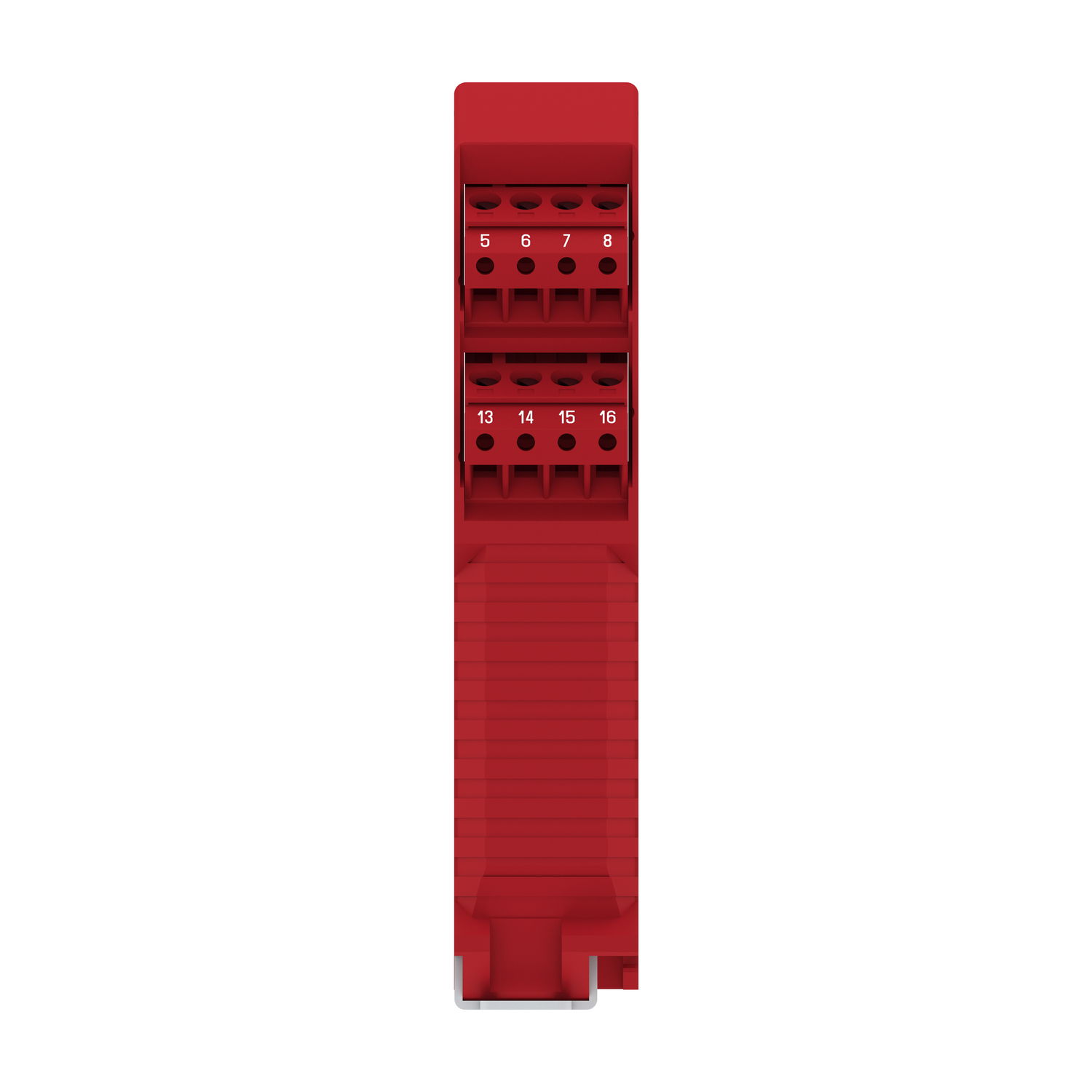

2 safety relay outputs expansion module with screw term – Image 3 of 7

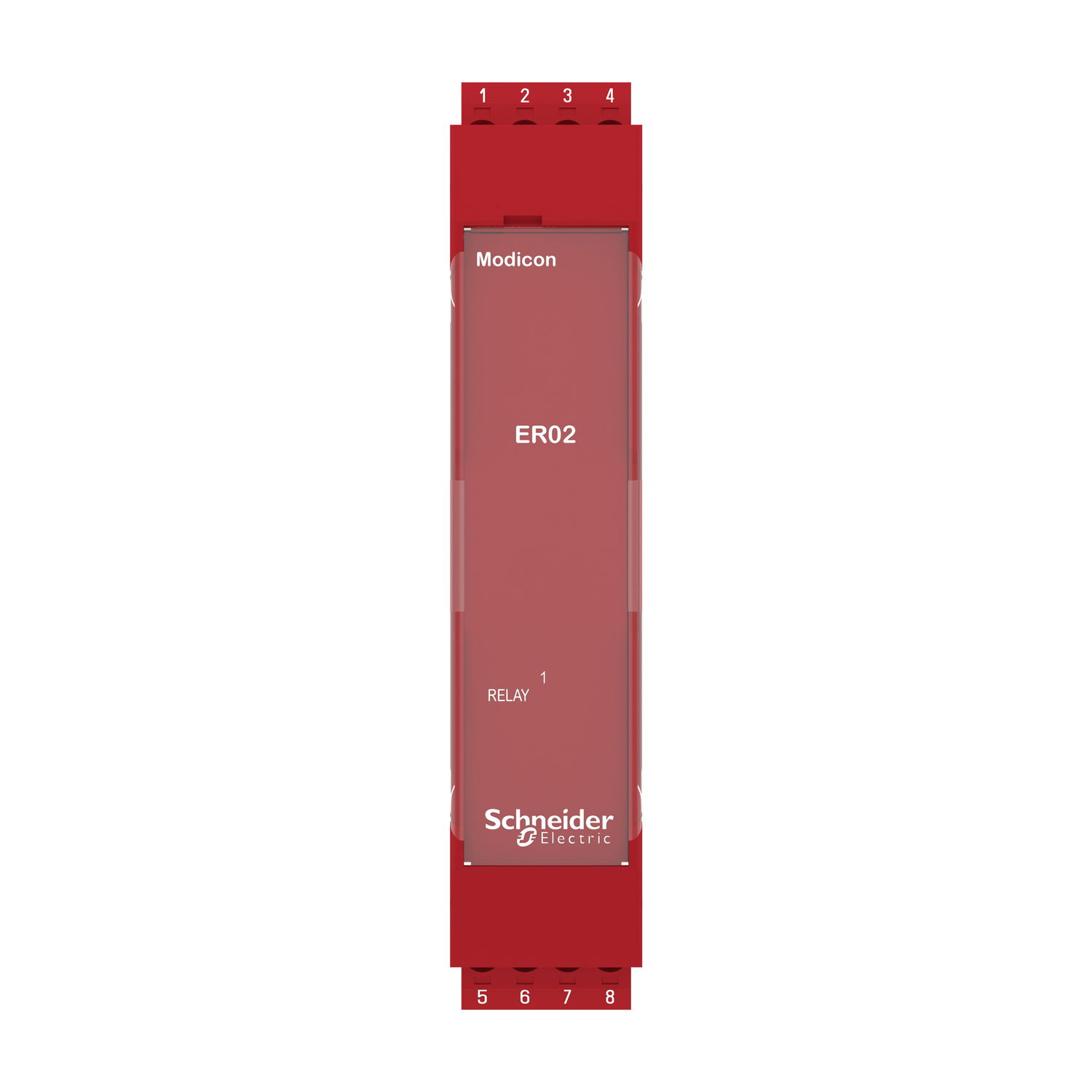

2 safety relay outputs expansion module with screw term – Image 4 of 7

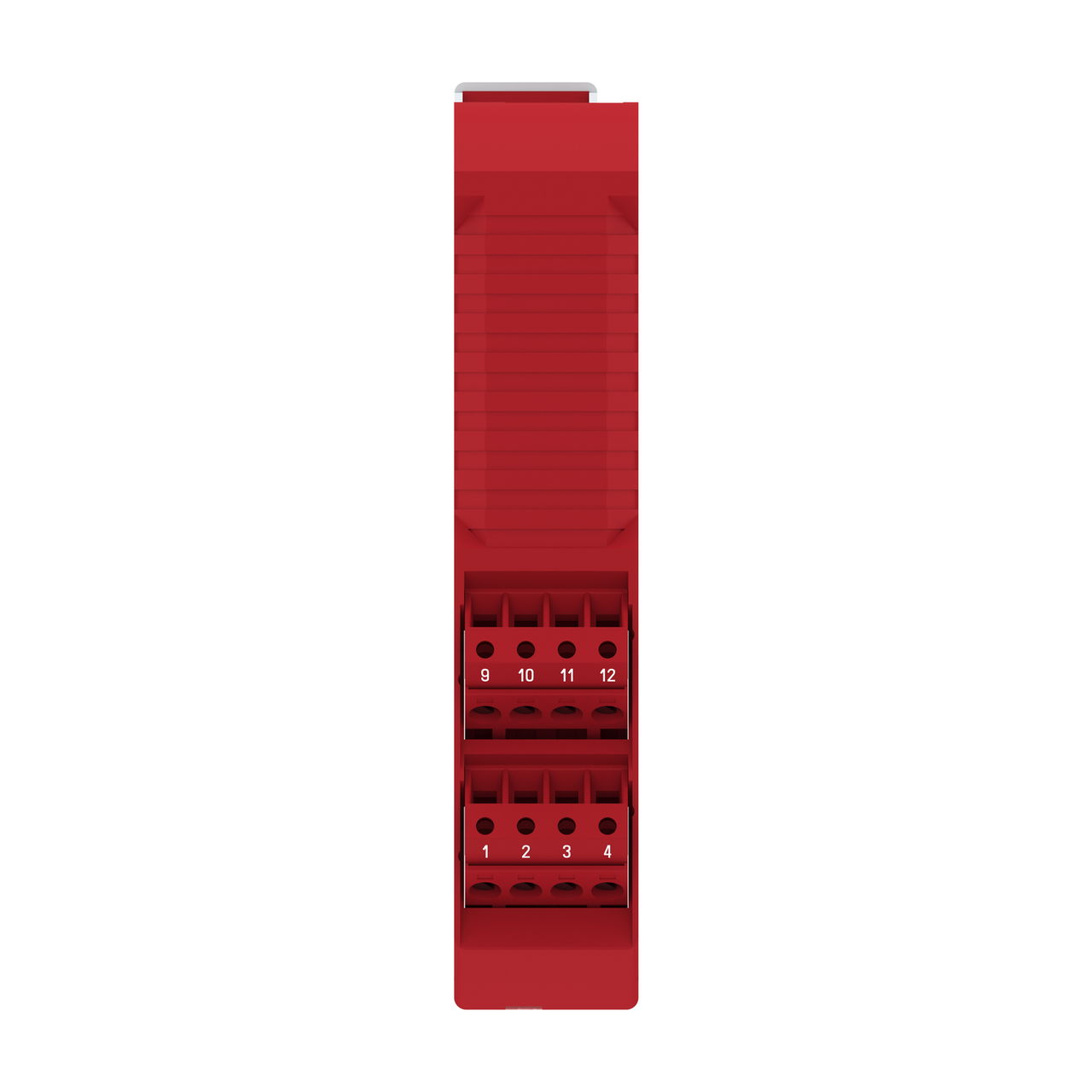

2 safety relay outputs expansion module with screw term – Image 5 of 7

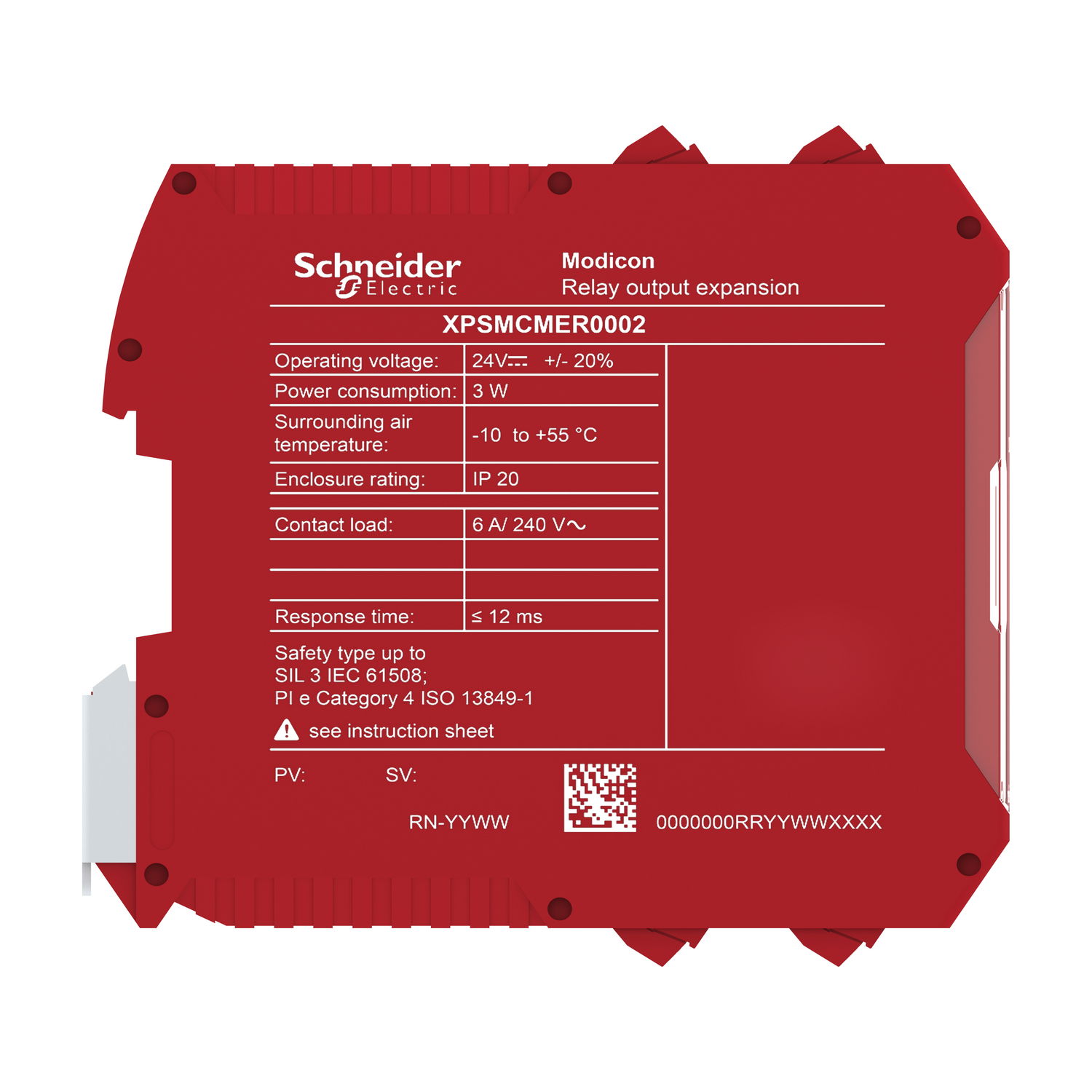

2 safety relay outputs expansion module with screw term – Image 6 of 7

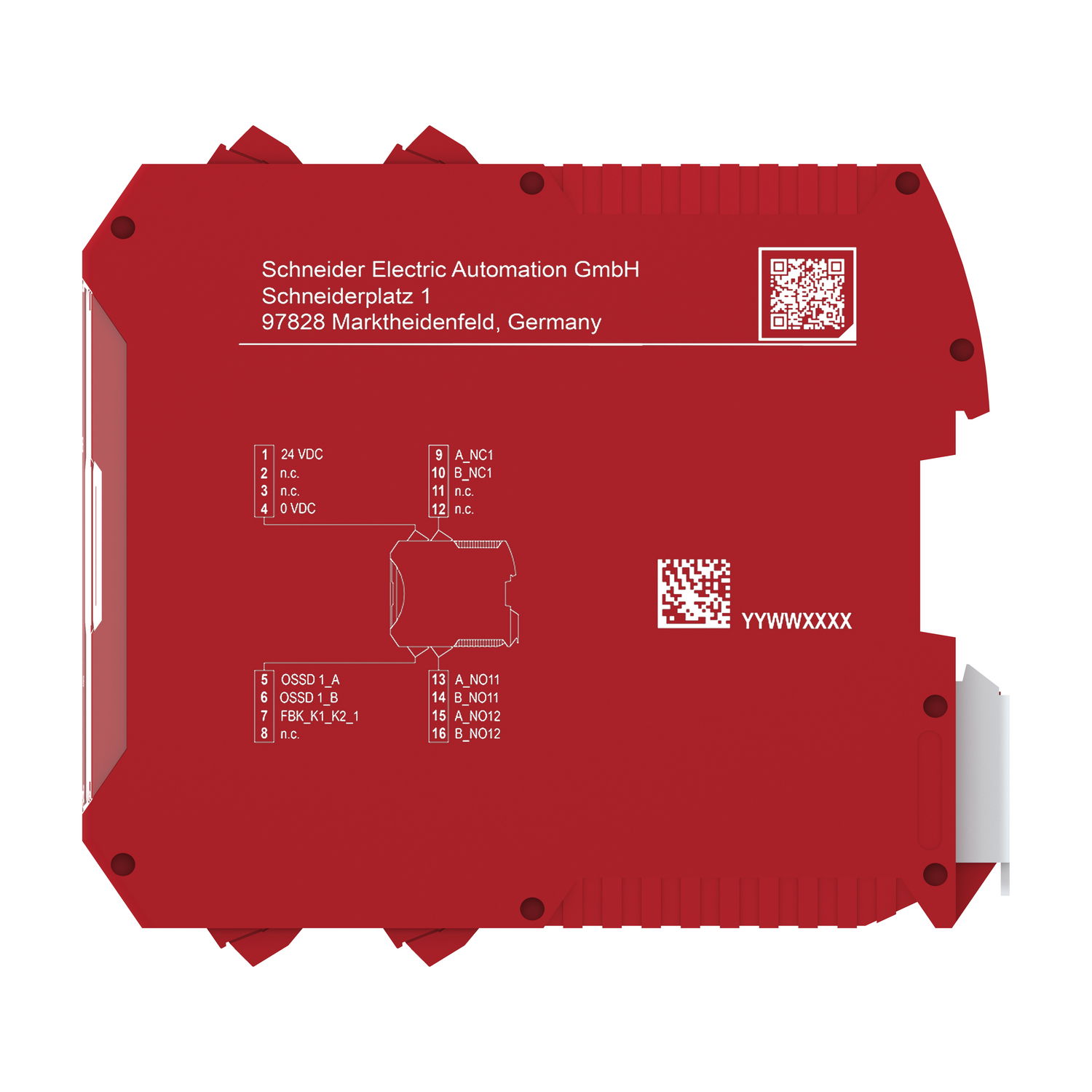

2 safety relay outputs expansion module with screw term – Image 7 of 7

1 / 7

2 safety relay outputs expansion module with screw term

Name: 2 safety relay outputs expansion module with screw term
Brand: Schneider Electric
SKU: XPSMCMER0002
Availability: InStock

2 safety relay outputs expansion module with screw term by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £115.00 to £187.34 excl. VAT. Voltimum+ members earn 23 points per unit.

This Modicon MCM safe relay output expansion module has 2 guided contact safety relay outputs (2NO + 1NC), 1 start/restart interlock input, and is fitted with captive screw clamp terminals. It is designed to monitor safety actuators for relay outputs, with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The safe relay modules type XPSMCMER0002 use guided contact safety relays, each of which provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact. This safe relay output expansion module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, restart signal, output channels). The safe relay output modules type XPSMCMER0002 and XPSMCMER0004 do not require the backplane expansion connectors as they are directly wired to the selected OSSD. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessory for safe relay output module is a memory card. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safe controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Product identifiers

SKU: XPSMCMER0002

EAN: 3606480748806

GTIN: 3606480748806

MPN: XPSMCMER0002

Loyalty points: 23

Price range: £ 115.00 - £ 187.34 Excl. VAT

Specifications

Depth	114.5 mm
Model	Expansion device
Width	22.5 mm
Height	99 mm
EFDE0031	yes
Release-delay
With start input	no
Control voltage 1
Control voltage 2
Evaluation inputs	Other
Power consumption	1.1 W
Supply voltage DC
Operating voltage DC
Rated switch current	-
With muting function	no
With feedback circuit	no
With detachable clamps	yes
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
With approval for BG BIA	no
Type of control voltage 1	-
Type of control voltage 2	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
SIL according to IEC 61508	3
Suitable for rail mounting	yes
Type of electric connection	Screw connection
Voltage type (supply voltage)	DC
With approval according to UL	yes
Voltage type (operating voltage)	DC
Suitable for monitoring of valves	no
Stop category according to IEC 60204	0 + 1
Type of safety according to IEC 61496-1	None
Suitable for monitoring of tactile sensors	no
Suitable for monitoring of magnetic switches	no
Suitable for monitoring of position switches	no
Performance level according to EN ISO 13849-1	Level e
Suitable for monitoring of proximity switches	yes
Suitable for monitoring of emergency-stop circuits	no
Number of outputs, safety related, delayed, with contact	0
Number of outputs, safety related, delayed, semiconductors	0
Number of outputs, safety related, undelayed, with contact	2
Number of outputs, safety related, undelayed, semiconductors	0
Number of outputs, signalling function, delayed, with contact	0
Suitable for monitoring of optoelectronic protection equipment	no
Number of outputs, signalling function, delayed, semiconductors	0
Number of outputs, signalling function, undelayed, with contact	0
Number of outputs, signalling function, undelayed, semiconductors	0
