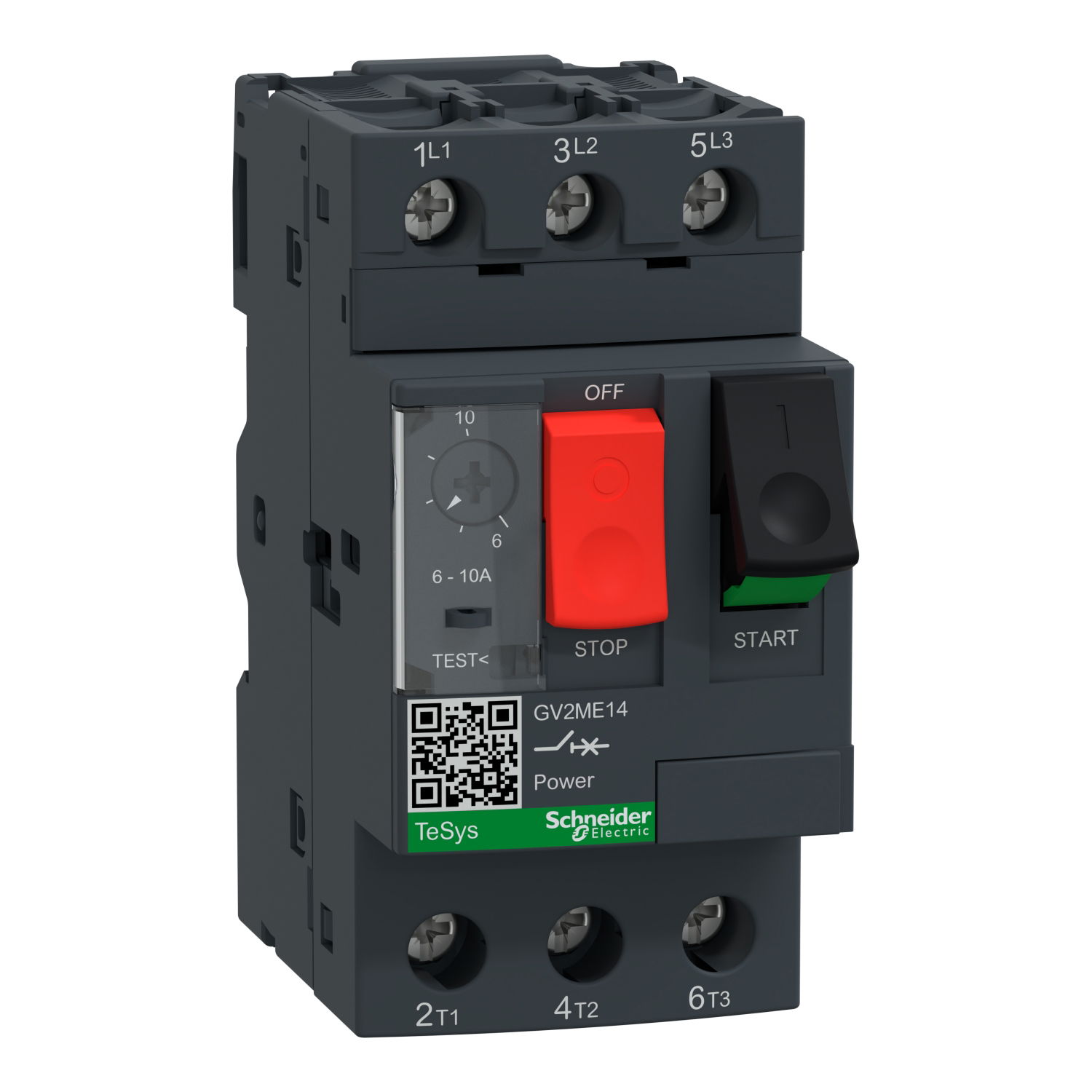

Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals
1 / 5
Popularity
Top 10%
More about Popularity
Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals
Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at all of them. Trade prices range from £54.44 to £89.56 excl. VAT. Voltimum+ members earn 11 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Product identifiers
SKU: GV2ME14
EAN: 3389110343137
GTIN: 3389110343137
MPN: GV2ME14
Loyalty points:
11
Price range: £ 54.44 - £ 89.56 Excl. VAT
ETIM group
Specifications
| Depth | 78.2 mm |
| Width | 45 mm |
| Height | 89 mm |
| Power loss | 2.5 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | yes |
