LED TUBE T5 EXTERNAL HO49 1449 mm 26W 840

1 / 6

LED TUBE T5 EXTERNAL HO49 1449 mm 26W 840

LED TUBE T5 EXTERNAL HO49 1449 mm 26W 840 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £11.87 excl. VAT.

Product benefits

Simple upgrade to dimmable LED system
Shatter protection thanks to special PET coating
No bending thanks to glass tube
5 years guarantee

Areas of application

Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
Linear lighting for office, education, storage areas and retail
Shops, supermarkets

Product features

Designed to power only with LED DRIVER LED TUBE EXTERNAL DALI
Lamp tube made of glass with splinter protection
Quality dimming of 1…100 %
High resistance to switching loads
Suitable for ambient temperatures from -20…+50 °C

Legal advice

When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
LED TUBE T5 EXTERNAL HO80 cannot be operated with 2-channel driver.
All electrical connections must be made by a qualified person.
Disconnect mains before installation.

References / Links

For current information see www.ledvance.com/ledtube

Product identifiers

SKU: 4058075730434

EAN: 4058075730434

GTIN: 4058075730434

MPN: 4058075730434

Price: £ 11.87 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	50000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Capabilities

Dimmable

Yes

Electrical data

Nominal wattage	26 W
Nominal voltage	42 V
Operating mode	EXT 1)
Nominal current	600 mA
Type of current	DC
Operating frequency	0 Hz
Mains frequency	0 Hz
Total harmonic distortion	< 20 %
Power factor λ	0.90

Photometrical data

Luminous flux	4000 lm
Luminous efficacy	154 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤5 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0,4

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	G5
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	No
Length	1463.00 mm
Height	17.00 mm
Width	17.00 mm
Chromaticity coordinate x	0,381
Chromaticity coordinate y	0,379
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0,90
Displacement factor	0,90
LED light source replaces a fluorescent light source	No
EPREL ID	1161817
Model number	AC39944,AC39944

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

User instruction / safety instructions – LEDTUBE EXT P User instruction LEDV

Open

Extended installation guide – LEDVANCE Luminaire conversion checklist

Open

Legal information – Informationstext 18 Abs 4 ElektroG

Open

Declarations of conformity UKCA – LEDTUBE T5 and T8 EXT

Open

Product Images And Graphics

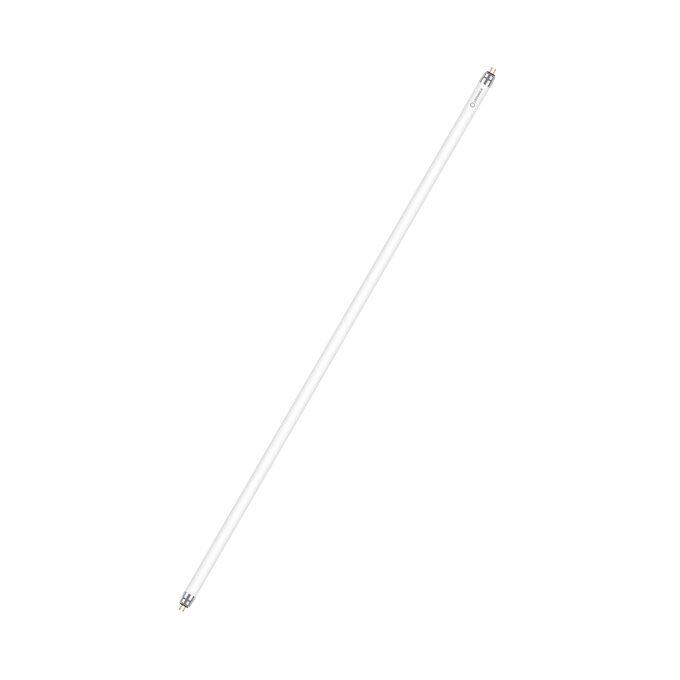

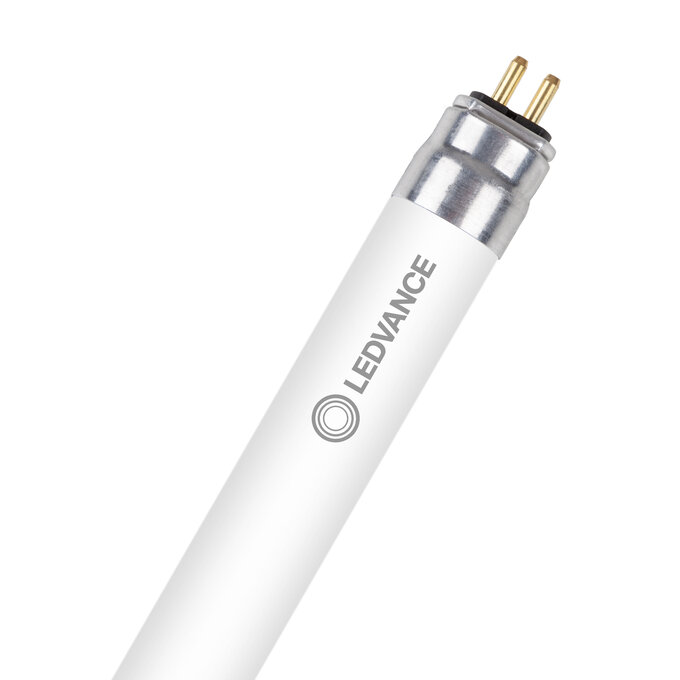

Product image: white background, diagonal with LEDVANCE logo – LEDTUBE T5 EXT P LEDV

Open

Product image: white background, diagonal – LEDTUBE T5 EXT P LEDV

Open

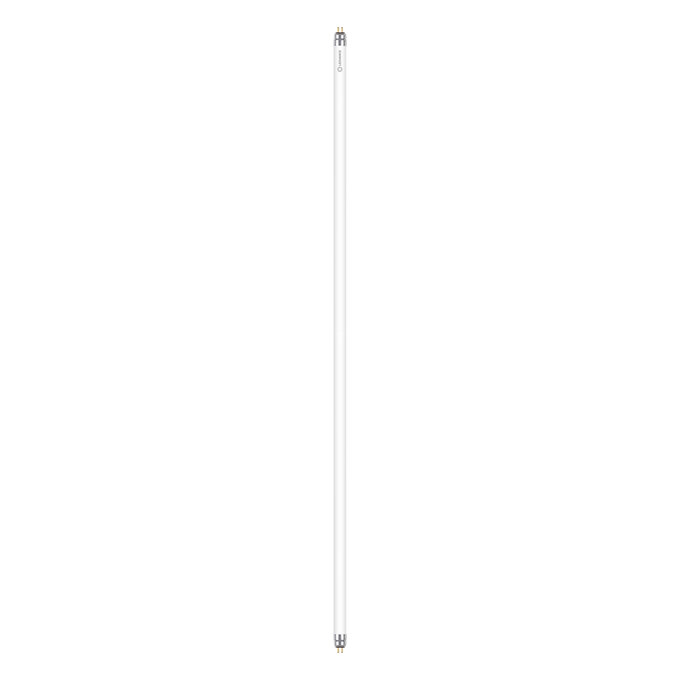

Product image: white background, upright LEDVANCE logo – LEDTUBE T5 EXT P LEDV

Open

Product line drawing with letters – LEDTUBE T5 EXT LEDV

Open

Product line drawing with numbers – LEDTUBE T5 EXT 1449 LEDV

Open

Product line drawing - technical – LEDTUBE T5 EXT P HO 1449 LDV

Open

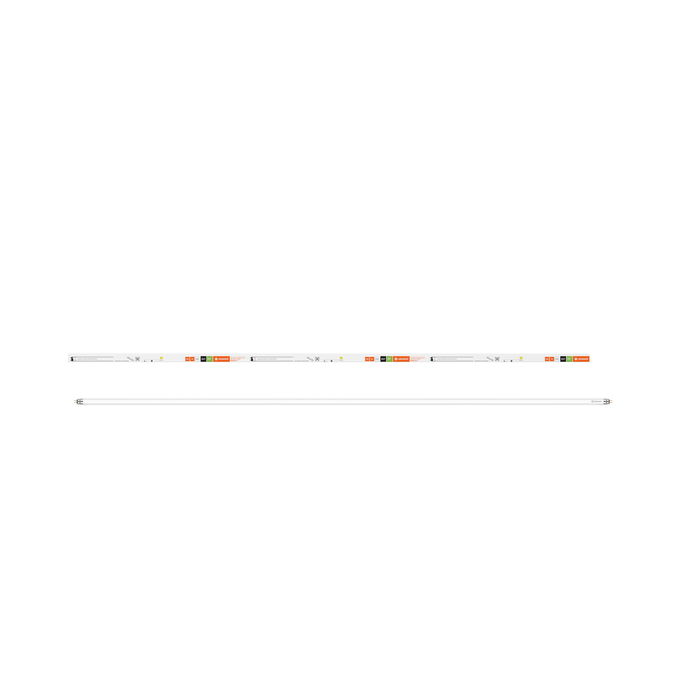

Combo Shot = Product Beauty Shot + Packaging Image – AdTp LEDTUBE T5 EXT HO49 P 1449 26W 840 G5

Open

Packaging image, frontal – AdTp LEDTUBE T5 EXT HO49 P 1449 26W 840 G5

Open

Packaging image, spacial – AdTp LEDTUBE T5 EXT HO49 P 1449 26W 840 G5

Open

Energy Label 2021 UK – EL-4058075730434-AC399 44

Open

Photometric And Lighting Design Files

Overall length	1463.00 mm
Length with base excl. base pins/connection	1449.00 mm
Diameter	17.00 mm
Product weight	137.00 g

Beam angle	180 °
Warm-up time (60 %)	‹ 2.00 s
Starting time	< 1.0 s

Base (standard designation)	G5
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	Single sided LED TUBE (one-sided DC input ) complying with safety requirement acc. IEC 62776:2014. Safety protection against electrical shock in misuse (ECG/CCG/Mains operation).

Energy efficiency class	D 1)
Energy consumption	26.00 kWh/1000h
Type of protection	IP20
Standards	CE; UKCA
Photobiological safety group acc. to EN62778	RG0

Ambient temperature range	-20…+50 °C 1)
Maximum temperature at tc test point	75 °C
Performance temp. acc. to IEC 62717
