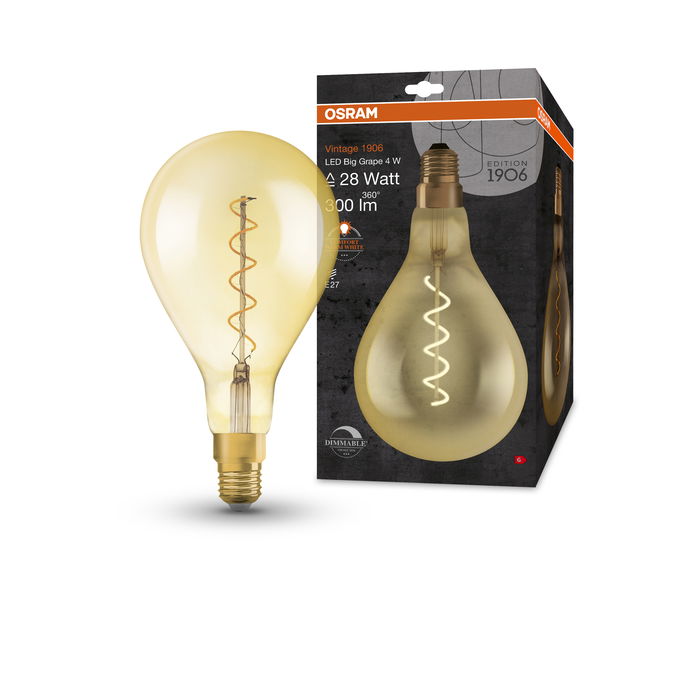

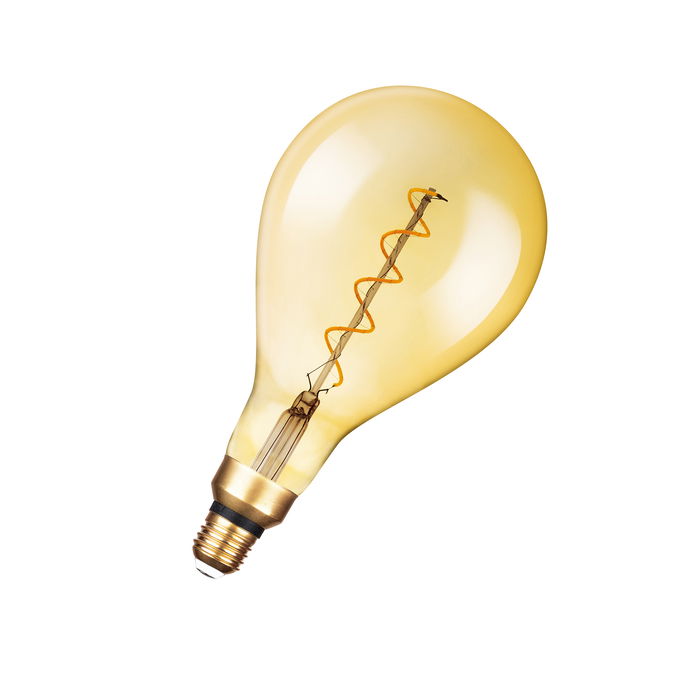

Vintage 1906 Edison 28 Filament Big Grape DIM 4W 820 Gold E27

Vintage 1906 Edison 28 Filament Big Grape DIM 4W 820 Gold E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Available in various bulb shapes and diameters
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075269705
EAN: 4058075269705
GTIN: 4058075269705
MPN: 4058075269705

Price: £ 0.00 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Capabilities

Dimmable Yes 1)

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 25 mA
Inrush current 2.41 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 86
Power factor λ > 0.70

Documents

Documents and certificates

Data sheet
Open

Documents And Certificates

Declarations of conformity UKCA – LED lamps
Open
PRODUCT DATASHEET – 1906 LED CLAS Big Grape DIM 28 5 W 2000K E27
Open
PRODUCT DATASHEET – Vintage1906DIMBIGGRAPE 284W2000KE27en
Open
Product datasheet -> old version of product – Vintage1906Edison28Fil amentBigGrapeDIM4W820G oldE27en
Open

Photometric And Lighting Design Files

Spectral power distribution – Everlight 67-23ST RKE 2700K
Open
