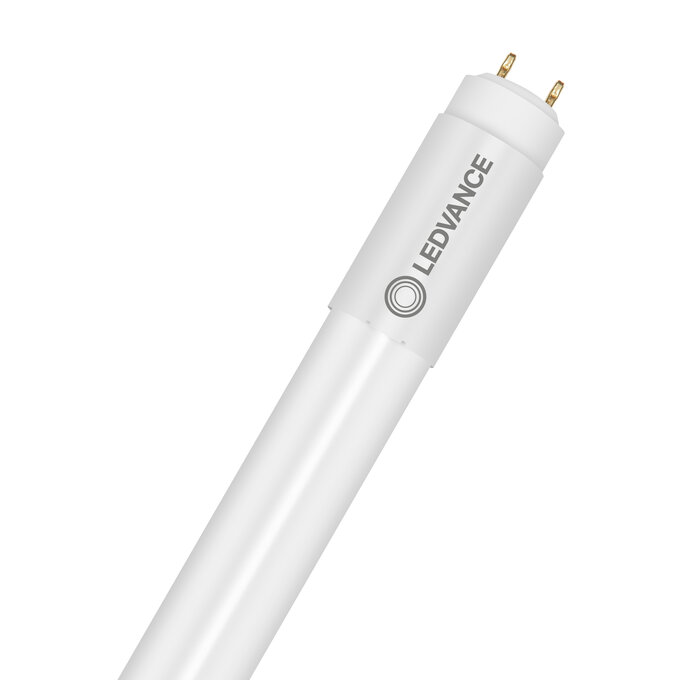

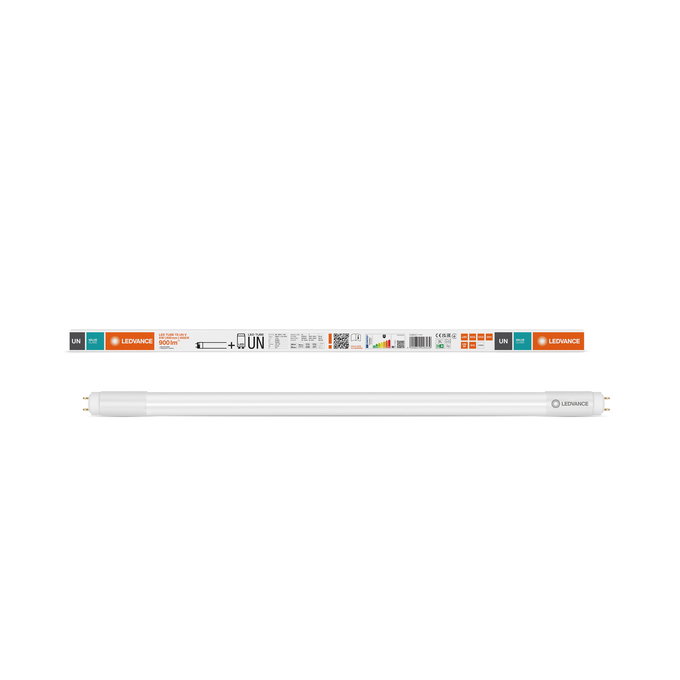

LED TUBE T8 UNIVERSAL VALUE 600 mm 8W 840

Product benefits

• No bending thanks to glass technology
• Quick, simple and safe replacement without rewiring
• Energy savings of up to 58 % (compared to T8 fluorescent lamp)
• Very high resistance to switching loads
• Also suitable for operation at low temperatures

Areas of application

• General illumination within ambient temperatures from -20…+45 °C
• Corridors, stairways, parking garages
• Industry
• Warehouses
• Cooling and storage rooms
• Domestic applications
• Supermarkets and department stores

Product features

• LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG, ECG luminaires or on AC mains
• Compatible with conventional and many common electronic control gears (see also compatibility list) and line voltage
• Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
• Tube made of glass
• Uniform illumination
• Mercury-free and RoHS compliant
• Type of protection: IP20
• Lifetime up to 30,000 h

Legal advice

• When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
• The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
• For operation of LED TUBE T8 UN with a conventional control gear, the existing starter must be exchanged with the including LED starter in the LED tube packaging.
• All electrical connections must be made by a qualified person.
• Not suitable for emergency lighting.

References / Links

• For current information see www.ledvance.com/ledtube
