Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

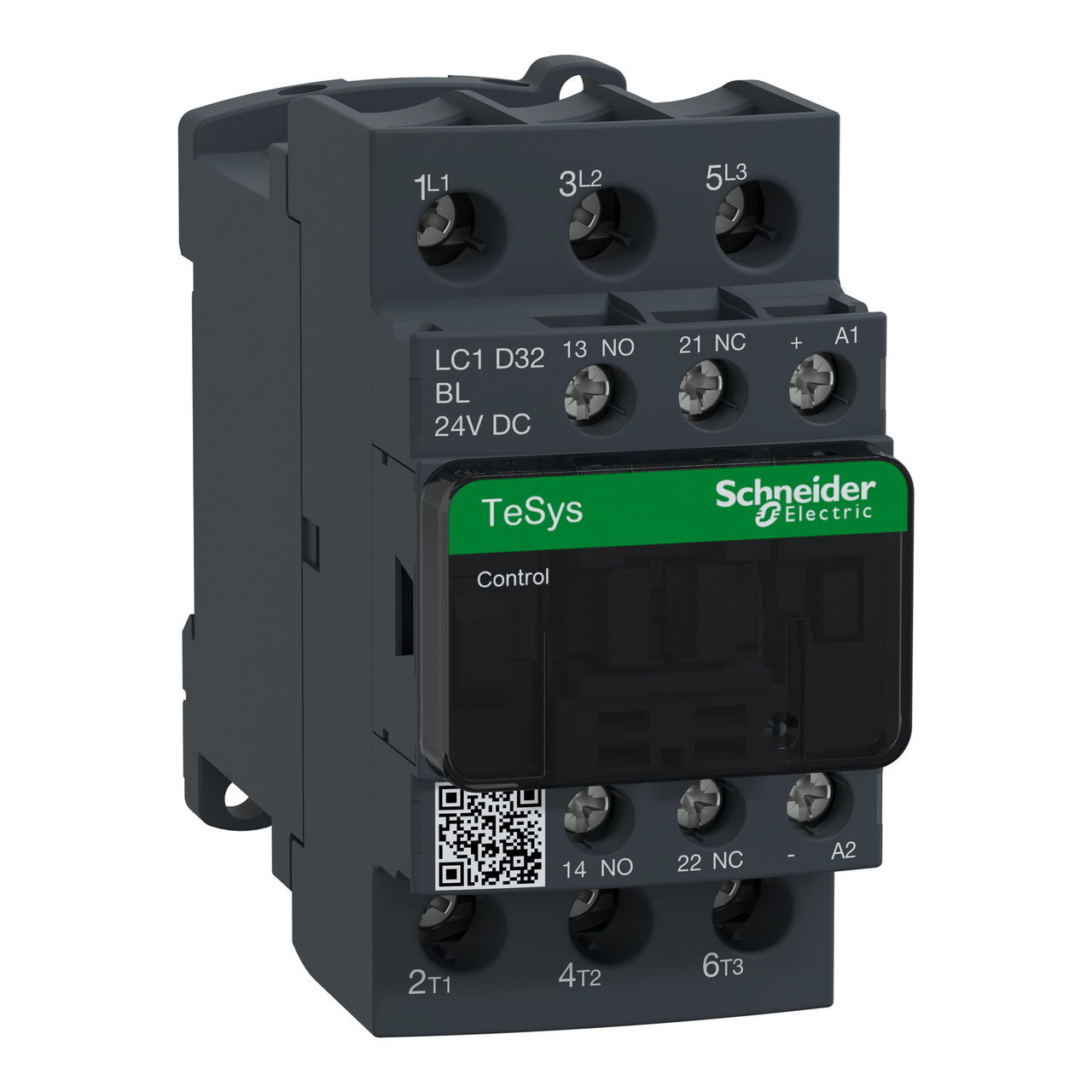

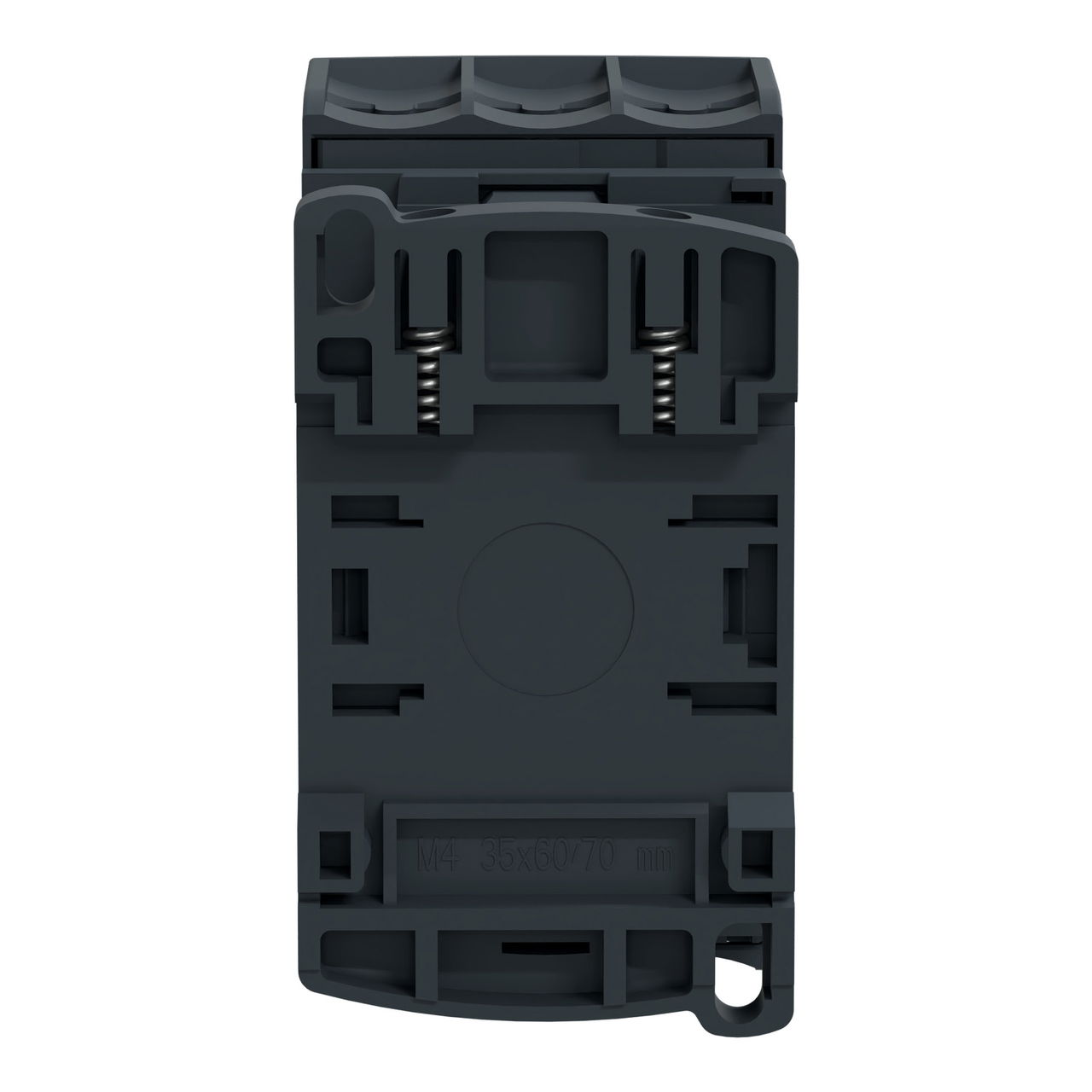

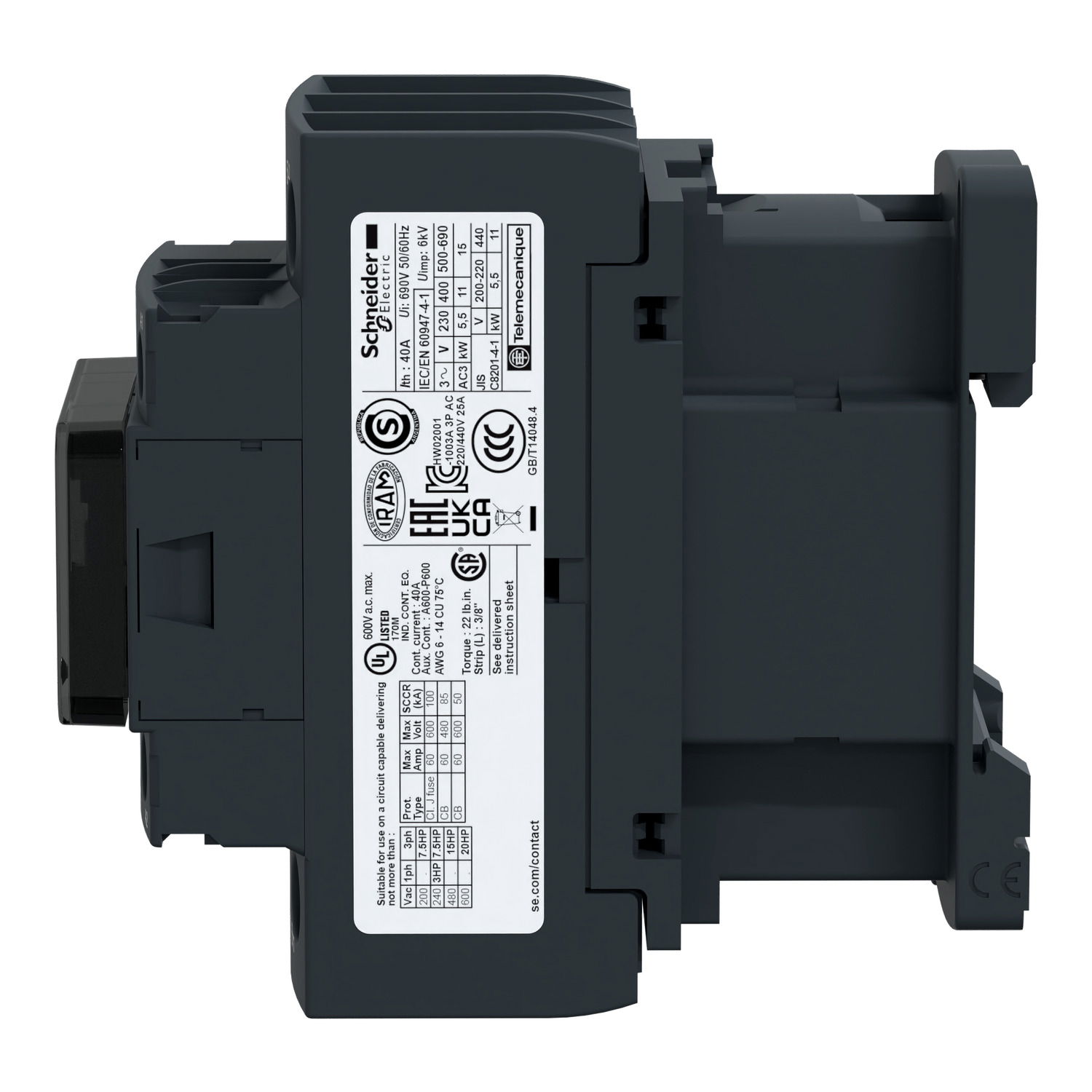

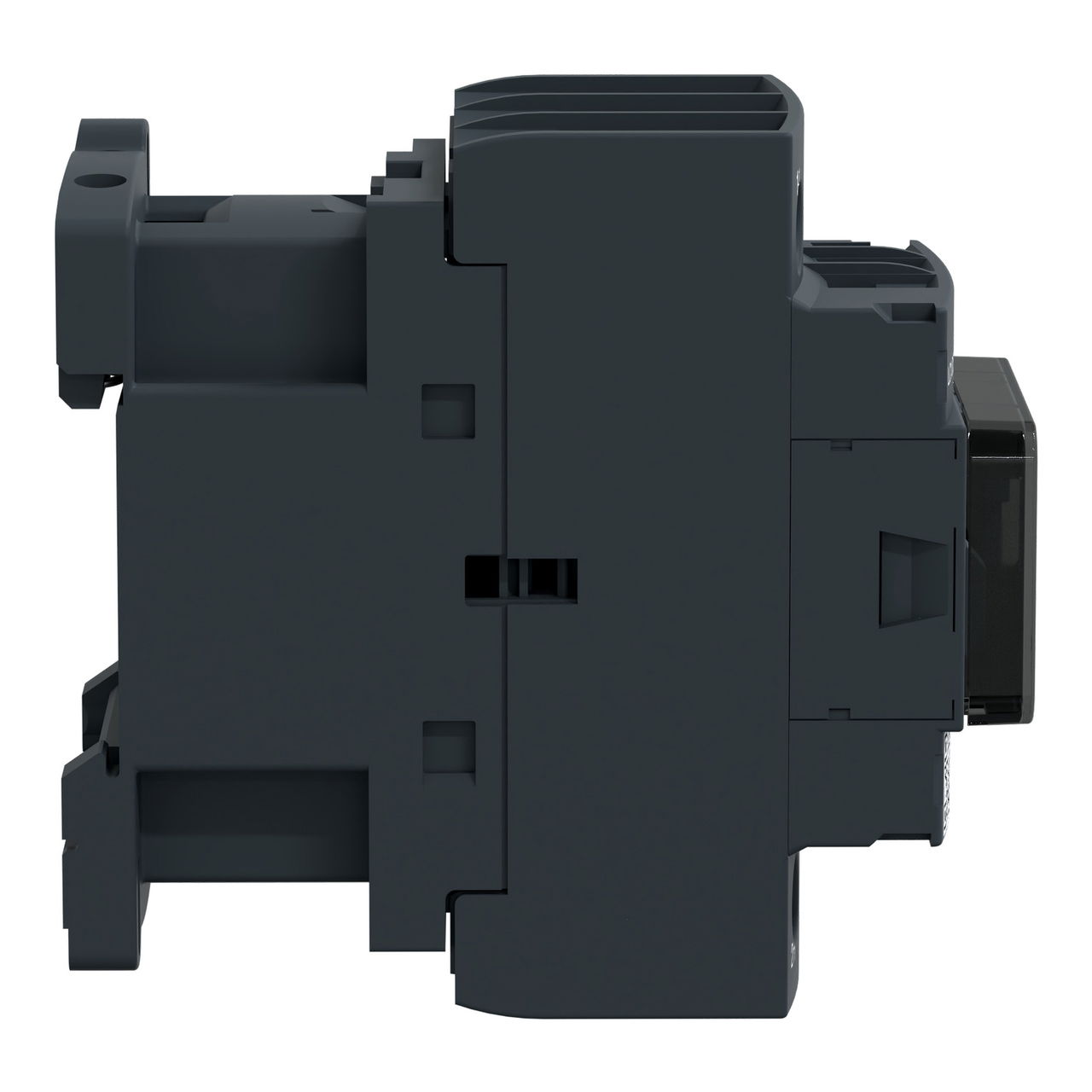

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 24 V DC coil

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 24 V DC coil by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £97.69 to £159.09 excl. VAT. Voltimum+ members earn 21 points per unit.

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1D32BL
EAN: 3389110361834
GTIN: 3389110361834
MPN: LC1D32BL

Voltimum+ Loyalty Programme Loyalty points: 21

Price range: £ 97.69 - £ 159.09 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 101 mm
Width 45 mm
Height 85 mm
Modular version no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA -
Voltage type for actuating DC
Rated operation power at AC-3, 400 V 15 kW
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V 50 A
Rated operation current Ie at AC-4, 400 V -
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

LC1D32BL REACh Regulation

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LC1D32BL EU RoHS Directive

Open

Environmental Disclosure

TeSys D Contactors AC 25 to 38A

Open

Circularity Profile

TeSys D Contactors AC 25 to 38A

Open
