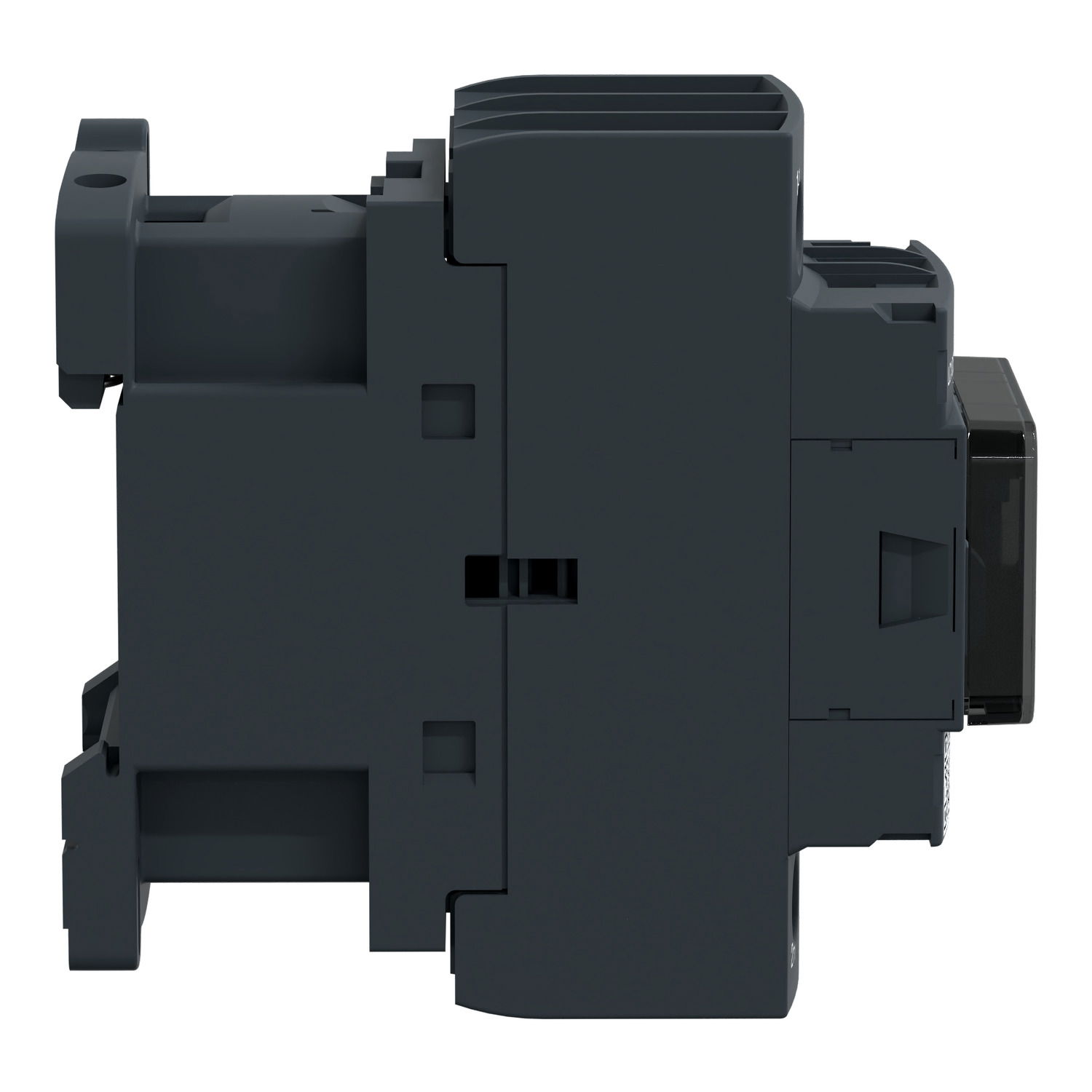

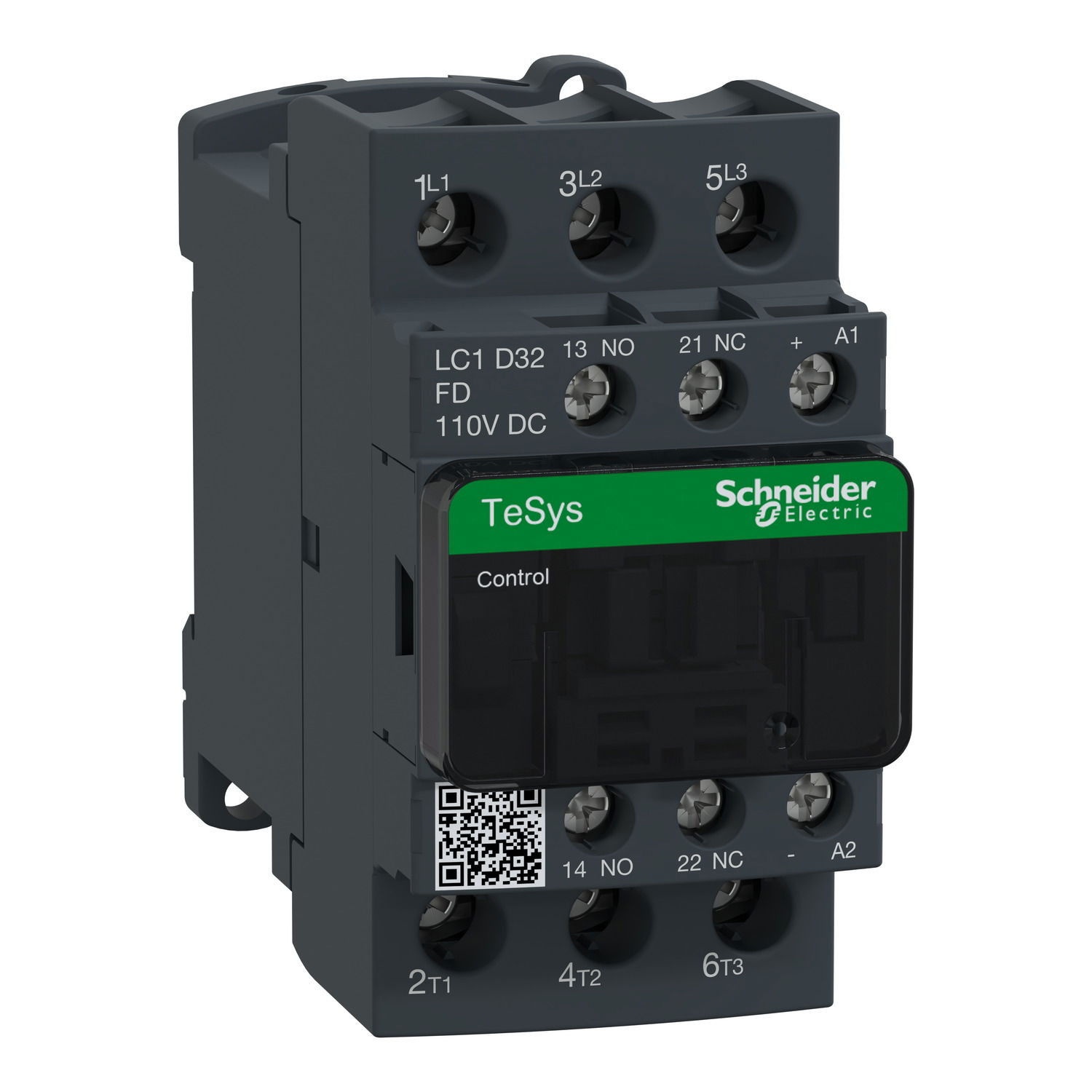

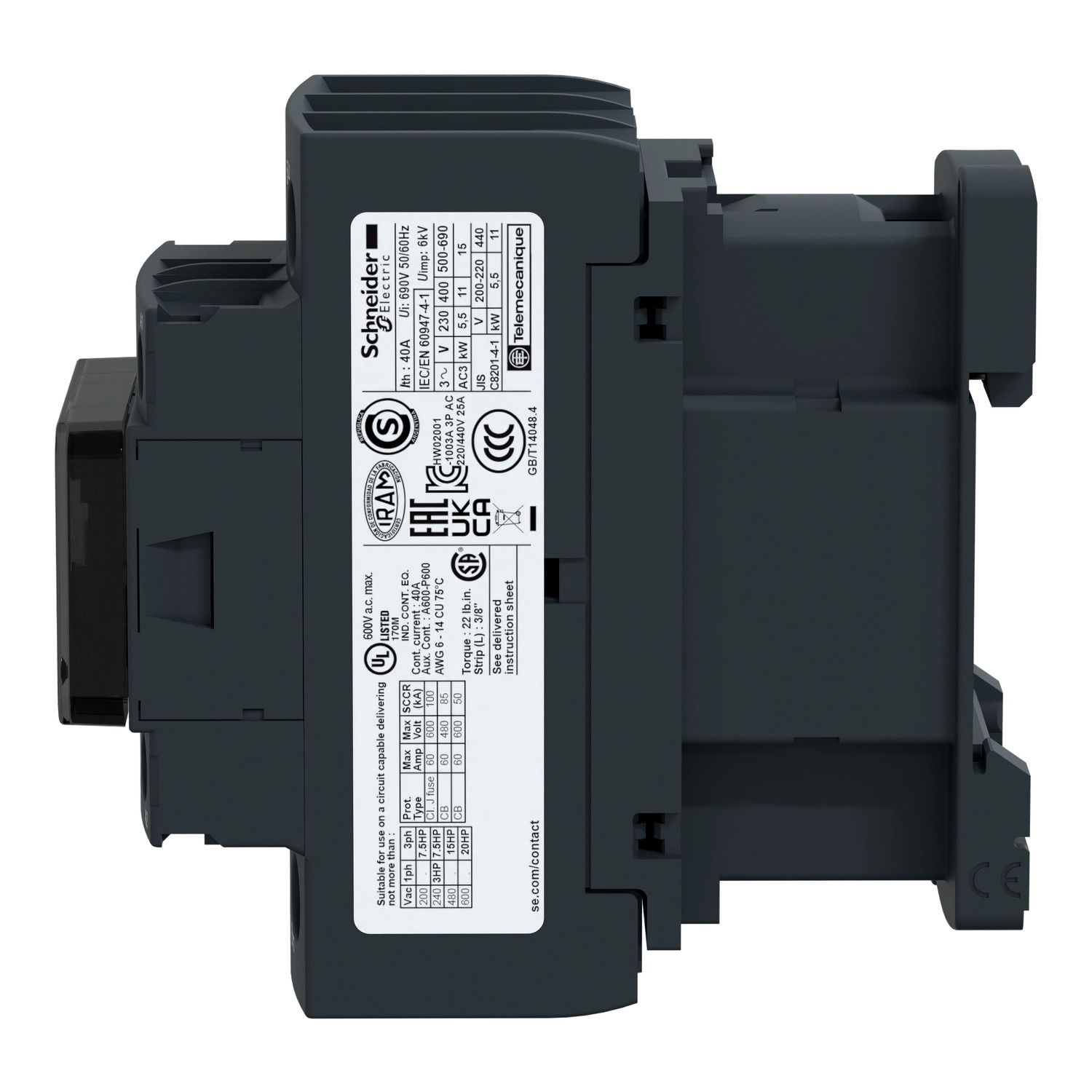

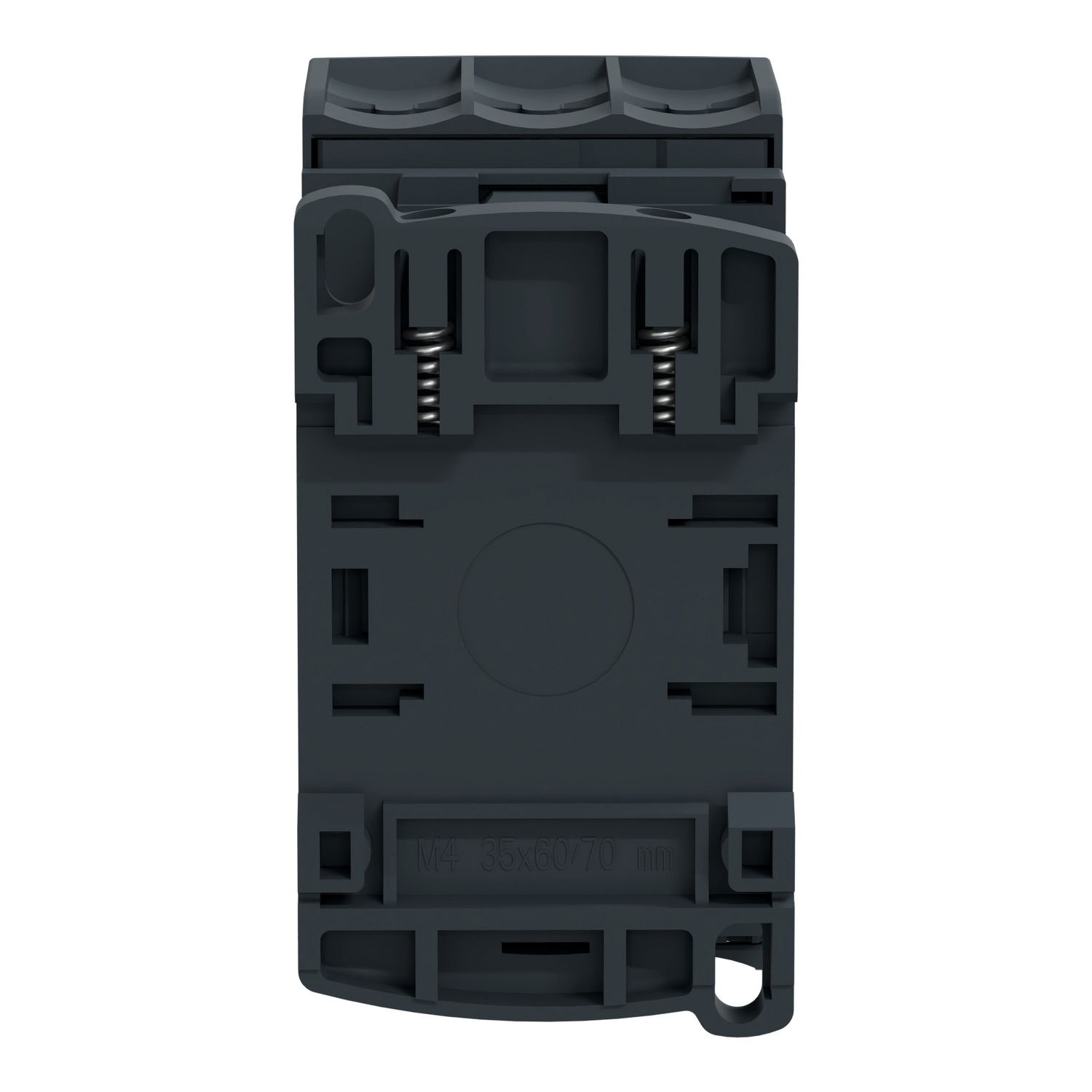

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 110 V DC coil
1 / 5
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 110 V DC coil
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 110 V DC coil by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and Rexel Group. It is currently in stock at 1 of them. Trade prices range from £178.48 to £180.26 excl. VAT. Voltimum+ members earn 23 points per unit.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D32FD
EAN: 3389110357387
GTIN: 3389110357387
MPN: LC1D32FD
Loyalty points:
23
Price range: £ 178.48 - £ 180.26 Excl. VAT
ETIM group
Specifications
| Depth | 101 mm |
| Width | 45 mm |
| Height | 85 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | DC |
