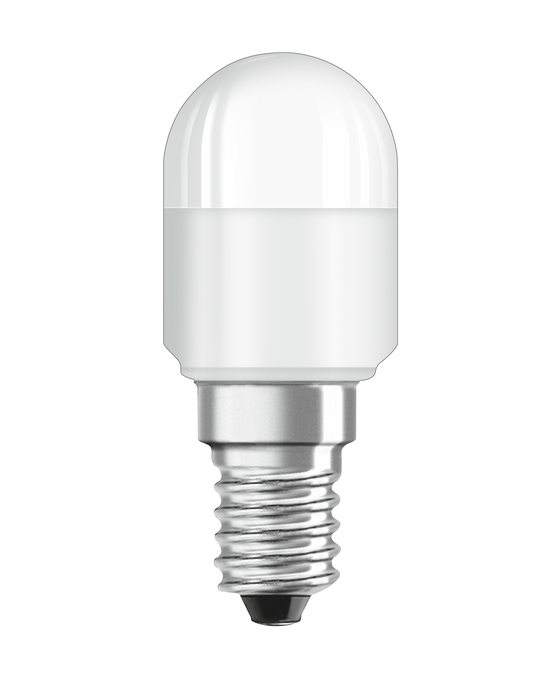

LED Special T26 20 200° 2.3W 865 Frosted E14

1 / 5

LED Special T26 20 200° 2.3W 865 Frosted E14

LED Special T26 20 200° 2.3W 865 Frosted E14 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £3.43 excl. VAT.

Product benefits

Extremely small dimensions
Good all-around light emission
Ideal for decorative and free-burning applications
Long lifetime of up to 15,000 h
Three year guarantee
Lower energy consumption than incandescent or halogen lamps

Areas of application

Domestic refrigerators
Atmospheric accent lighting throughout the home
Small designer luminaires
Sewing machines
Outdoor use in suitable outdoor luminaires only

Product features

LED alternative to conventional high voltage lamps
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

References / Links

For dimming conformity see www.ledvance.com/dim
For Guarantee see www.ledvance.com/guarantee

Product identifiers

SKU: 4058075432789

EAN: 4058075432789

GTIN: 4058075432789

MPN: 4058075432789

Price: £ 3.43 Excl. VAT

Specifications

Electrical data

Nominal wattage	2.3 W
Construction wattage	2.30 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	20 W
Nominal current	22 mA
Type of current	AC
Inrush current	4.6 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	30
Max. lamp number on MCB B16 A	38
Total harmonic distortion	< 175 %
Power factor λ	0.40

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED T26 PT26 E14

Open

PRODUCT DATASHEET – SPC.T26202.3W6500KE14e n

Open

Product datasheet -> old version of product – LEDSpecialT2620200°2. 3W865FrostedE14en

Open

Product Images And Graphics

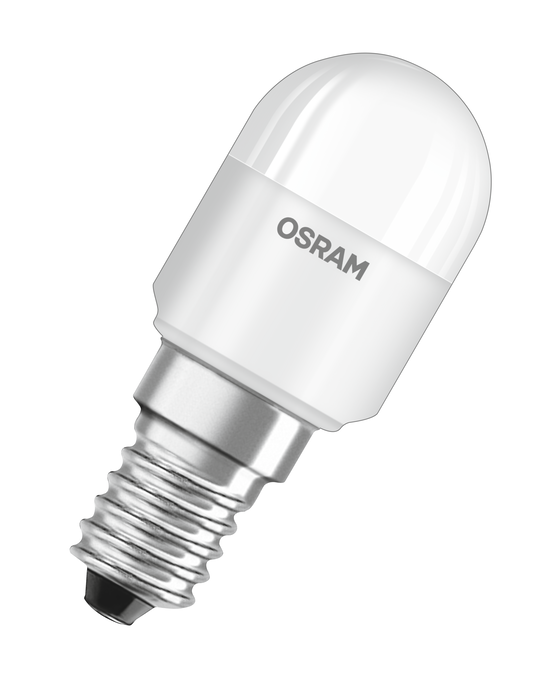

Product image: white background, diagonal with OSRAM logo – 684079_LED Special T26 20 E14

Open

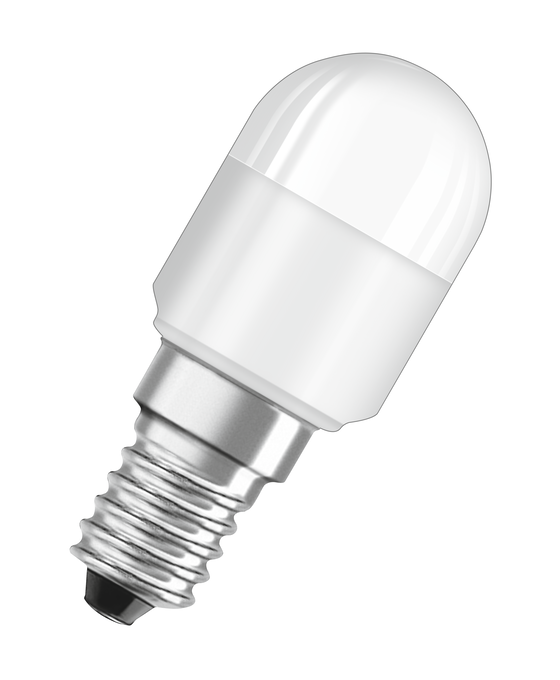

Product image: white background, diagonal – 684073_LED Special T26 20 E14

Open

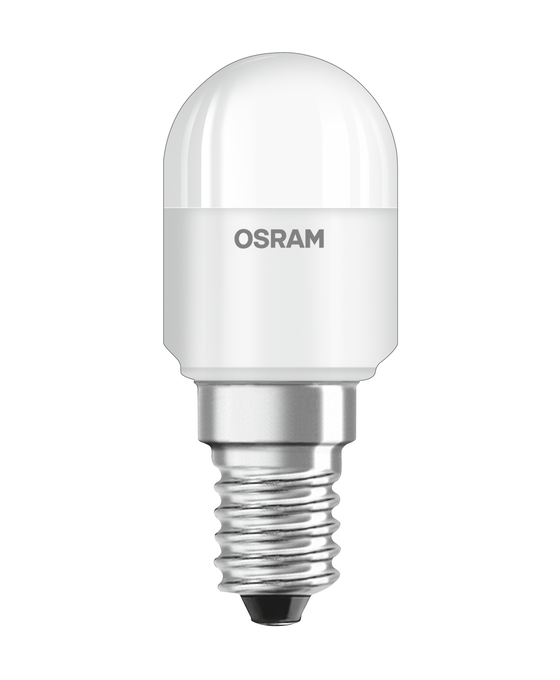

Product image: white background, upright, OSRAM logo – 684078_LED Special T26 20 E14

Open

Product image: white background, upright – 684075_LED Special T26 20 E14

Open

Product line drawing with letters – 684081_LED Special T26 20 E14

Open

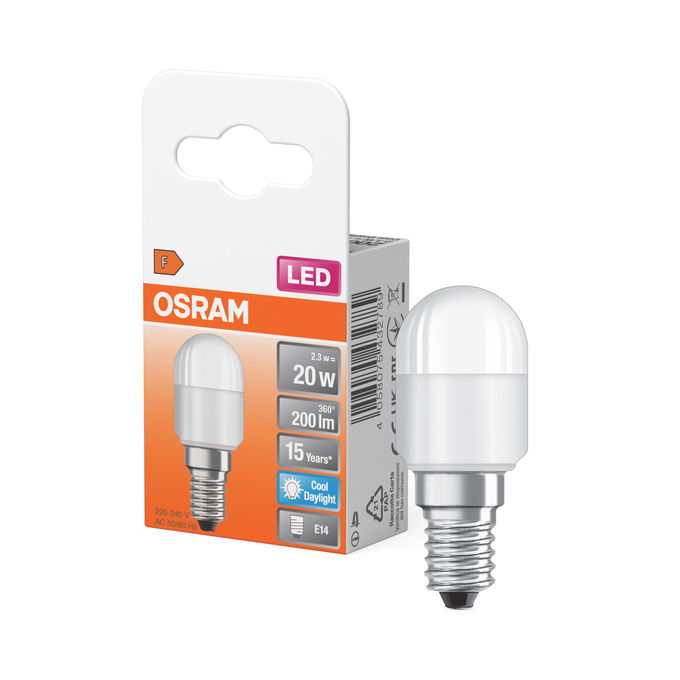

Combo Shot = Product Beauty Shot + Packaging Image – LED SPECIAL T26 20 2.3W 865 FR E14 MiCh

Open

Packaging image, frontal – LED ST SPECIAL T26 20 2.3W 865 FR E14 MiCh

Open

Packaging image, spacial – LED ST SPECIAL T26 20 2.3W 865 FR E14 MiCh

Open

Energy Label 2021 UK – EL-4058075432789-AC321 54

Open

Energy Label 2021 UK – EL-4058075432789-AC247 59

Open

Energy Label 2021 UK – EL-4058075432789-AC458 98

Open

Luminous flux	200 lm
Nominal useful luminous flux 90°	200 lm
Luminous efficacy	86 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool Daylight
Color temperature	6500 K
Color rendering index Ra	80
Light color	865
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

Beam angle	200 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	58.00 mm
Diameter	25,0 mm
Maximum diameter	25 mm
Product weight	12.00 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	59 °C

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Base (standard designation)	E14
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	3.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC
Photobiological safety group acc. to EN62778	RG1

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E14
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0.00 W
Claim of equivalent power	Yes
Length	58.00 mm
Height	25,0 mm
Width	25,0 mm
Chromaticity coordinate x	0.458
Chromaticity coordinate y	0.410
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1403258,522881,1368323
Model number	AC32154,AC45898,AC24759,AC45898

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
