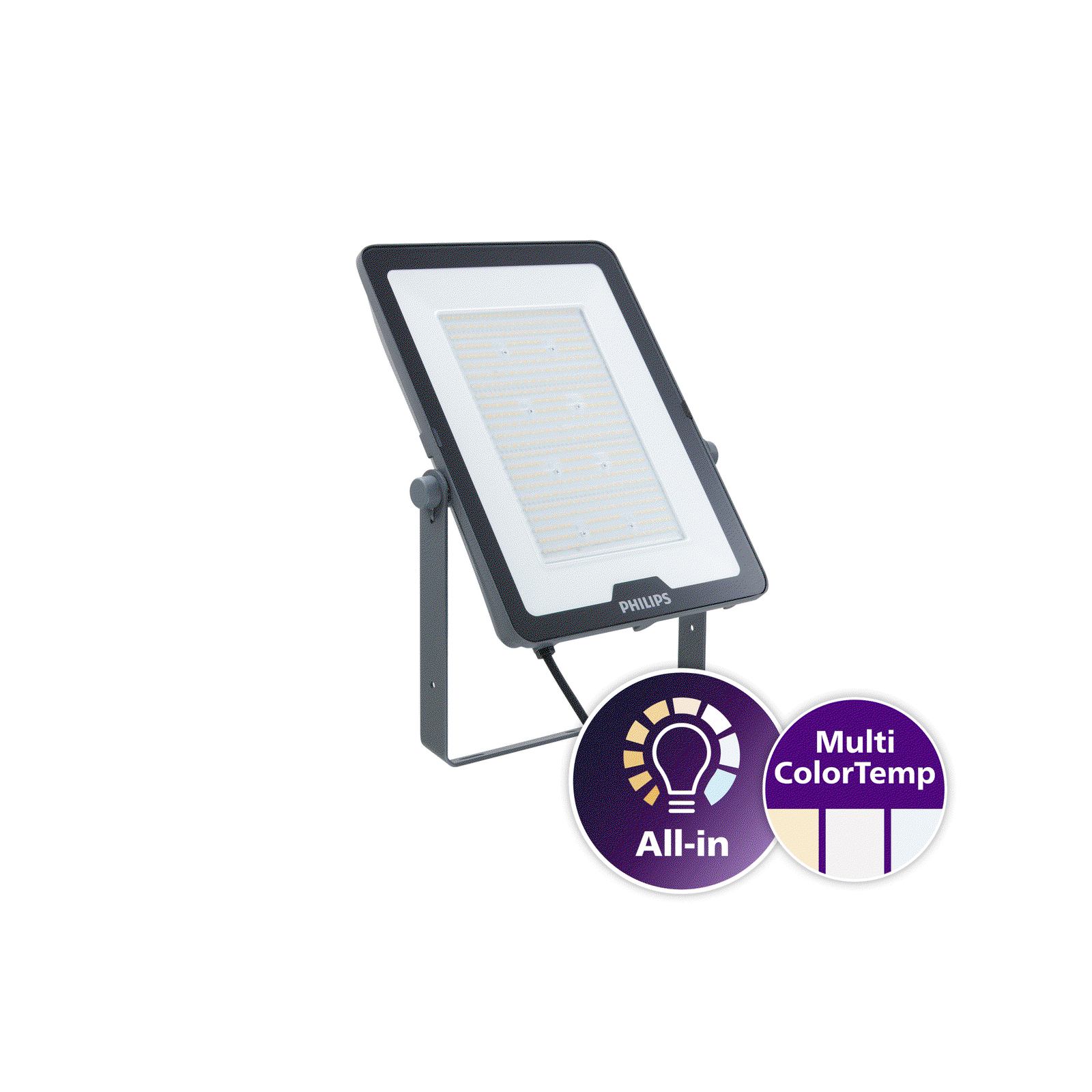

Ledinaire All-in floodlights, 180 W, 20000 lm, 21000 lm, 3000 K, 4000 K, 6500 K, Asymmetrical
Aluminium die cast, Grey, Traffic grey B (RAL7043), Single layer powder coating, Driver integrated on LED board (DoB), All-in, Multi Color Temperature, 20000 lm, 21000 lm, 180 W, 110 lm/W, 115 lm/W, 3000 K, 4000 K, 6500 K, (0.440,0.403); (0.369,0.364); (0.313,0.337) SDCM5, Asymmetrical, IP65 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class I, 1.5/1.5 kV, Cable 2.0 m without plug, Flying leads/cables
Product identifiers
SKU: 911401886386
EAN: 8720169736146
GTIN: 8720169736337
MPN: Ledinaire All-in floodlights
Price range: £ 159.19 - £ 305.28 Excl. VAT
Categories
Features
|

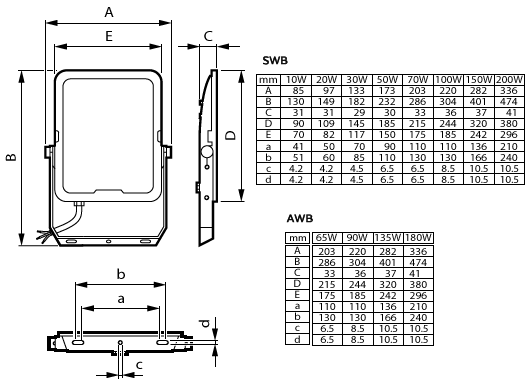

Width
|
336 mm
|
|
Length
|
474 mm
|
|
Lamp type
|
LED not exchangeable
|
|
Reflector
|
None
|
|
Beam angle
|
Extreme wide beam >80°
|
|
Dimming RF
|
no
|
|
Dimming DMX
|
no
|
|
Dimming DSI
|
no
|
|
Lamp holder
|
None
|
|
Dimming DALI
|
no
|
|
Height/depth
|
41 mm
|
|
Light outlet
|
Direct
|
|
Power factor
|
0.95
|
|
Voltage type
|
AC
|
|
Adjustability
|
Rotatable
|
|
Luminous flux
|
20000 - 21000 lm
|
|
Built-in width
|
-
|
|
Dimming 0-10 V
|
no
|
|
Dimming 1-10 V
|
no
|
|
Dimming DALI-2
|
no
|
|
Dimming Zigbee
|
no
|
|
Housing colour
|
Grey
|
|
Material cover
|
Glass transparent
|
|
Outer diameter
|
-
|
|
Type of wiring
|
Ending
|
|
Built-in length
|
-
|
|
Colour of light
|
White
|
|
Connection type
|
Other
|
|
Impact strength
|
IK08
|
|
No dim function
|
yes
|
|
Nominal current
|
0.77 - 0.77 mA
|
|
Nominal voltage
|
220 - 240 V
|
|
Number of poles
|
3
|
|
Surface brushed
|
no
|
|
Housing material
|
Aluminium
|
|
Reflector colour
|
White
|
|
Built-in diameter
|
|
|
Light distributor
|
Refractor lens
|
|
Max. system power
|
180 W
|
|
With control gear
|
yes
|
|
With light sensor
|
no
|
|
With light source
|
yes
|
|
Colour temperature
|
3000 - 6500 K
|
|
Dimming LineSwitch
|
no
|
|
Light distribution
|
Asymmetric
|
|
Luminaire efficacy
|
110 lm/W
|
|
Luminous intensity
|
648 cd
|
|
Surface protection
|
Powder coating
|
|
Dimming programmable
|
no
|
|
Type of control gear
|
Not required
|
|
With movement sensor
|
no
|
|
Beam angle adjustable
|
No
|
|
Built-in height/depth
|
-
|
|
Dimming Touch and Dim
|
no
|
|
Operation by Bluetooth
|
no
|
|
Conductor cross section
|
1 mm²
|
|
Flickering value Pst LM
|
1
|
|
IFTTT support available
|
no
|
|
Suitable for lamp power
|
180 - 180 W
|
|
Dimming with push-button
|
no
|
|
Luminous flux adjustable
|
No
|
|
Degree of protection (IP)
|
IP65
|
|
Exchangeable control gear
|
no
|
|
Total harmonic distortion
|
20
|
|
Unified Glare Ratio (UGR)
|
-
|
|
Colour of light adjustable
|
Positions
|
|
Colour rendering index CRI
|
80-89
|
|
Suitable for wall mounting
|
yes
|
|
Constant light output (CLO)
|
no
|
|
Degree of protection (NEMA)
|
-
|
|
Dimming Sine Wave Reduction
|
no
|
|
Suitable for clamp-mounting
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Stroboscope effect value SVM
|
-
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
no
|
|
Suitable for surface mounting
|
yes
|
|
Suitable for built-in mounting
|
no
|
|
Suitable for traverse mounting
|
no
|
|
Suitable for suspended mounting
|
no
|
|
Compatible with Google Assistant
|
no
|
|
Dimming mains voltage modulation
|
no
|
|
Emergency power supply integrated
|
no
|
|
Rated life time L70/B50 at 25 °C
|
80000 h
|
|
Suitable for light-track mounting
|
no
|
|
Dimming potentiometer (integrated)
|
no
|
|
Colour consistency (McAdam ellipse)
|
SDCM5
|
|
Connectable conductor cross section
|
1 - 1 mm²
|
|
Dimming phase cut-on (leading edge)
|
no
|
|
Suitable for number of light sources
|
1
|
|
Suitable for pedestal/floor mounting
|
yes
|
|
Dimming phase cut-off (trailing edge)
|
no
|
|
Suitable for low voltage cable system
|
no
|
|
Protection class according to IEC 61140
|
I
|
|
Dimming manufacturer's proprietary system
|
no
|
|
Filament test according to IEC 60695-2-11
|
650 °C - 30 s
|
|
Photobiological safety according to EN 62471
|
RG0
|
|
Rated luminous flux according to IEC 62722-2-1
|
21000 lm
|
|
Suitable for workplace according to EN 12464-1
|
no
|
|
Rated ambient temperature according to IEC 62722-2-1
|
25 - 25 °C
|
|
Max. number of luminaires per miniature circuit breaker B16 (MCB)
|
11
|
|
Max. number of luminaires per miniature circuit breaker C16 (MCB)
|
13
|
|
Covering of the luminaire with thermally insulating material possible
|
no
|
|
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
|
-
|
|
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
|
7.5 %
|
|
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
|
-
|
|
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
|
-
|
|
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
|
80 %
|
|
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
|
-
|
|
Energy efficiency class of the light source according to EU regulation 2019/2015
|
E
|
|
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
|
no
|
