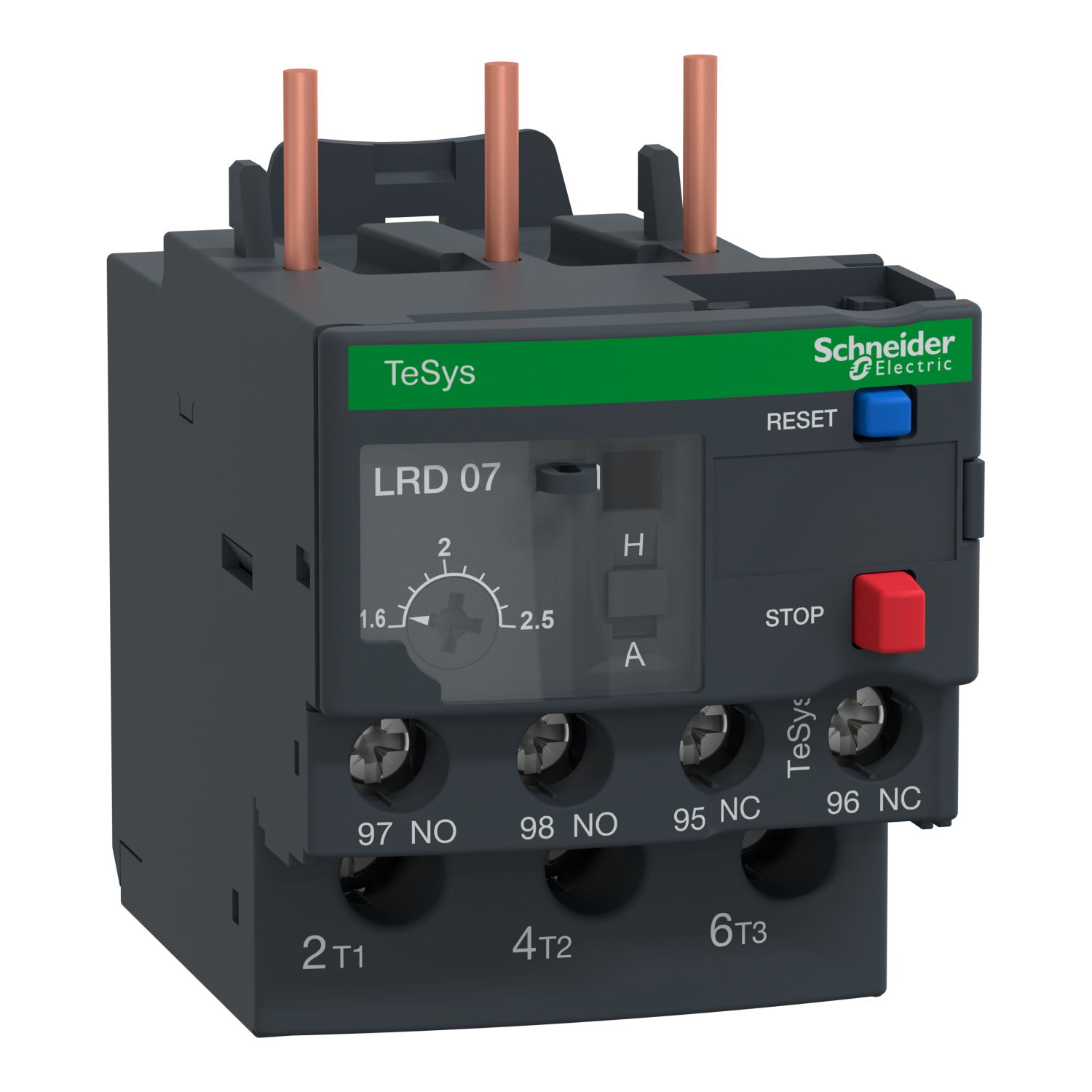

TeSys LRD thermal overload relays - 1.6...2.5 A - class 10A

TeSys LRD thermal overload relays - 1.6...2.5 A - class 10A by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £32.06 to £52.23 excl. VAT. Voltimum+ members earn 7 points per unit.

TeSys LRD thermal overload relay, 2.5A/690V, thermal setting range 1.6-2.5A, tripping class 10A, for protection of 3-phase motors 0.75kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Product identifiers

SKU: LRD07
EAN: 3389110346770
GTIN: 3389110346770
MPN: LRD07

Voltimum+ Loyalty Programme Loyalty points: 7

Price range: £ 32.06 - £ 52.23 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Low-voltage industrial components

Specifications

Release class CLASS 10 A
Mounting method Direct attachment
Reset function input no
Adjustable current range
Reset function automatic yes
Reset function push-button yes
Max. rated operation voltage Ue 690 V
Type of electrical connection of main circuit Screw connection
Number of auxiliary contacts as normally open contact 1
