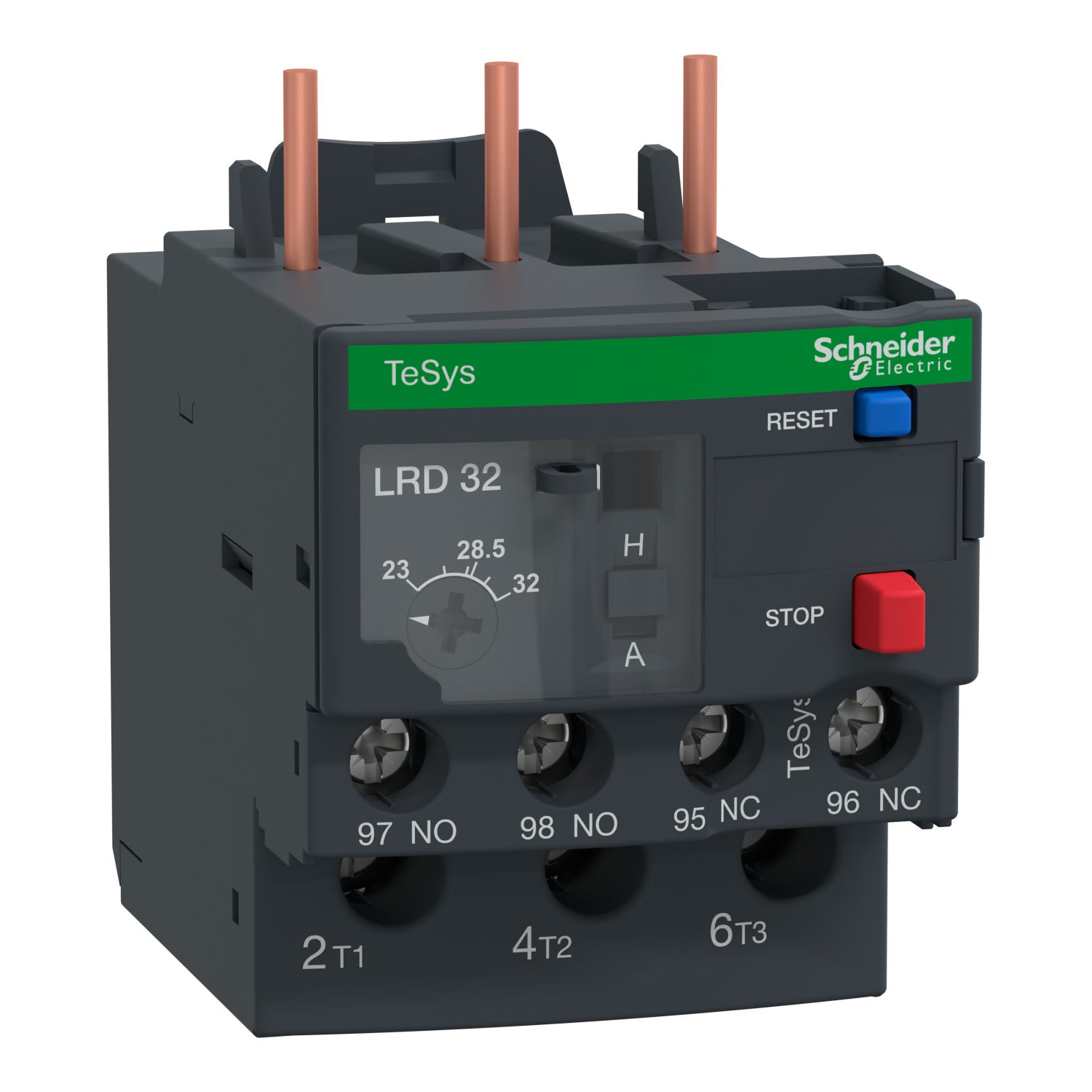

Thermal overload relay, TeSys LRD, 23...32 A, class 10A

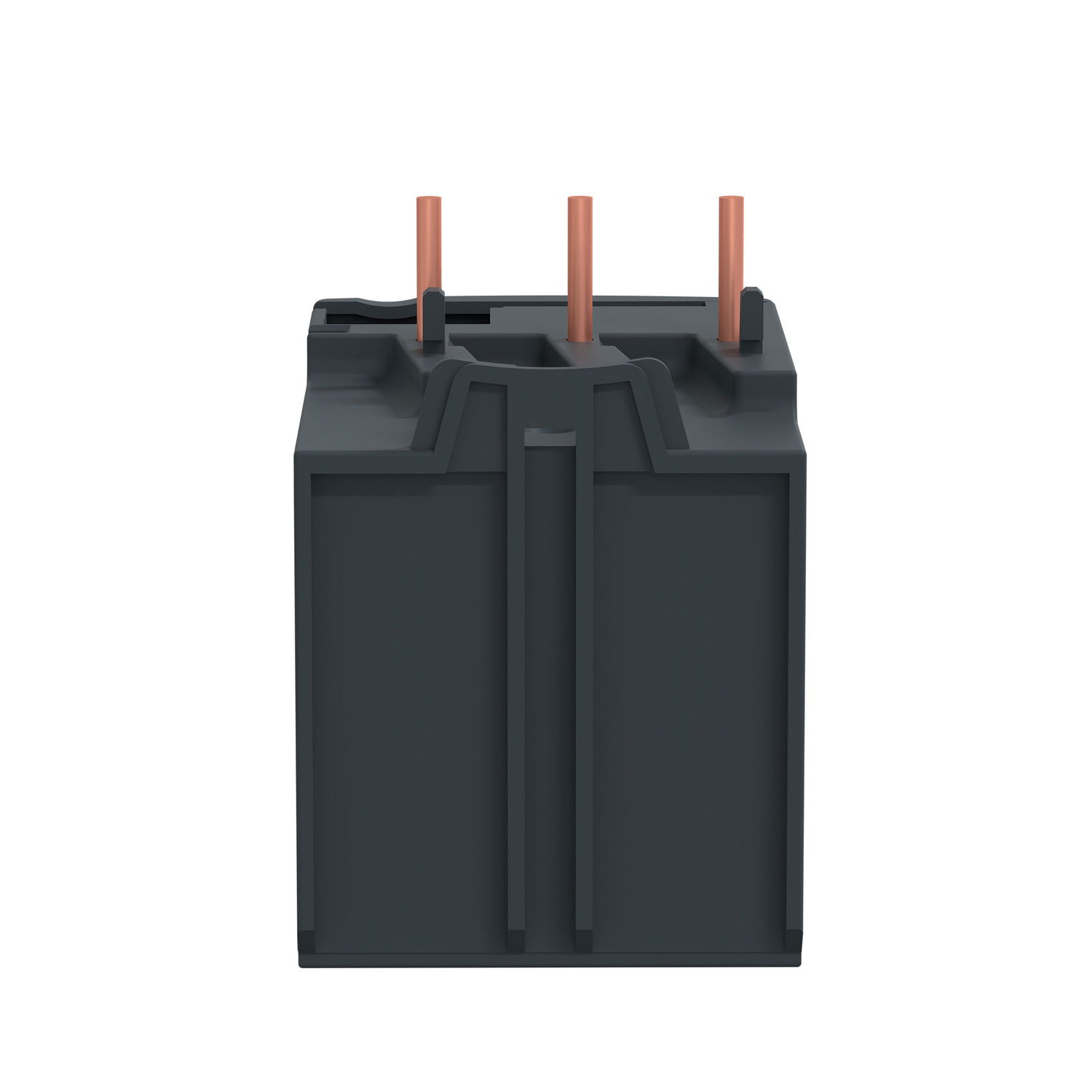

Thermal overload relay, TeSys LRD, 23...32 A, class 10A – Image 2 of 4

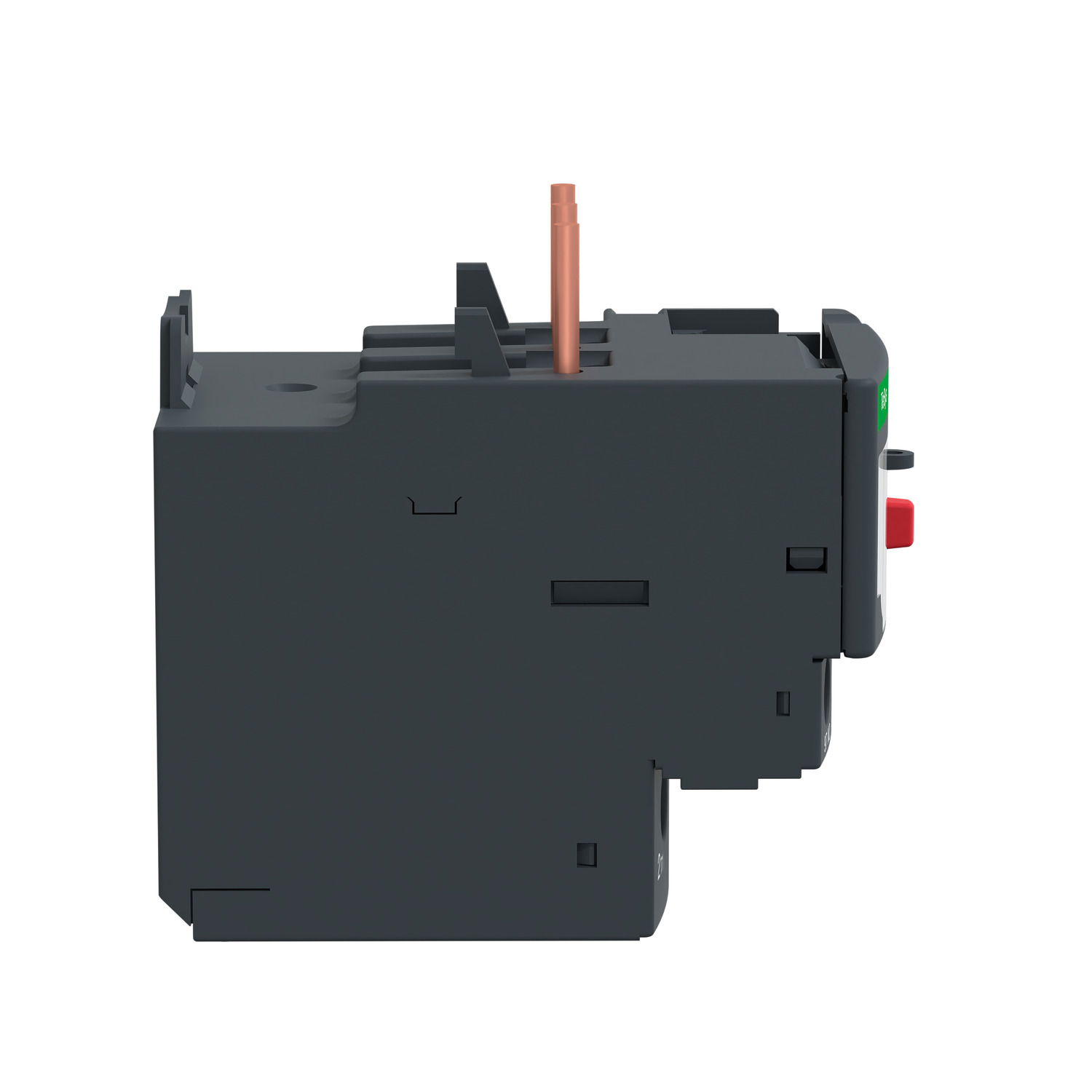

Thermal overload relay, TeSys LRD, 23...32 A, class 10A – Image 3 of 4

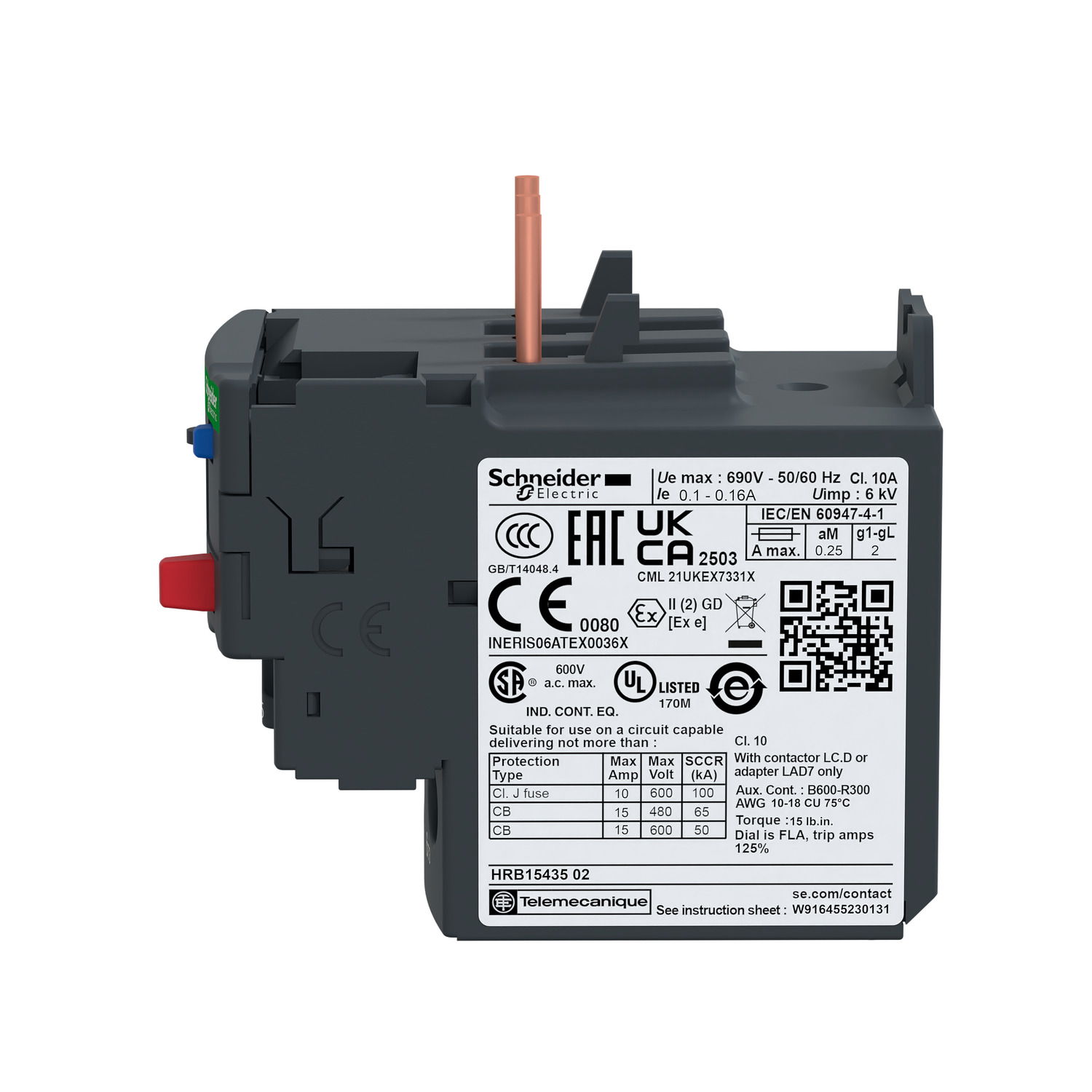

Thermal overload relay, TeSys LRD, 23...32 A, class 10A – Image 4 of 4

1 / 4

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Thermal overload relay, TeSys LRD, 23...32 A, class 10A

Name: Thermal overload relay, TeSys LRD, 23...32 A, class 10A
Brand: Schneider Electric
SKU: LRD32
Availability: InStock

Thermal overload relay, TeSys LRD, 23...32 A, class 10A by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £56.48 to £92.00 excl. VAT. Voltimum+ members earn 12 points per unit.

TeSys LRD thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 10A, for protection of 3-phase motors 15kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Product identifiers

SKU: LRD32

EAN: 3389110346855

GTIN: 3389110346855

MPN: LRD32

Loyalty points: 12

Price range: £ 56.48 - £ 92.00 Excl. VAT

Specifications

Release class	CLASS 10 A
Mounting method	Direct attachment
Reset function input	no
Adjustable current range
Reset function automatic	yes
Reset function push-button	yes
Max. rated operation voltage Ue	690 V
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
