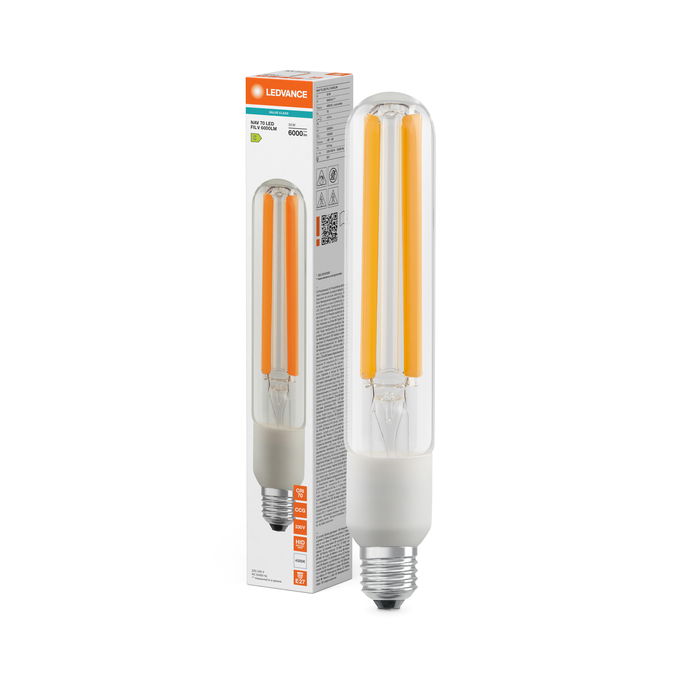

NAV 70 LED FILAMENT VALUE 6000LM 35W 740 E27
Product benefits
- Same design as traditional NAV lamps with clear, tubular full glass bulb
- Full use of reflector of existing luminaire thanks to 360 degree beam angle
- Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
- Instant 100 % light, no warm-up time
- Similar light distribution as traditional NAV lamps
Areas of application
- Streets
- Area lighting
- Pedestrian zones
- Parks
- Outdoor applications only in suitable luminaires
Product features
- Suitable for operation with conventional control gear (CCG) or 230 V AC mains
- Extremly high efficiency of 210 lm/W
- Power factor: 0.9
- Type of protection: IP65
- Surge protection: up to 2 kV (L-N)
- ENEC-certified safety
Safety advice
- Not suitable for operation with ignitors.
- Operation on the capacitor can lead to a reduction of the power factor of the system.
- When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
- Use in tight luminaires and luminaires with tight reflectors not recommended.
- Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
- All electrical connections must be made by a qualified person.
Product identifiers
SKU: 4099854072031
EAN: 4099854072031
GTIN: 4099854072031
MPN: 4099854072031
Price: £ 23.43 Excl. VAT
Categories
ETIM Group
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Capabilities
| Dimmable | No |
Electrical data
| Nominal wattage | 35 W |
| Construction wattage | 35.00 W |
| Nominal voltage | 220…240 V |
