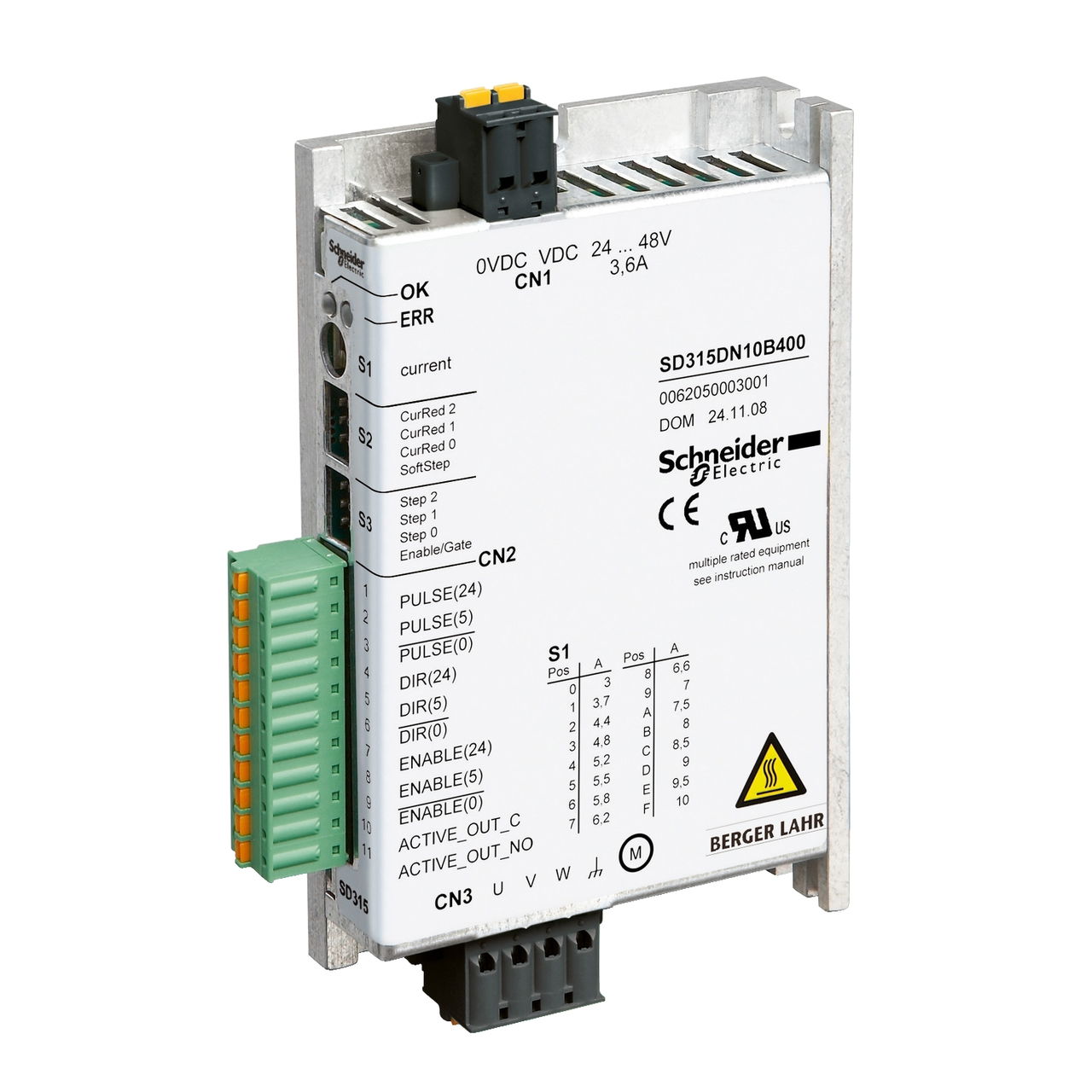

Motion control stepper motor drive - SD315 - pulse direction with oscillator

"This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors." "This is a stepper motor drives with pulse/direction interface." "It is equipped with an oscillator mode. Its supply voltage varies from 24VDC to 48VDC." "The drive is for 3 phase stepper motors equipped with control electronics with a pulse/direction interface." "Its supply voltage limits are 19V to 60 V. Its maximum motor phase current is 10A." "It measures 117mm wide, 74.5mm deep, and 23.5 mm high." "It weighs 0.25kg." "It is designed to drive motion in such applications as folding or finishing machines, small numerical control machines, sewing machines, embroidery machines." "This product is certified by CE, CUL, and UL. It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2, and EN/IEC 61800-3 standards." "It is compatible with BRS364H, BRS366H, BRS368H, BRS397H, BRS39AH, and BRS39BH stepper motors." "It can be mounted directly via the narrow or wide mounting surface with two M4 screws, and optionally be snapped onto a standard TH35 rail." "The SD3 is an universally applicable stepper motor drive." "Stepper drives and stepper motors are for motion control with high accuracy and high torque at low rotation speeds."
