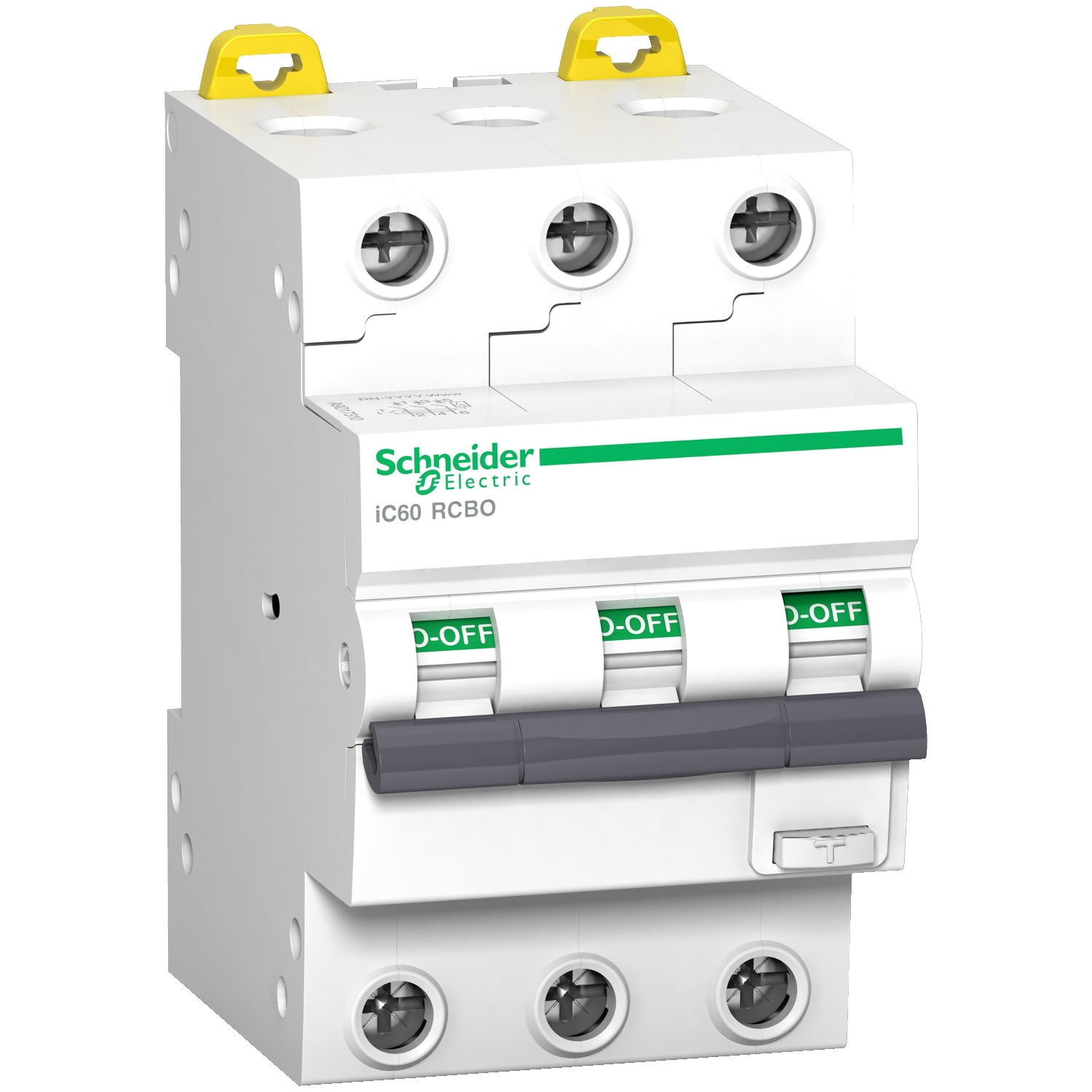

Acti9 iC60 RCBO - 3P - 25 A - C Curve - 10000A/15kA - 30 mA - A type

Acti9 iC60 RCBO - 3P - 25 A - C Curve - 10000A/15kA - 30 mA - A type by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £473.56 excl. VAT. Voltimum+ members earn 51 points per unit.

This Acti9 iC60 RCBO is a modular and reliable residual current breaker with overcurrent protection (RCBO). It is a 3P RCBO with 3 protected poles, rated current is 25A, and operating voltage is 220VAC to 240VAC. Breaking capacity at 220VAC to 240VAC is 10kA according to EN/IEC 61009-2-1. Breaking capacity at 220VAC to 240VAC is 15kA according to EN/IEC 60947-2. Electrical endurance goes up to 10000 cycles, and mechanical endurance goes up to 20000 cycles. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Device location in system is outgoer, and the earth leakage protection class is type A. This product is compliant with EN/IEC 60947-2 and EN/IEC 61009-2-1.

Product identifiers

SKU: A9D17325
EAN: 3606481157966
GTIN: 3606481157966
MPN: A9D17325

Voltimum+ Loyalty Programme Loyalty points: 51

Price: £ 473.56 Excl. VAT

Categories

RCBOs Switchgear & Circuit Protection Circuit Breakers

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss 2.88 W
Voltage type AC
Rated current 25 A
Rated voltage 400 V
Built-in depth 45 mm
Pollution degree 2
Rated fault current 0.03 A
Over voltage category 3
Release characteristic C
Number of poles (total) 3
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 3
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA
