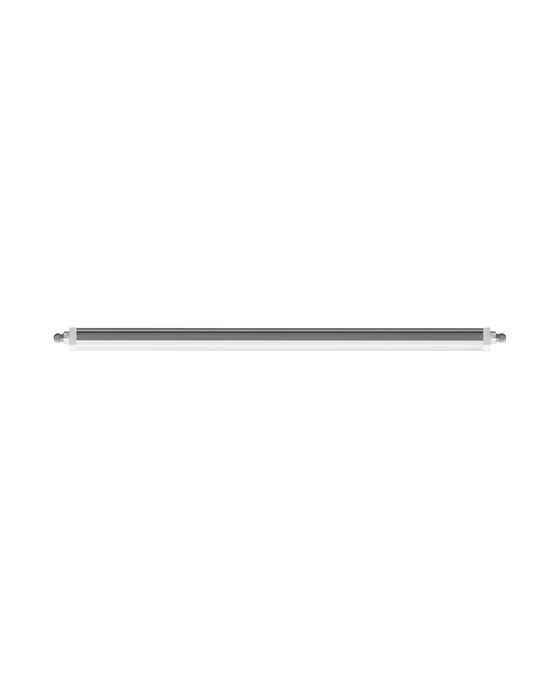

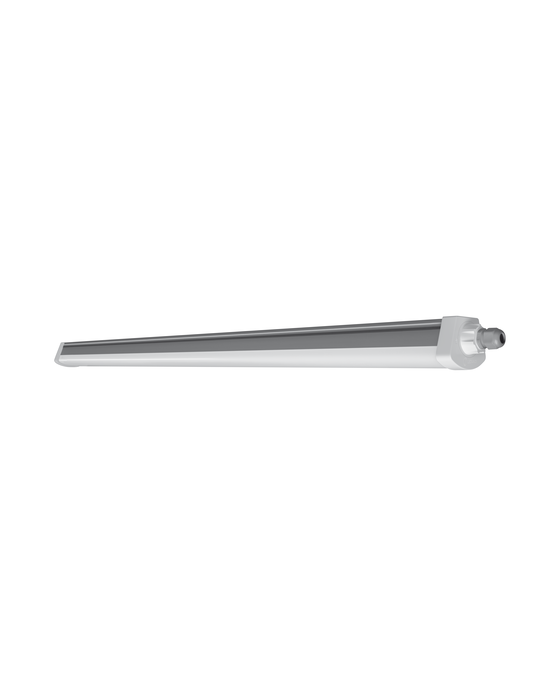

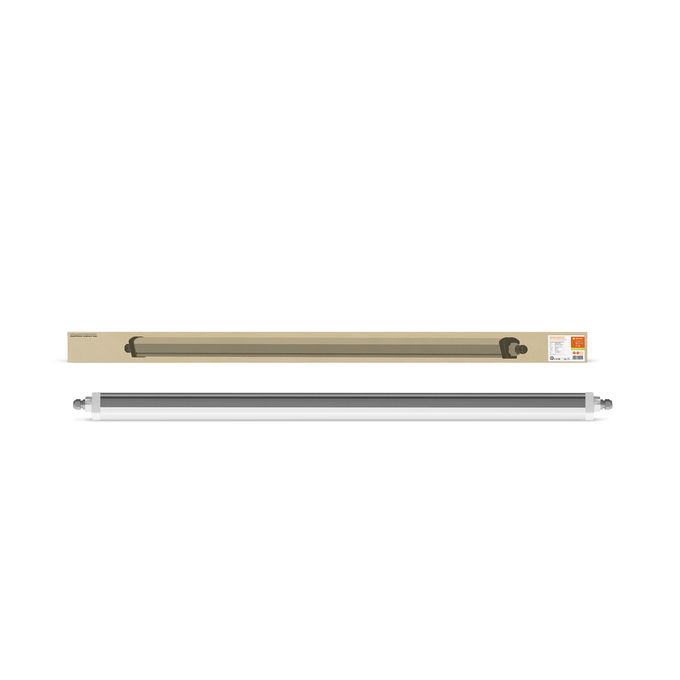

DP COMPACT 1200 44 W 4000K IP66 GR
1 / 5
DP COMPACT 1200 44 W 4000K IP66 GR
DP COMPACT 1200 44 W 4000K IP66 GR by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £80.56 excl. VAT.
Product benefits
- Uniform light distribution
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- Easy installation as mounting brackets can be positioned freely on the luminaire

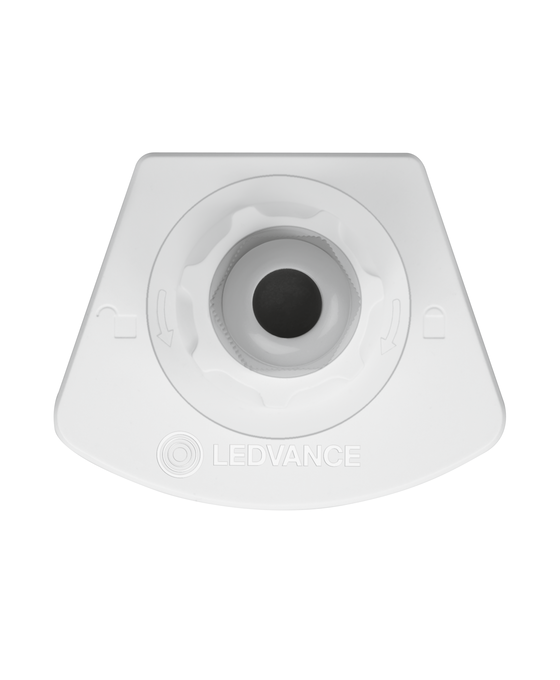

- Easy access to electrical terminal thanks to end caps with twist and lock mechanism
- Tool-free electrical connection due to push button connector
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 120 lm/W
- Type of protection: IP66
- Beam angle: 120°
- Through-wiring 3x1.5mm² already installed
- Polycarbonate housing
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4058075210042
EAN: 4058075210042
GTIN: 4058075210042
MPN: 4058075210042
Price: £ 80.56 Excl. VAT
Specifications
Electrical data
| Nominal wattage | 44.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 240 mA |
| Inrush current | 12 A |
| Inrush current time T h50 | 170 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 34 |
| Max. number of luminaires per miniature circuit breaker C10 | 29 |
