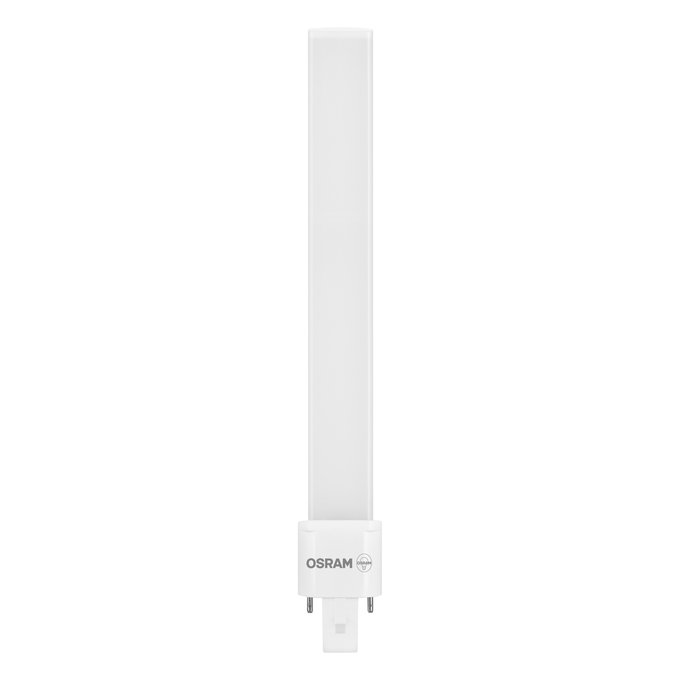

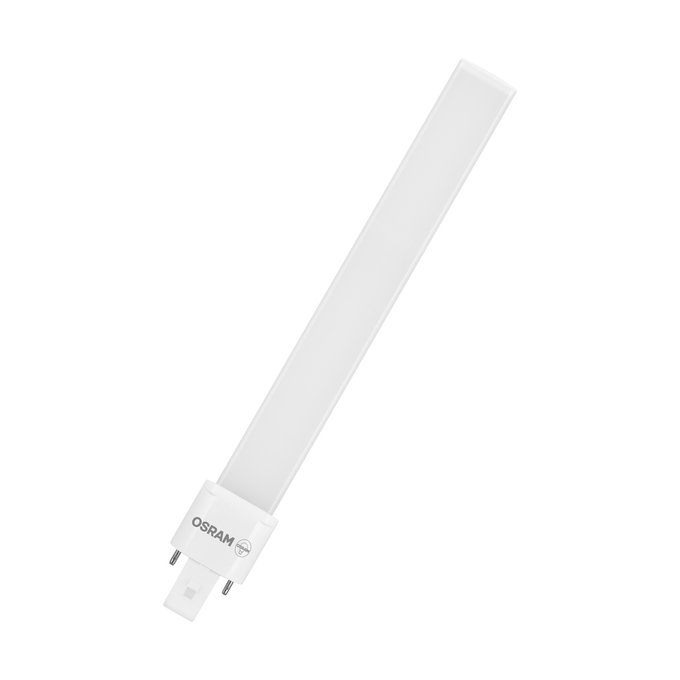

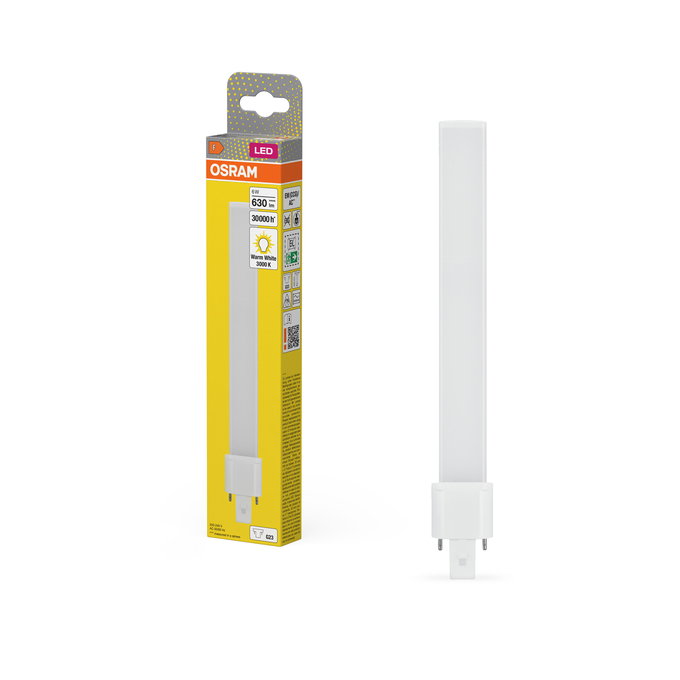

DULUX LED S11 EM & AC MAINS 6W 830 G23
DULUX LED S11 EM & AC MAINS 6W 830 G23
DULUX LED S11 EM & AC MAINS 6W 830 G23 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £7.65 excl. VAT.
Product benefits
- Easy installation
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- Supermarkets and department stores
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended two-pin plug-in G23 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Suitable for tandem operation.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Product identifiers
Price: £ 7.65 Excl. VAT
Specifications
Electrical data
| Nominal wattage | 6 W |
| Construction wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | Conventional control gear (CCG), AC |
| Claimed equiv. conventional lamp power | 11 W |
| Nominal current | 29 mA |
| Type of current | AC |
| Inrush current | 19.6 A |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – DULUX LED S EM
Extended installation guide – Installation instructions LED TUBE T8, T5 und DULUX LED 2026 10 EN
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – DULUX LED
Declarations of conformity UKCA – DULUX LED
Declarations of conformity UKCA – LEDTUBE
PRODUCT DATASHEET – DULUXSLEDEM&ACMains6W3 000Kde
