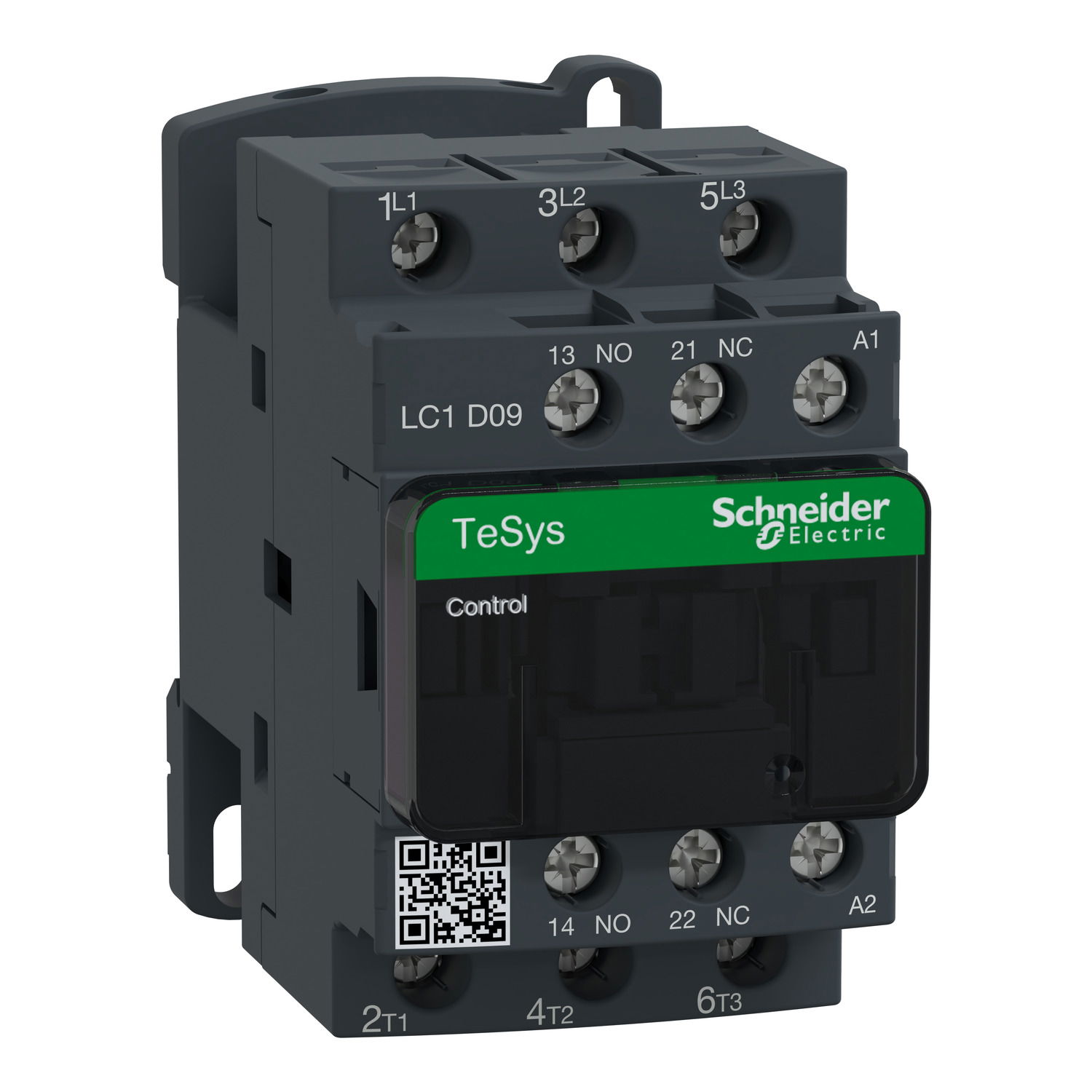

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 2 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 3 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 4 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 5 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 6 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 7 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 8 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 9 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 10 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 11 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 12 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 13 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 14 of 15

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil – Image 15 of 15

1 / 15

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil

Name: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil
Brand: Schneider Electric
SKU: LC1D09N7
Availability: InStock

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 415 V AC coil by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £29.77 to £48.48 excl. VAT. Voltimum+ members earn 6 points per unit.

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 415V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1D09N7

EAN: 3389110348897

GTIN: 3389110348897

MPN: LC1D09N7

Loyalty points: 6

Price range: £ 29.77 - £ 48.48 Excl. VAT

Specifications

Depth	86 mm
Width	45 mm
Height	77 mm
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	AC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	4 kW
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	25 A
Rated operation current Ie at AC-3, 400 V	9 A
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
