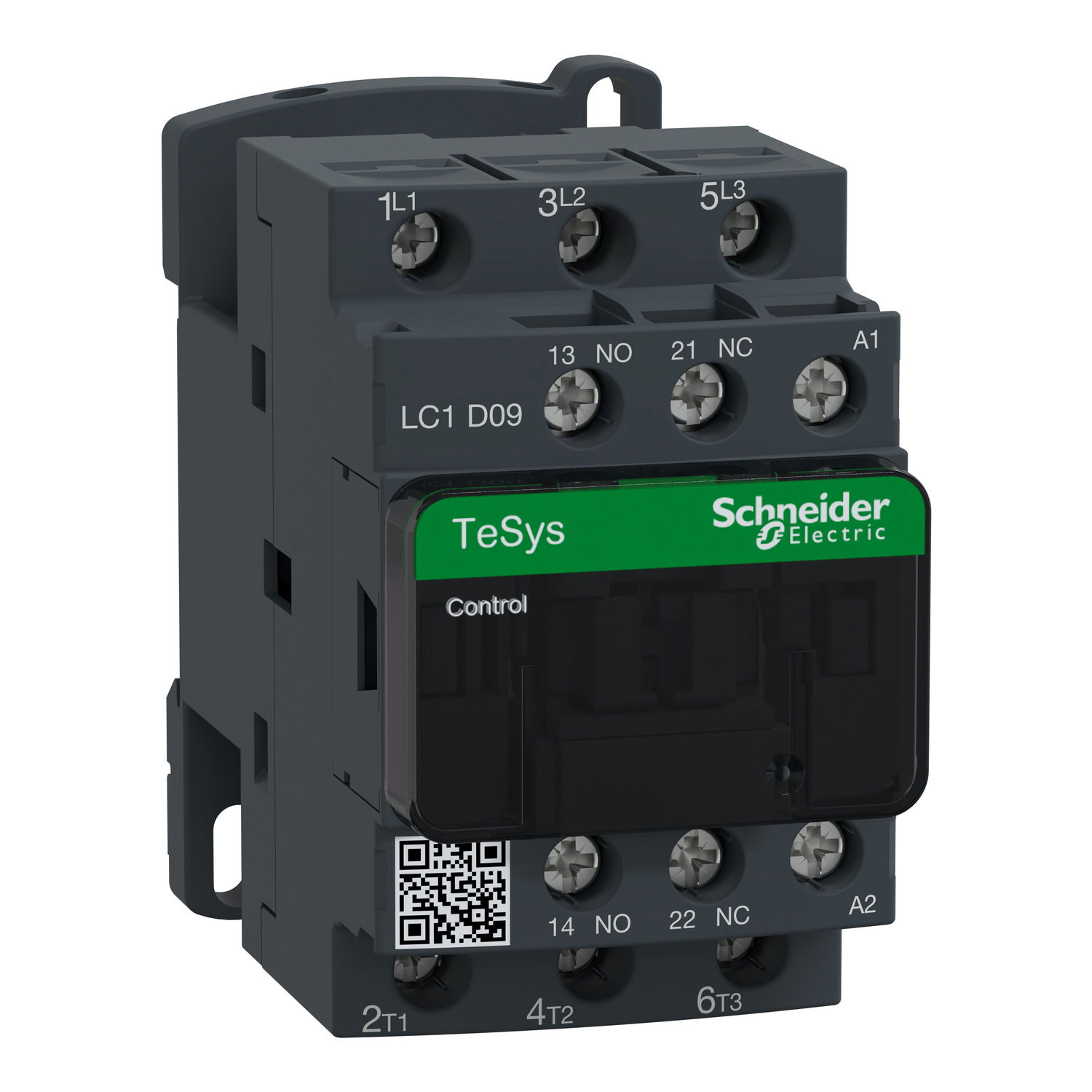

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 100 V AC coil
1 / 6
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 100 V AC coil
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 100 V AC coil by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £52.92 to £53.45 excl. VAT. Voltimum+ members earn 7 points per unit.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 100V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D09K7
EAN: 3389110348859
GTIN: 3389110348859
MPN: LC1D09K7
Loyalty points:
7
Price range: £ 52.92 - £ 53.45 Excl. VAT
ETIM group
Specifications
| Depth | 86 mm |
| Width | 45 mm |
| Height | 77 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC |
