DULUX LED L24 HF & AC MAINS 12W 840 2G11
DULUX LED L24 HF & AC MAINS 12W 840 2G11
DULUX LED L24 HF & AC MAINS 12W 840 2G11 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £21.01 excl. VAT.
Product benefits
- Easy installation
- Not suitable for operation with conventional control gear
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Shops
- Hotels, restaurants
- Industry
Product features
- LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended four-pin plug-in 2G11 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
- Not suitable for operation with conventional control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Product identifiers
Price: £ 21.01 Excl. VAT
Specifications
Electrical data
| Nominal wattage | 12 W |
| Construction wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | ECG, AC Mains 1) |
| Claimed equiv. conventional lamp power | 24 W |
| Nominal current | 52 mA |
| Type of current | AC |
| Inrush current | 6 A |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – DULUX LED L HF
Extended installation guide – Installation instructions LED TUBE T8, T5 und DULUX LED 2026 10 EN
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – DULUX LED
Declarations of conformity UKCA – DULUX LED
PRODUCT DATASHEET – DULUXLLEDHF&ACMains12W 4000Kde
Product Images And Graphics

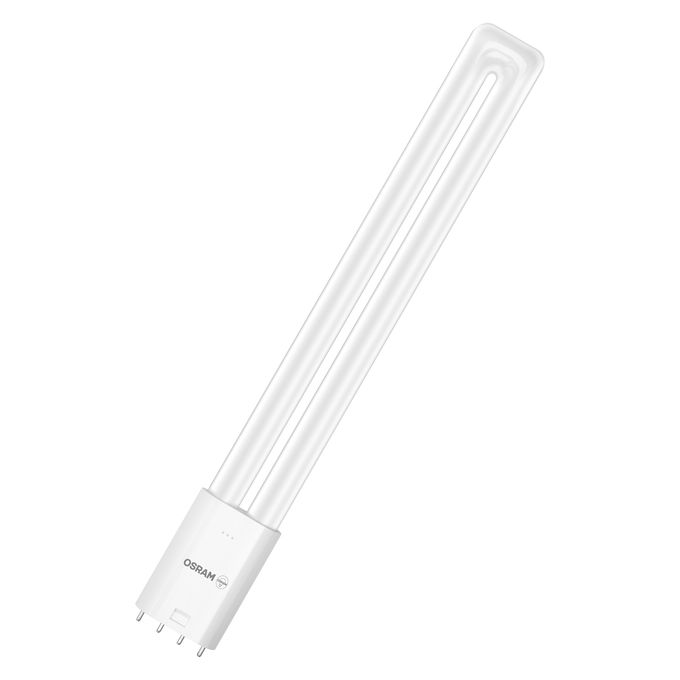

Product image: white background, diagonal with OSRAM logo – DULUX L 24 LED 12W 230 V HF OSRAM
