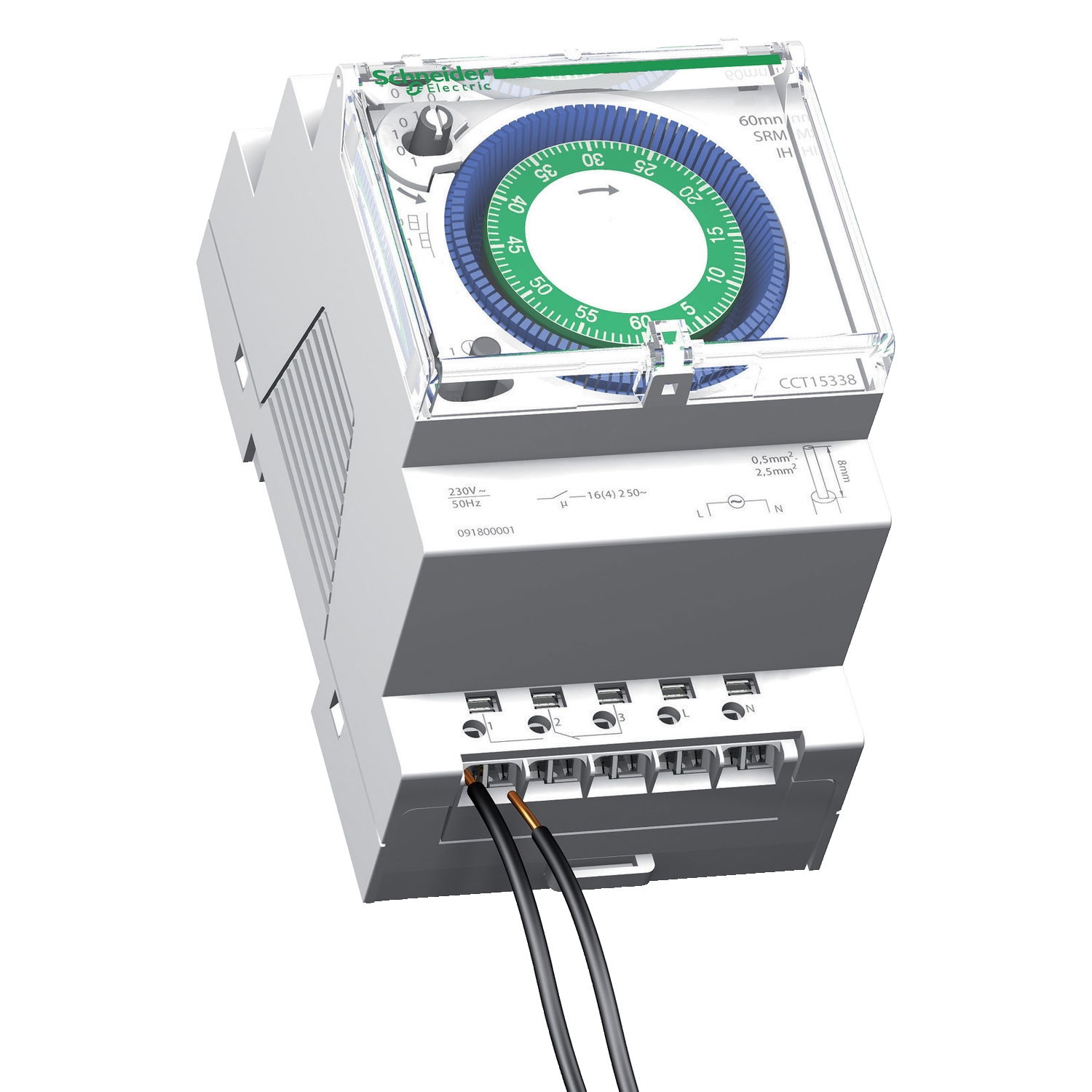

Acti9 - IH - mechanical time switch - 60 min - without memory

Acti9 - IH - mechanical time switch - 60 min - without memory by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £169.28 excl. VAT. Voltimum+ members earn 27 points per unit.

Acti 9 Mechanical time switch IH 60mn 1c SRM. Automatically switch On and Off loads according to the program entered by the user they operate on an hourly cycle. The same program is repeated hour after hour (IH 60mn). The program can be overriden On. Voltage rating (Ue): 230 V AC, +10 %,-15 %, 50/60 Hz. Consumption 1 VA. Operating temperature -20°C to +55°C. Width (9 mm modules): 6. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. 4 A cos Phi 0.6. Number of switching operations: 48 On - 48 Off. Switching accuracy: ±1 s per day at 20°C. Programming by Captive segments: 96.

Product identifiers

SKU: CCT15338
EAN: 3606480179563
GTIN: 3606480179563
MPN: CCT15338

Voltimum+ Loyalty Programme Loyalty points: 27

Price: £ 169.28 Excl. VAT

Categories

Switchgear & Circuit Protection Low Voltage Switchgear Switchgear LED Lighting & Luminaires Lighting Controls

ETIM group

Devices for distribution board-/surface mounting

Specifications

Depth 66 mm
Width 54 mm
Height 90 mm
24 h program no
Contact type -
60 min program yes
Annual program no
Supply voltage
Mounting method DIN rail
Autonomy in hours 0
Mains synchronous no
Number of channels 1
Program shift divide 2 -
Frequency supply voltage
Degree of protection (IP) IP20
Suitable for manual operation yes
Shortest switching time channel 1 0.625 min
Width in number of modular spacings 3
Automatic switching summer-/winter time no
