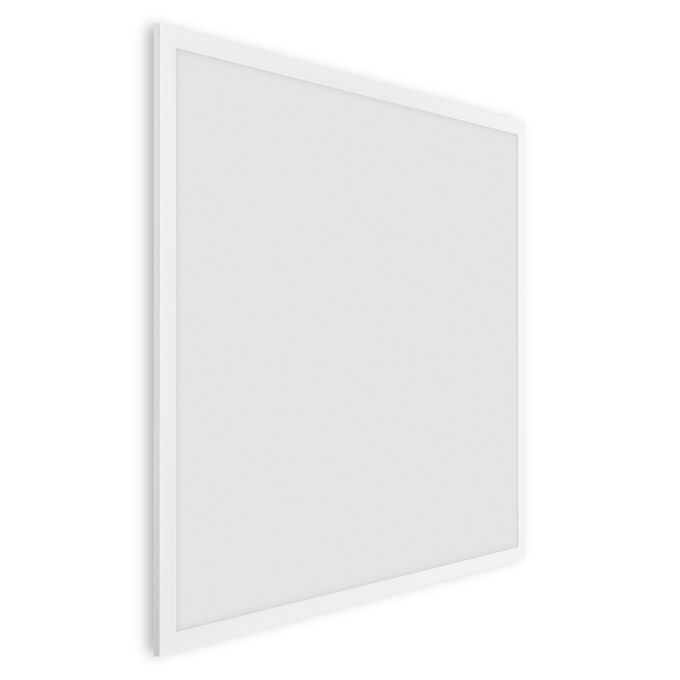

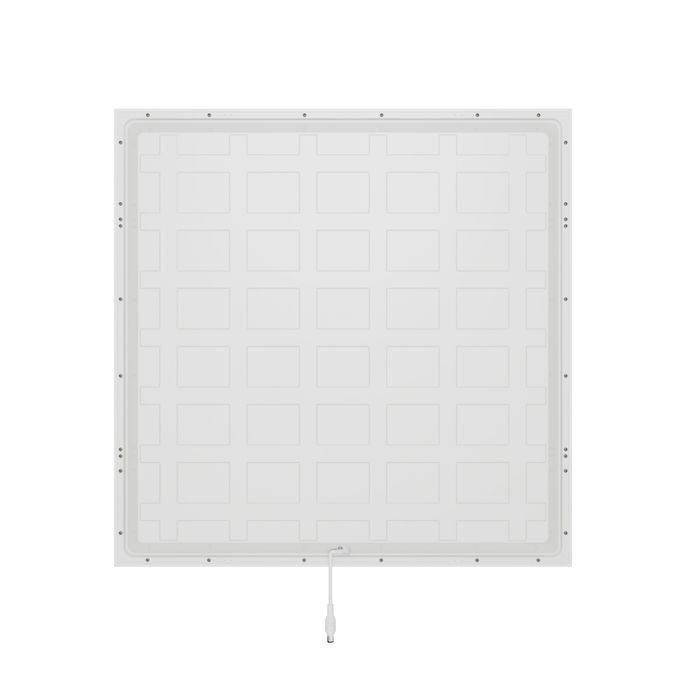

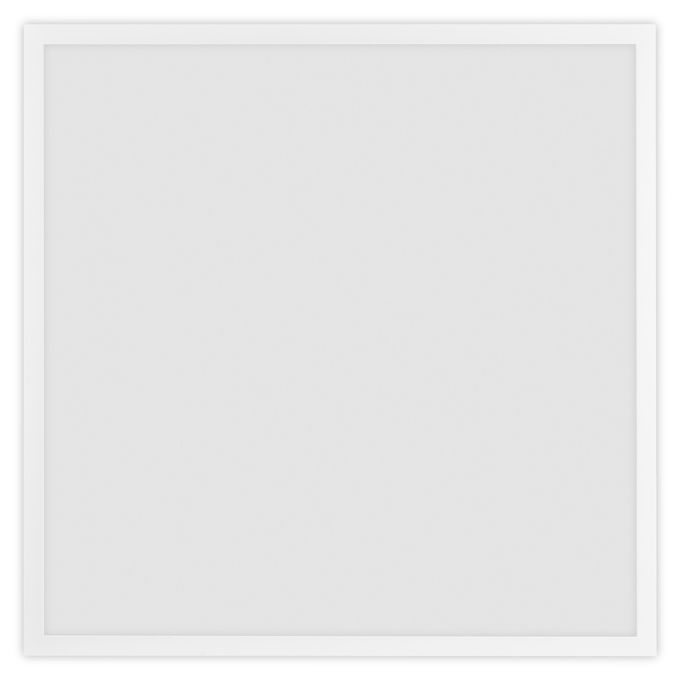

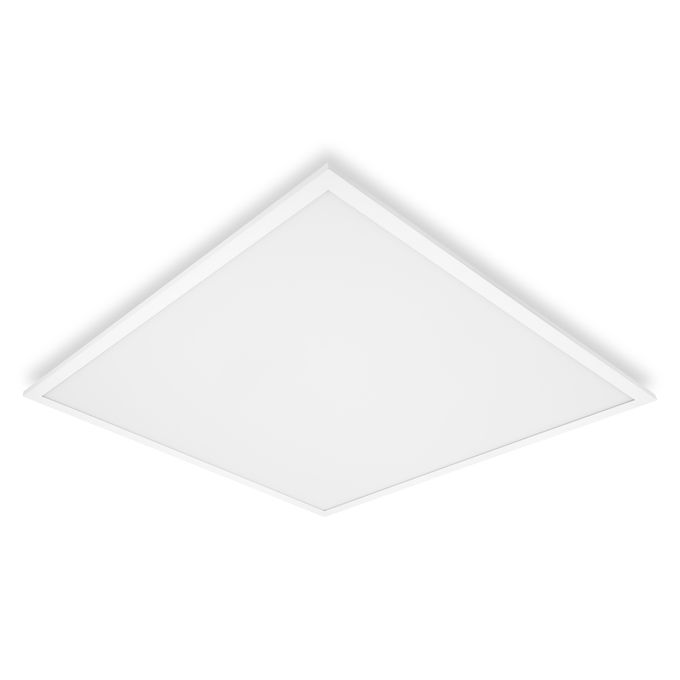

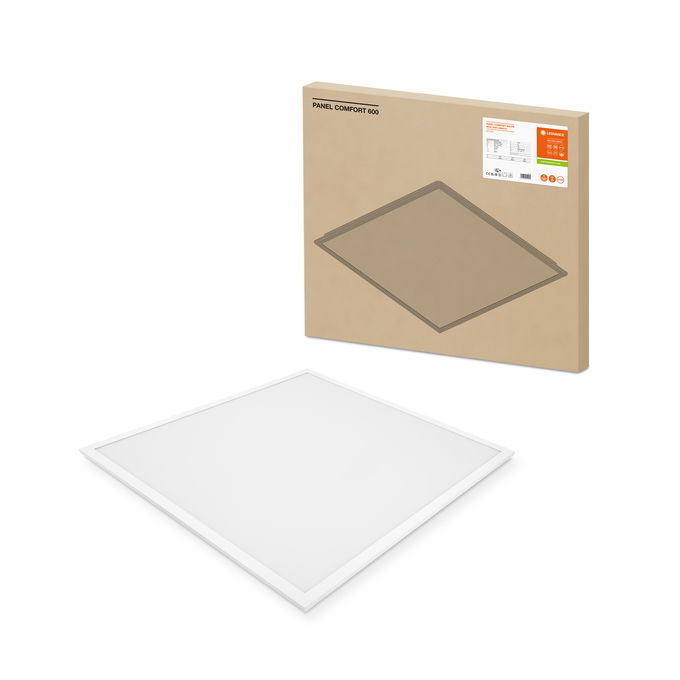

PL CMFT 600 P 28W 840 PS
PL CMFT 600 P 28W 840 PS
PL CMFT 600 P 28W 840 PS by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £64.43 excl. VAT.
Product benefits
- Highly versatile due to selectable lumen steps (Multi Lumen) on the driver
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 130 lm/W
- High color consistency with SDCM 3
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
- 5 years guarantee
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Luminaire versions with IoT-ready DALI-2 driver available
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Connector box with 5-pole terminal included
- Security rope for luminaire included
- Security brackets preinstalled

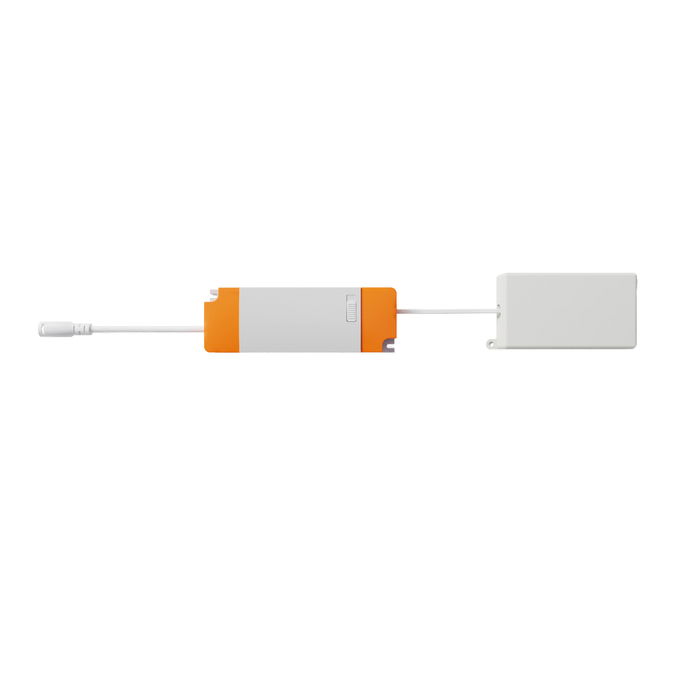

- External control gear included
- Suitable for use with separate Emergency Conversion Box
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
Price: £ 64.43 Excl. VAT
ETIM group
Specifications
Electrical data
| Nominal wattage | 28 W / 25 W / 22 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 125.000 mA |
| Inrush current | 9 A |
| Inrush current time T h50 | 690 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| Max. number of luminaires per miniature circuit breaker C10 | 15 |
