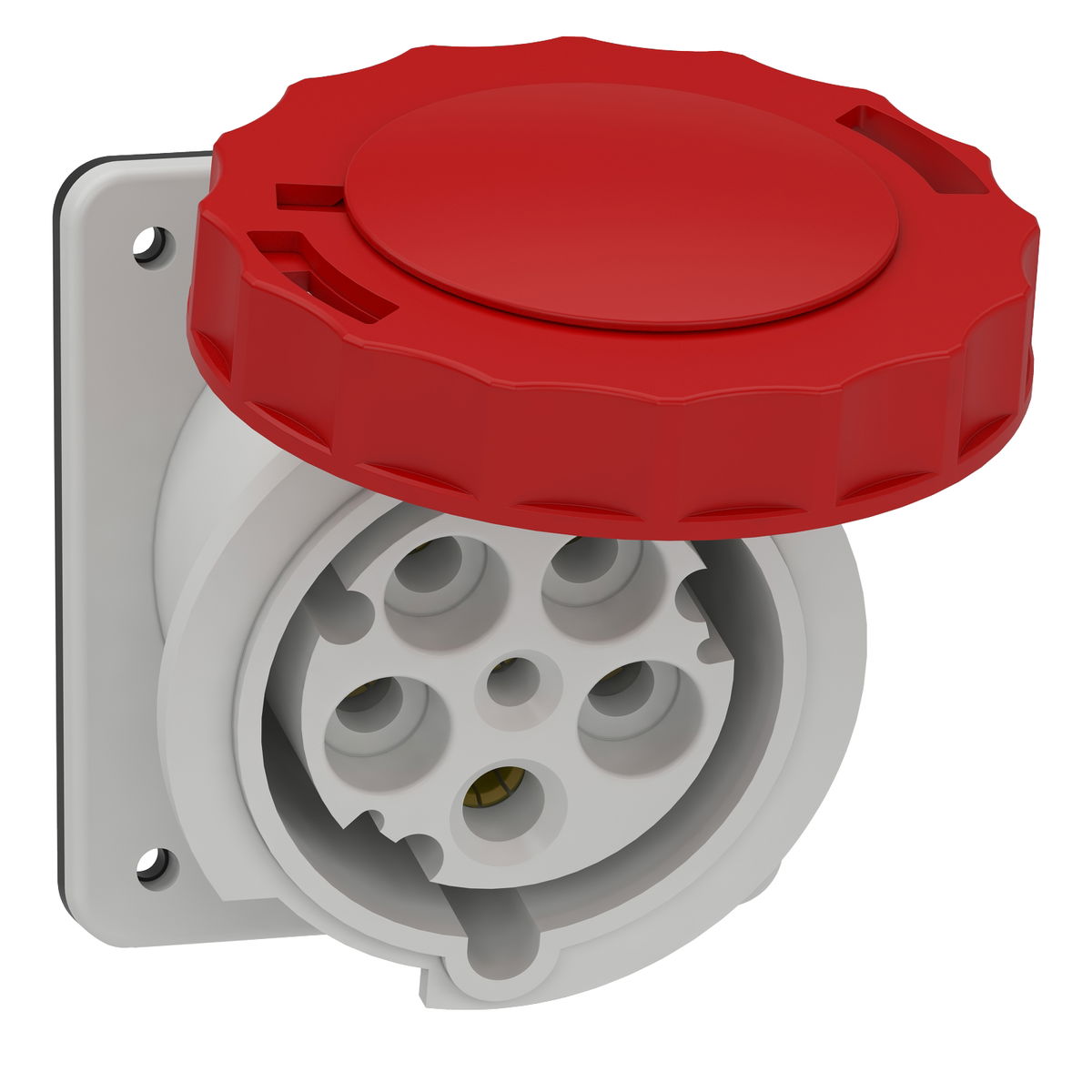

PratiKa industrial socket - 63 A - 3P + N + E - 380...415 V AC - IP67

1 / 2

PratiKa industrial socket - 63 A - 3P + N + E - 380...415 V AC - IP67

Link copied

SKU
EAN
GTIN
MPN

PratiKa industrial socket - 63 A - 3P + N + E - 380...415 V AC - IP67 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £376.49 excl. VAT. Voltimum+ members earn 47 points per unit.

This Mureva PK socket with completely loosened captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 100mm x (H) 107mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm² to 25mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Loyalty points: 47

Price: £ 376.49 Excl. VAT

Specifications

Material	Plastic
RAL-number	7035
IEC-amperage	63 A
Rated voltage
Military model	no
Number of poles	5
Rated frequency
Contact material	-
Insert direction	Angled
Connection system	Screwed terminal
Clock hour position	6 h
Flange size vertical	107 mm
Identification colour	Red
Flange size horizontal	100 mm
Degree of protection (IP)	IP67
Surface treatment contacts	-
Drill hole distance vertical	85 mm
Drill hole distance horizontal	77 mm
Voltage according to EN 60309-2	400 V (50+60 Hz) red
Amperage according to UL/CSA (for UL-version)	-
