Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

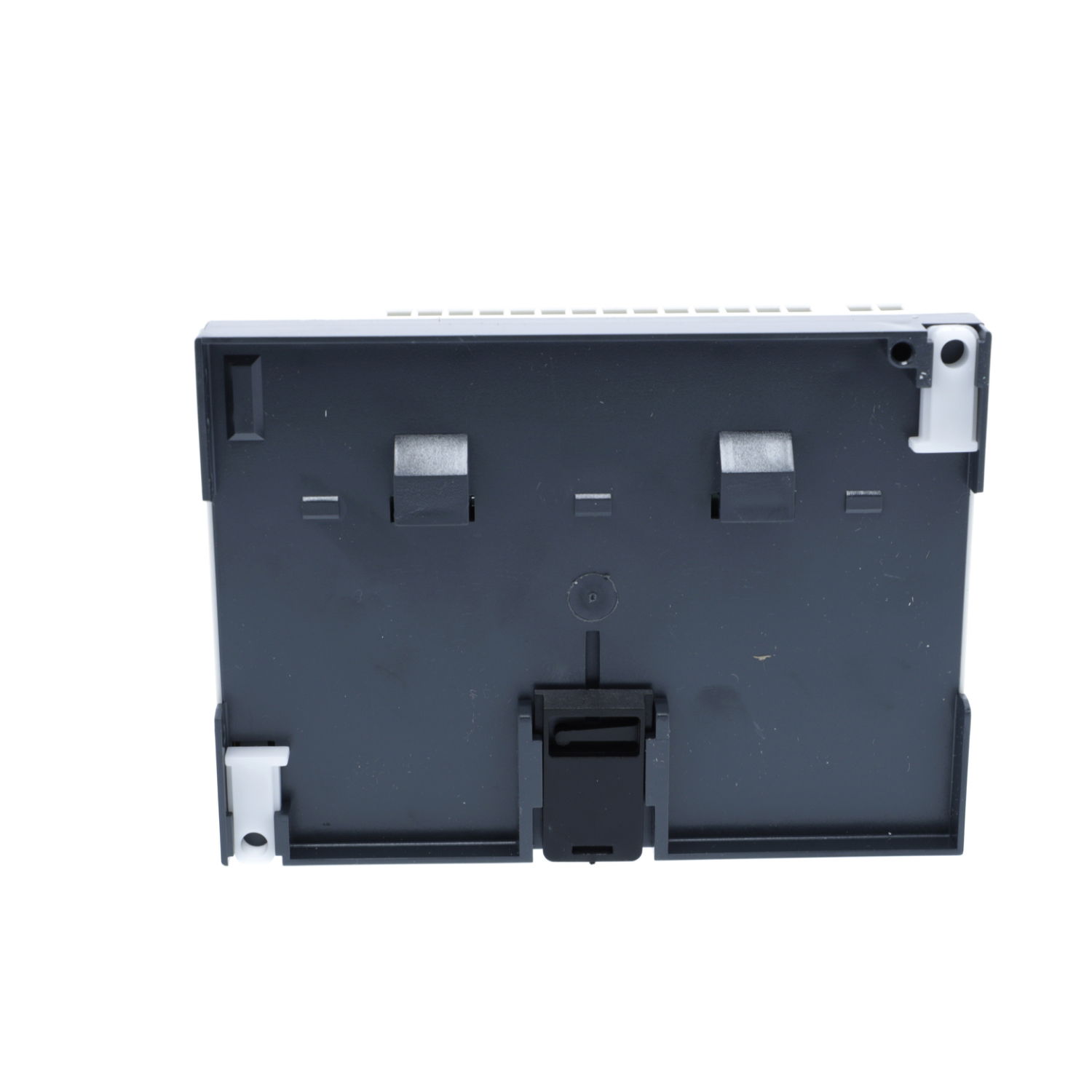

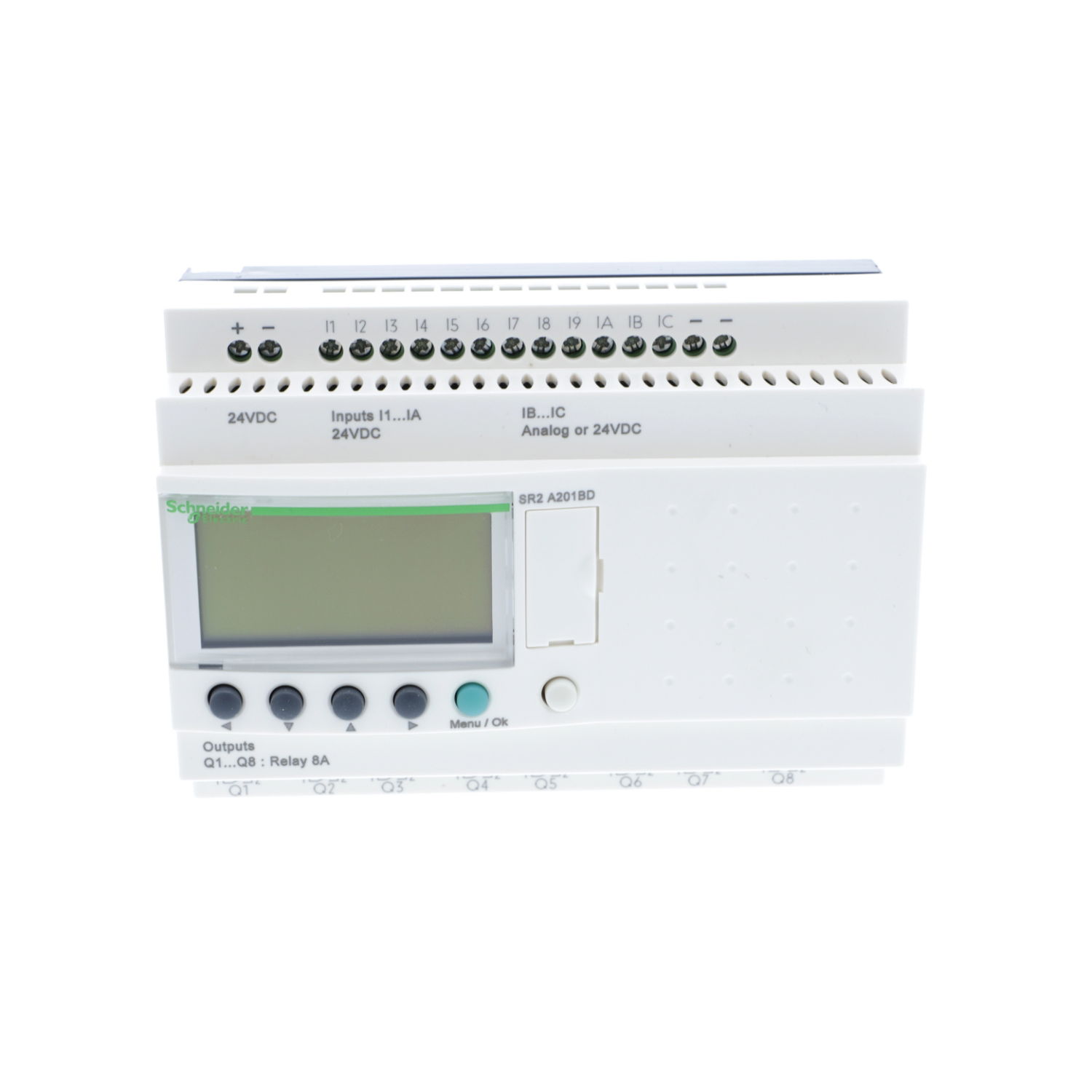

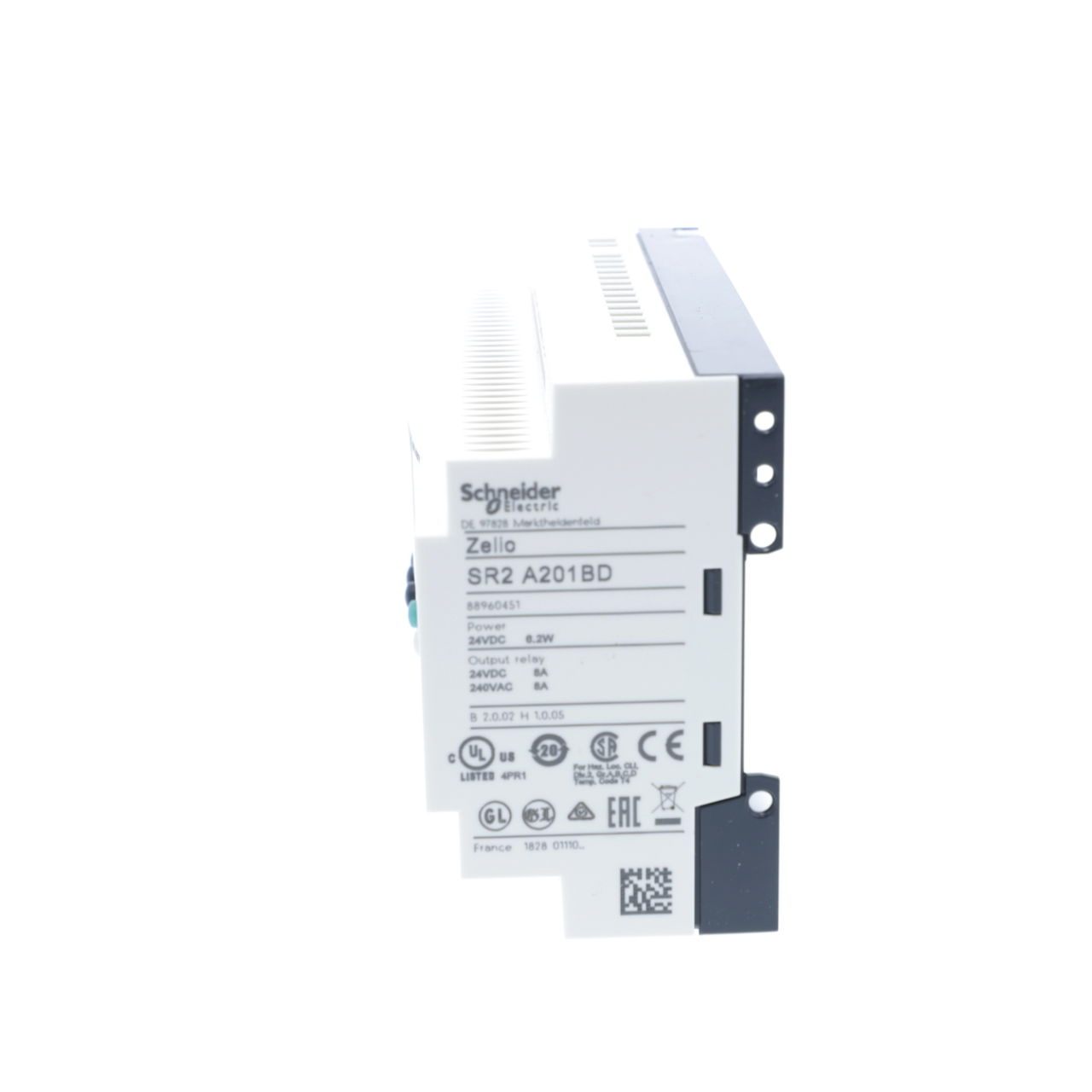

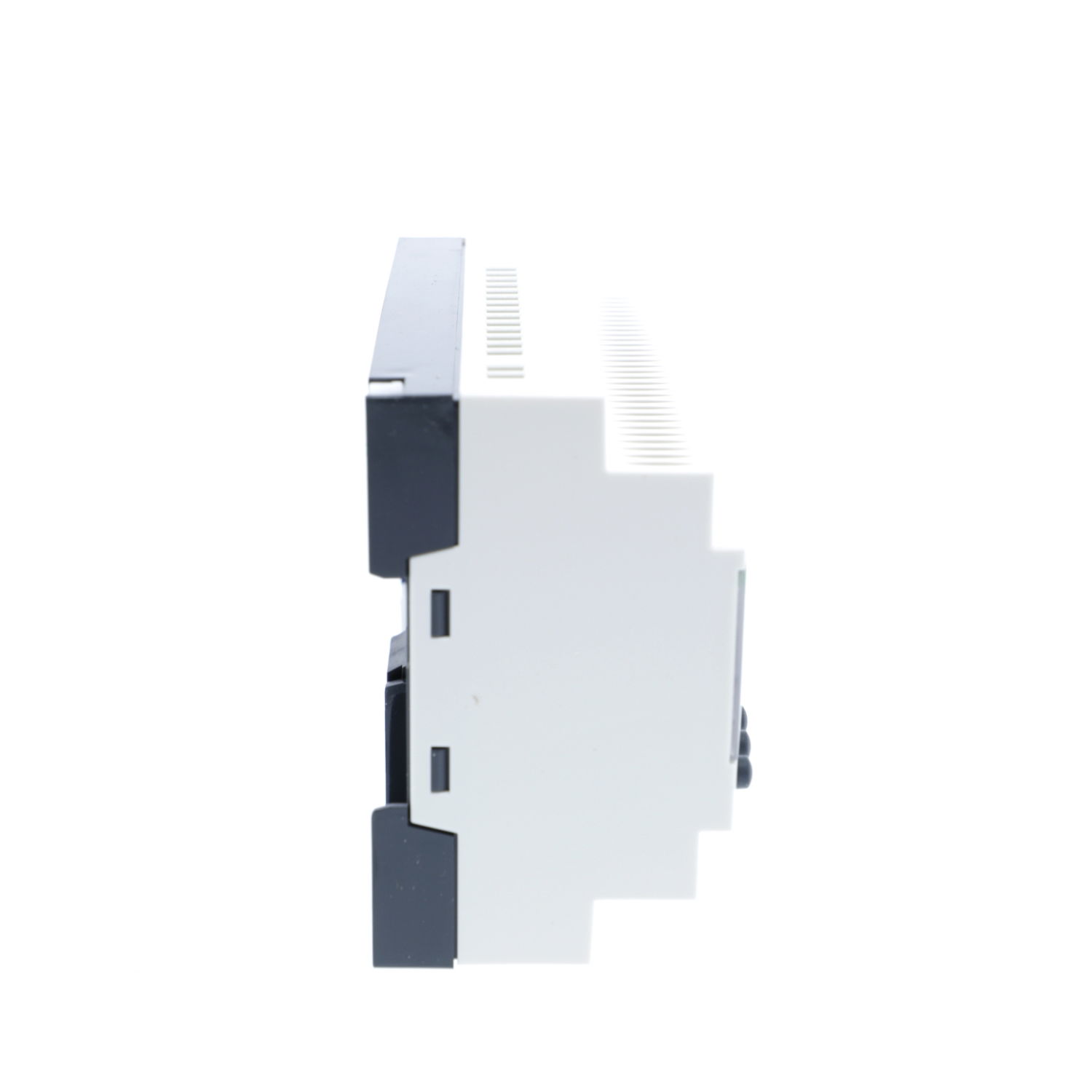

Compact smart relay Zelio Logic - 20 I O - 24 V DC - no clock - display

Compact smart relay Zelio Logic - 20 I O - 24 V DC - no clock - display by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 1 more. It is currently in stock at all of them. Trade prices range from £185.28 to £246.44 excl. VAT. Voltimum+ members earn 1 point per unit.

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with a display and without a clock, and checks program memory on each power-up. Zelio Logic controller makes automation easy. It offers 8 relay outputs with normally opened contact and 12 discrete inputs. Rated at 24V DC, it draws up to 100mA and consumes 6W without extension, with IP20/IP40 protection. It weighs 0.38kg. Complies with EN/IEC standards for EMC and environmental resilience, including surge, electrostatic discharge, vibration, and power immunity tests. It is delivered in 1 package (PCE type). It is mounted on a 35mm DIN rail. Simple to select, install and program, Zelio Logic is suitable for all your applications. Easy to use, Zelio Logic offers a genuine alternative to solutions based on cabled logic or specialized cards.

Product identifiers

SKU: SR2A201BD
EAN: 3389110549416
GTIN: 3389110549416
MPN: SR2A201BD

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 185.28 - £ 246.44 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Depth 59.5 mm
Width 124.6 mm
Height 90 mm
Expandable no
Redundancy no
Basic device yes
With display yes
IO link master no
Power consumption 6 W
Switching current 8 A
Radio standard GSM no
Radio standard UMTS no
With optical interface no
Front built-in possible yes
Supply voltage AC 60 Hz
Radio standard Bluetooth no
Number of analogue inputs 2
Number of analogue outputs 0
SIL according to IEC 61508 None
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of interfaces PROFINET 0
Voltage type (supply voltage) DC
Number of HW-interfaces RS-232 1
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for INTERBUS no
Appendant operation agent (Ex ia) no
Explosion safety category for gas None
Supporting protocol for PROFIsafe no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Supporting protocol for other bus systems no
Number of HW-interfaces industrial Ethernet 0
Certified for UL hazardous location class II no
Performance level according to EN ISO 13849-1 None
Certified for UL hazardous location division 2 no
Certified for UL hazardous location group D (propane) no
Certified for UL hazardous location group C (ethylene) no
Certified for UL hazardous location group E (metal dusts) no
Certified for UL hazardous location group G (non-conductive dusts) no

Documents

Safety Data Sheet (SDS or MSDS)

SDS for Zelio offers with battery

Open

Declaration of Conformity (Sustainability)

SR2A201BD REACh Regulation

Open

User guide

Zelio Logic Programming Guide

Open

Instruction sheet

SR2A... / SR2B... Logic compact module Zelio with screen

Open

Product data sheet

Open

Catalog

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

Open

Declaration of Conformity (Sustainability)

SR2A201BD EU RoHS Directive

Open

Declaration of conformity

Zelio SR2 SR3 DoC

Open
