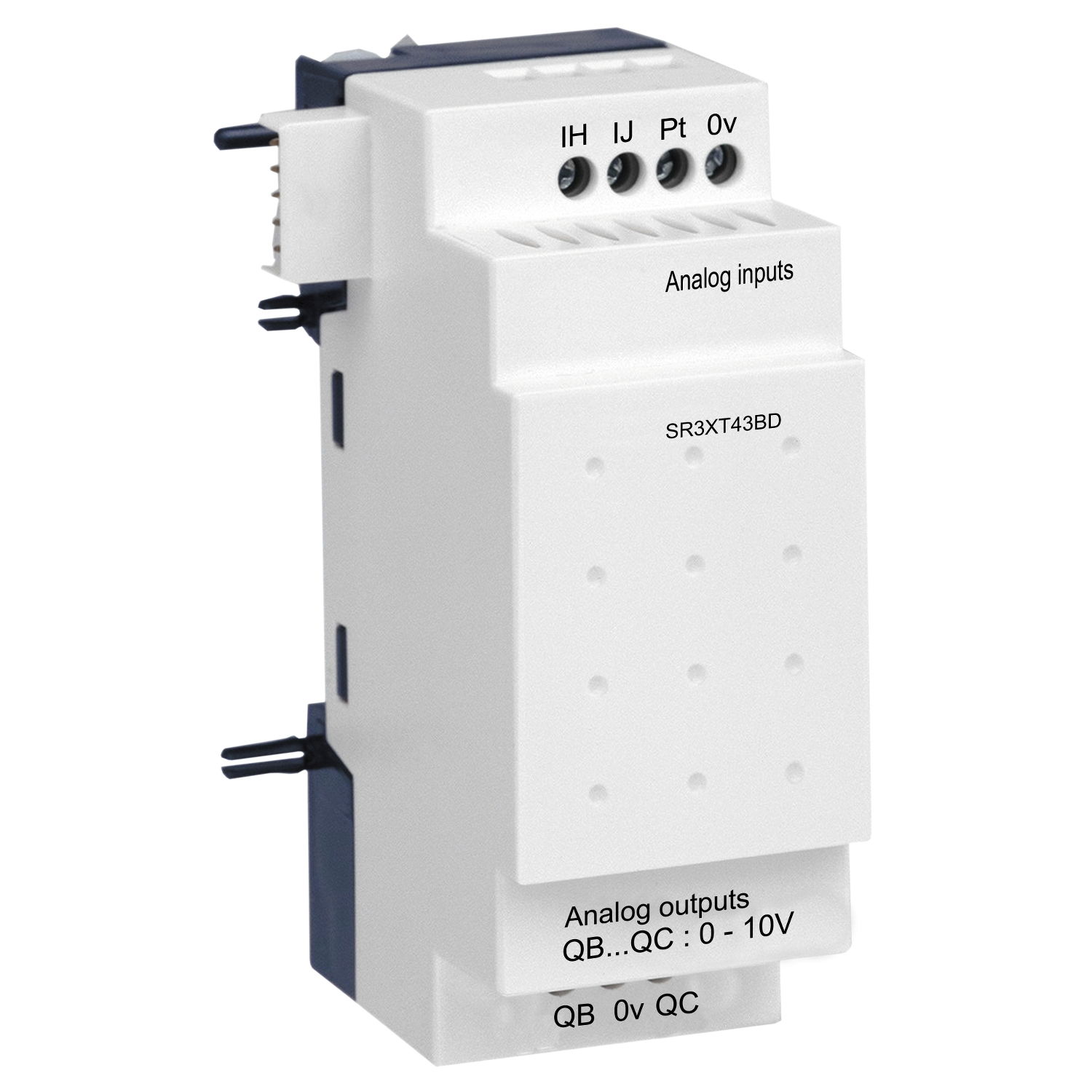

Analogue I/O extension module - 4 I O - 24 V DC - for Zelio Logic

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The analogue I/O extension module provides 2 input/outputs. It is an extension module with an analogue output range of 0 to 10V and a maximum load current of 10mA for analogue output. It provides 10bit on the input range and 10bit on the output range. The temperature probe is Pt 100, 3-wire conforming to IEC 751. It is furnished with screw terminal for electrical connections. It is an IP20 and IP40 rated product. It weighs 0.11kg. This product meets EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 60068-2-27 Ea standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
