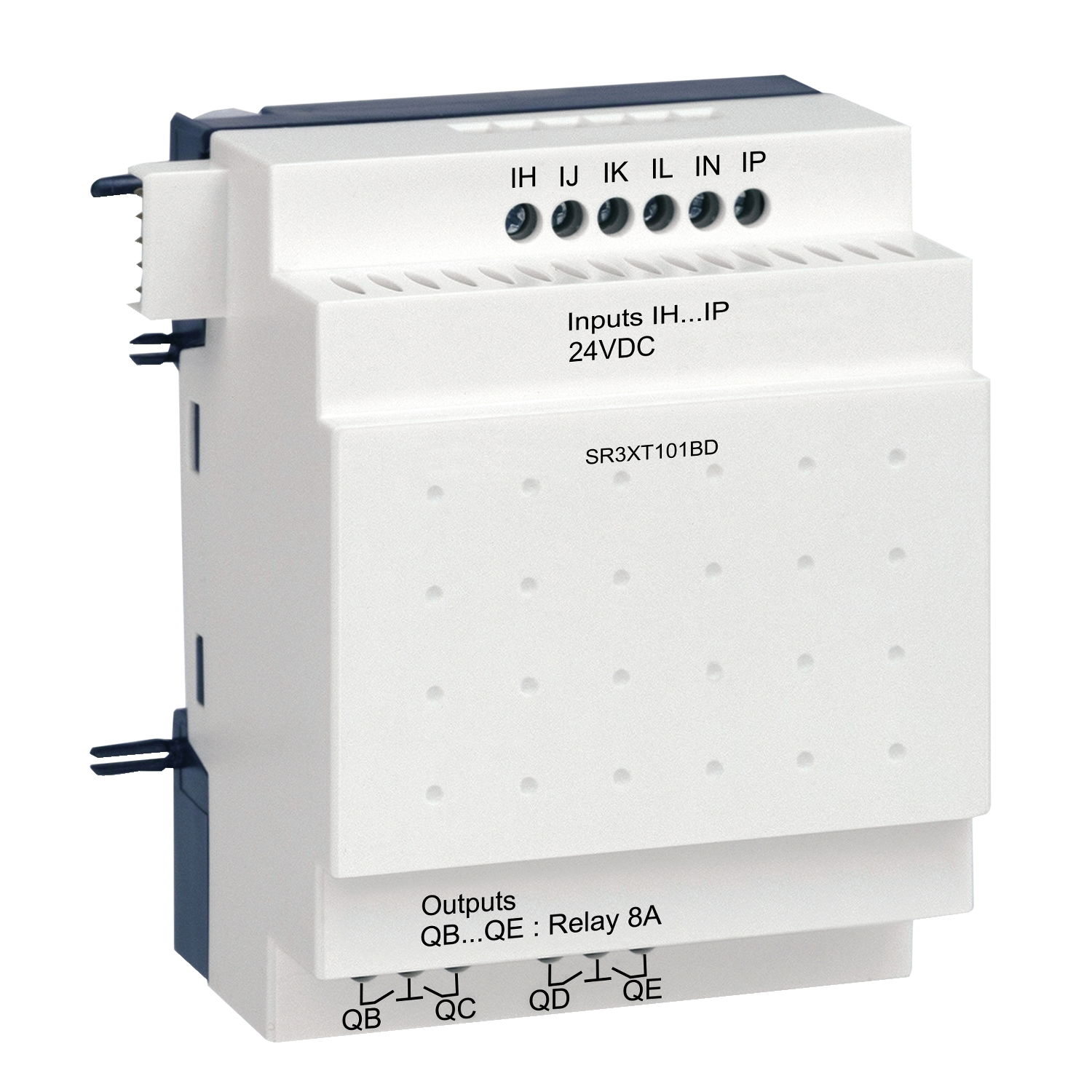

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic

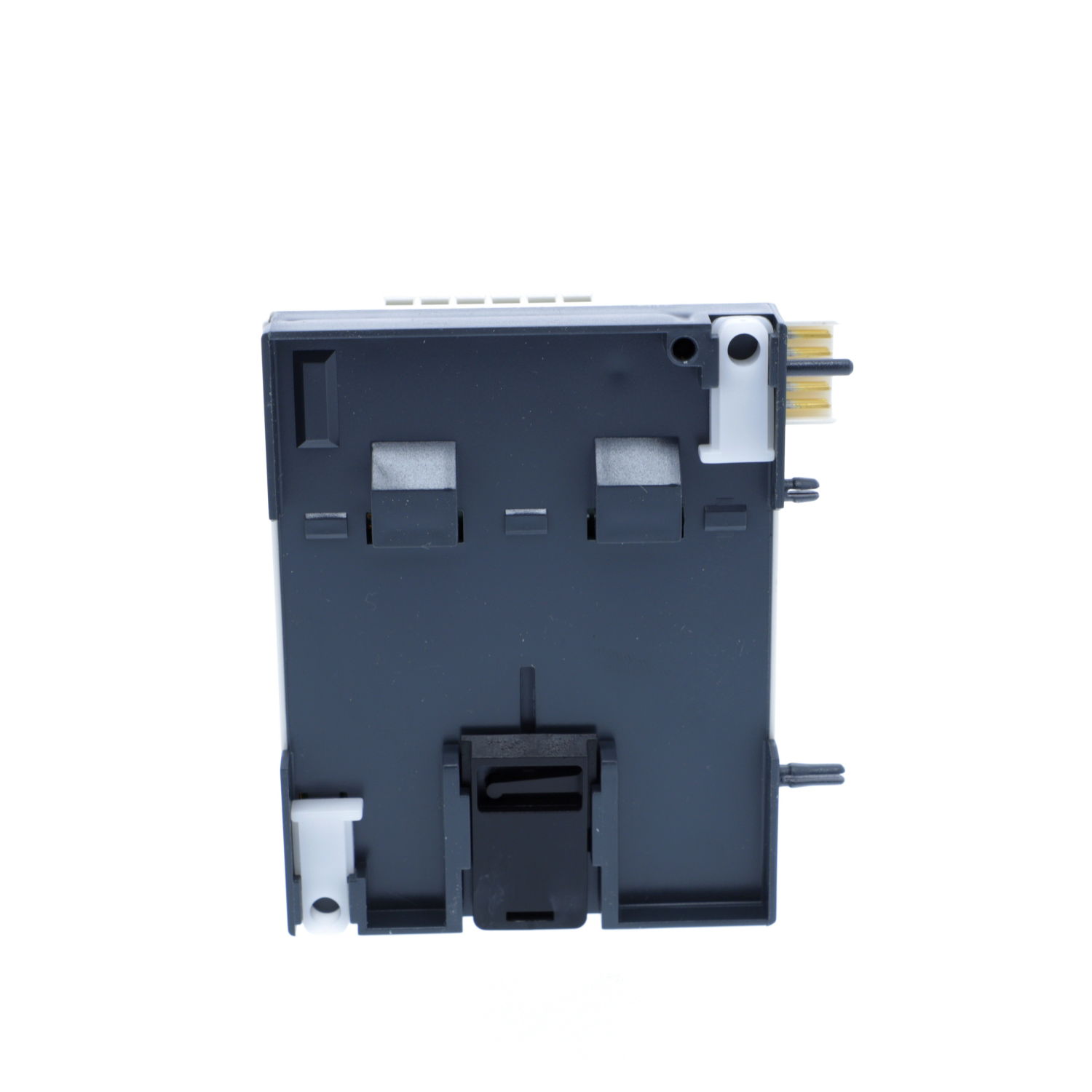

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 2 of 14

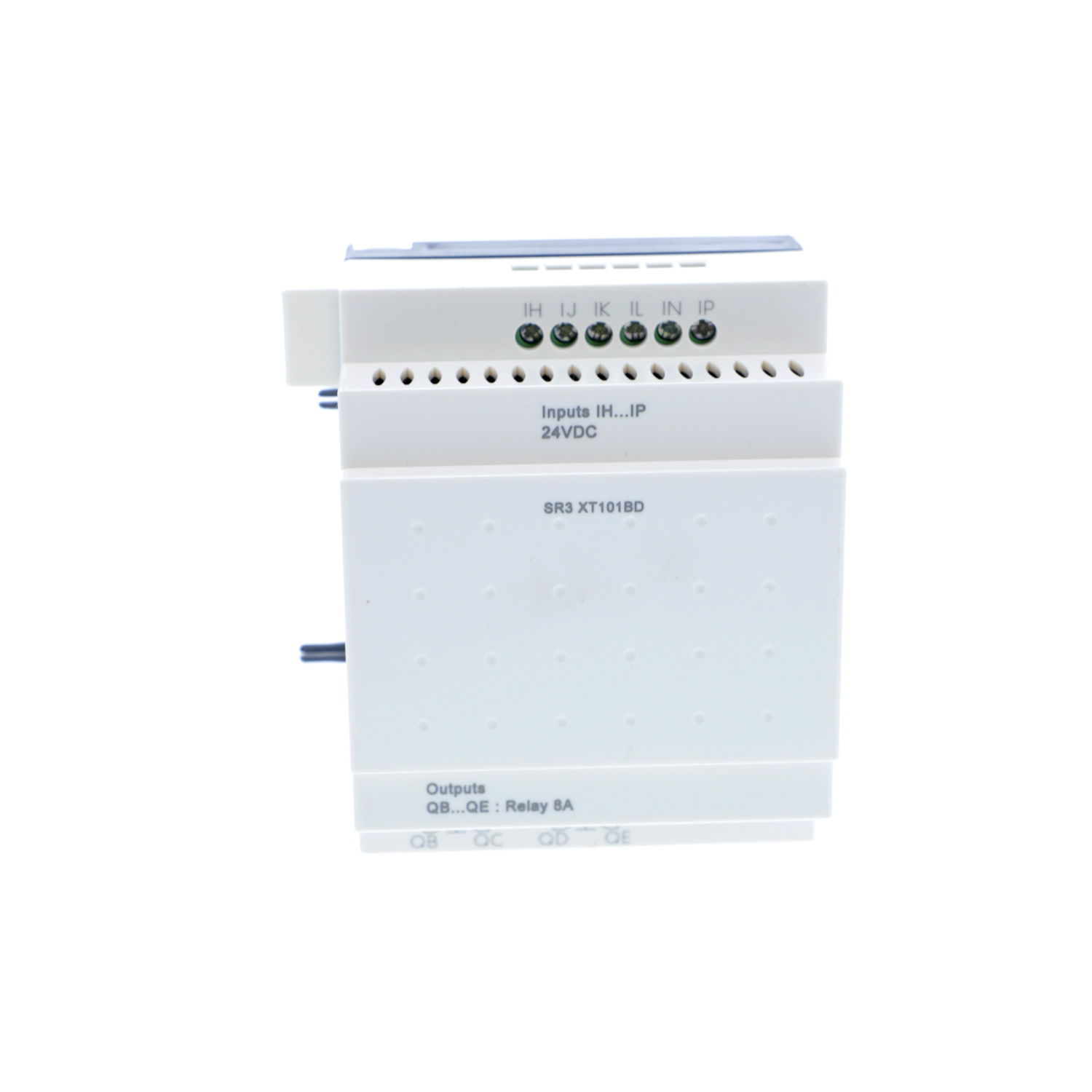

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 3 of 14

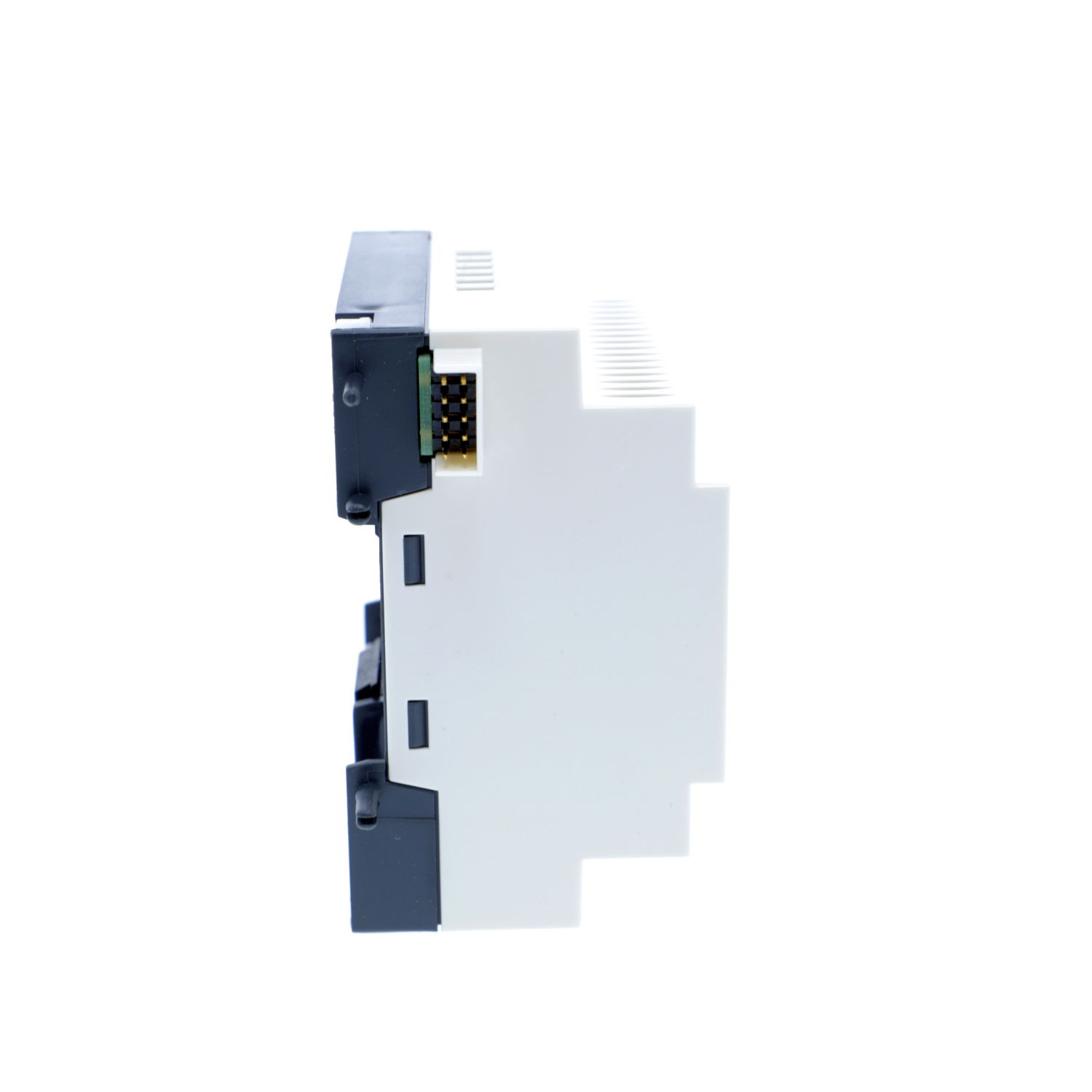

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 4 of 14

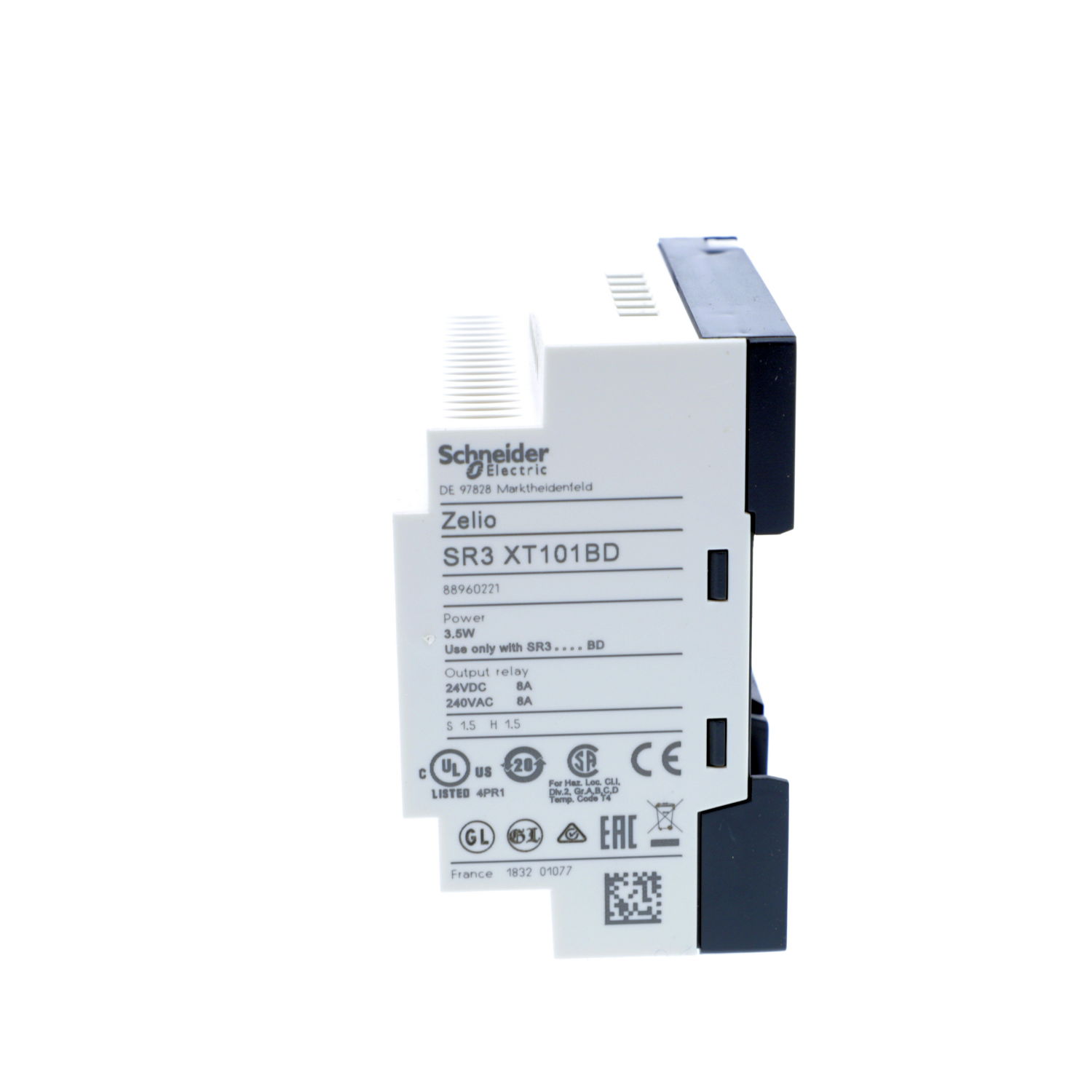

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 5 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 6 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 7 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 8 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 9 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 10 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 11 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 12 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 13 of 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic – Image 14 of 14

1 / 14

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic

Name: Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic
Brand: Schneider Electric
SKU: SR3XT101BD
Availability: InStock

Discrete I/O extension module - 10 I O - 24 V DC - for Zelio Logic by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Farnell, RS Components, Rexel Group and 1 more. It is currently in stock at 3 of them. Trade prices range from £78.56 to £79.35 excl. VAT. Voltimum+ members earn 10 points per unit.

This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 10 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.

Product identifiers

SKU: SR3XT101BD

EAN: 3389110550085

GTIN: 3389110550085

MPN: SR3XT101BD

Loyalty points: 10

Price range: £ 78.56 - £ 79.35 Excl. VAT

Specifications

Depth	59.5 mm
Width	72 mm
Height	90 mm
Expandable	no
Redundancy	no
Basic device	yes
With display	no
IO link master	no
Expansion device	yes
Power consumption	1.1 W
Supply voltage DC
Switching current	8 A
With relay output	yes
Radio standard GSM	no
Radio standard GPRS	no
Radio standard UMTS	no
Rack-assembly possible	no
With optical interface	no
With time switch clock	no
Front built-in possible	yes
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Number of digital inputs	6
Radio standard Bluetooth	no
Degree of protection (IP)	IP20
Number of analogue inputs	0
Number of digital outputs	4
Number of analogue outputs	0
Radio standard WLAN 802.11	no
SIL according to IEC 61508	None
Suitable for rail mounting	yes
Number of HW-interfaces USB	0
Supporting protocol for ASI	no
Supporting protocol for CAN	no
Supporting protocol for KNX	no
Supporting protocol for LON	no
Number of HW-interfaces other	0
Number of interfaces PROFINET	0
Suitable for safety functions	no
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	yes
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Supporting protocol for Modbus	no
Supporting protocol for SERCOS	no
Supporting protocol for TCP/IP	no
Supporting protocol for SUCONET	no
Number of HW-interfaces parallel	0
Number of HW-interfaces wireless	0
Supporting protocol for EtherCAT	no
Supporting protocol for INTERBUS	no
Supporting protocol for PROFIBUS	no
Appendant operation agent (Ex ia)	no
Appendant operation agent (Ex ib)	no
Explosion safety category for gas	None
Supporting protocol for DeviceNet	no
Supporting protocol for PROFIsafe	no
Explosion safety category for dust	None
Number of HW-interfaces serial TTY	0
Supporting protocol for EtherNet/IP	no
Supporting protocol for PROFINET IO	no
Supporting protocol for SafetyBUS p	no
Supporting protocol for Data-Highway	no
Supporting protocol for PROFINET CBA	no
Supporting protocol for INTERBUS-Safety	no
Supporting protocol for DeviceNet Safety	no
Supporting protocol for other bus systems	no
Certified for UL hazardous location class I	no
Number of HW-interfaces industrial Ethernet	0
Supporting protocol for Foundation Fieldbus	no
Certified for UL hazardous location class II	no
Certified for UL hazardous location class III	no
Performance level according to EN ISO 13849-1	None
Certified for UL hazardous location division 1	no
Certified for UL hazardous location division 2	no
Supporting protocol for AS-Interface Safety at Work	no
Certified for UL hazardous location group D (propane)	no
Certified for UL hazardous location group B (hydrogen)	no
Certified for UL hazardous location group C (ethylene)	no
Certified for UL hazardous location group A (acetylene)	no
Certified for UL hazardous location group E (metal dusts)	no
Certified for UL hazardous location group F (carbonaceous dusts)	no
Certified for UL hazardous location group G (non-conductive dusts)	no
