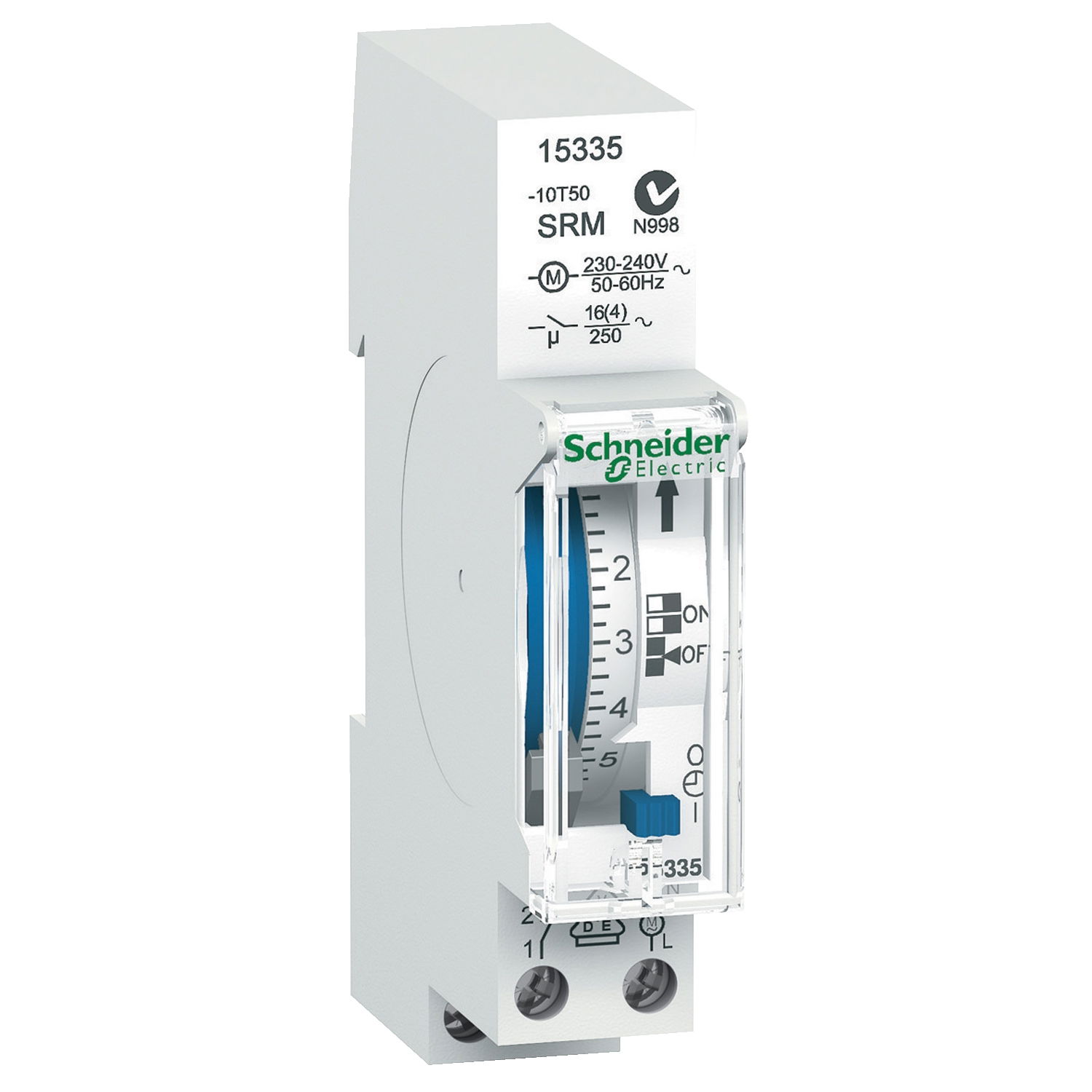

Acti 9 - IH - mechanical time switch - 24 h - without memory

Acti 9 - IH - mechanical time switch - 24 h - without memory by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £114.22 excl. VAT. Voltimum+ members earn 17 points per unit.

IH mechanical time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on daily level Swiching cycle is 24 h (daily) The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Manual override is possible 1 channel output

Product identifiers

SKU: 15335
EAN: 3303430153351
GTIN: 3303430153351
MPN: 15335

Voltimum+ Loyalty Programme Loyalty points: 17

Price: £ 114.22 Excl. VAT

Categories

Switchgear Low Voltage Switchgear Switchgear & Circuit Protection LED Lighting & Luminaires Lighting Controls

ETIM group

Devices for distribution board-/surface mounting

Specifications

Depth 66 mm
Width 18 mm
Height 90 mm
24 h program yes
Contact type -
60 min program no
Annual program no
Supply voltage
Mounting method DIN rail
Autonomy in hours 0
Mains synchronous no
Number of channels 1
Program shift divide 2 -
Frequency supply voltage
Degree of protection (IP) IP20
Suitable for manual operation yes
Shortest switching time channel 1 15 min
Width in number of modular spacings 1
Automatic switching summer-/winter time no
