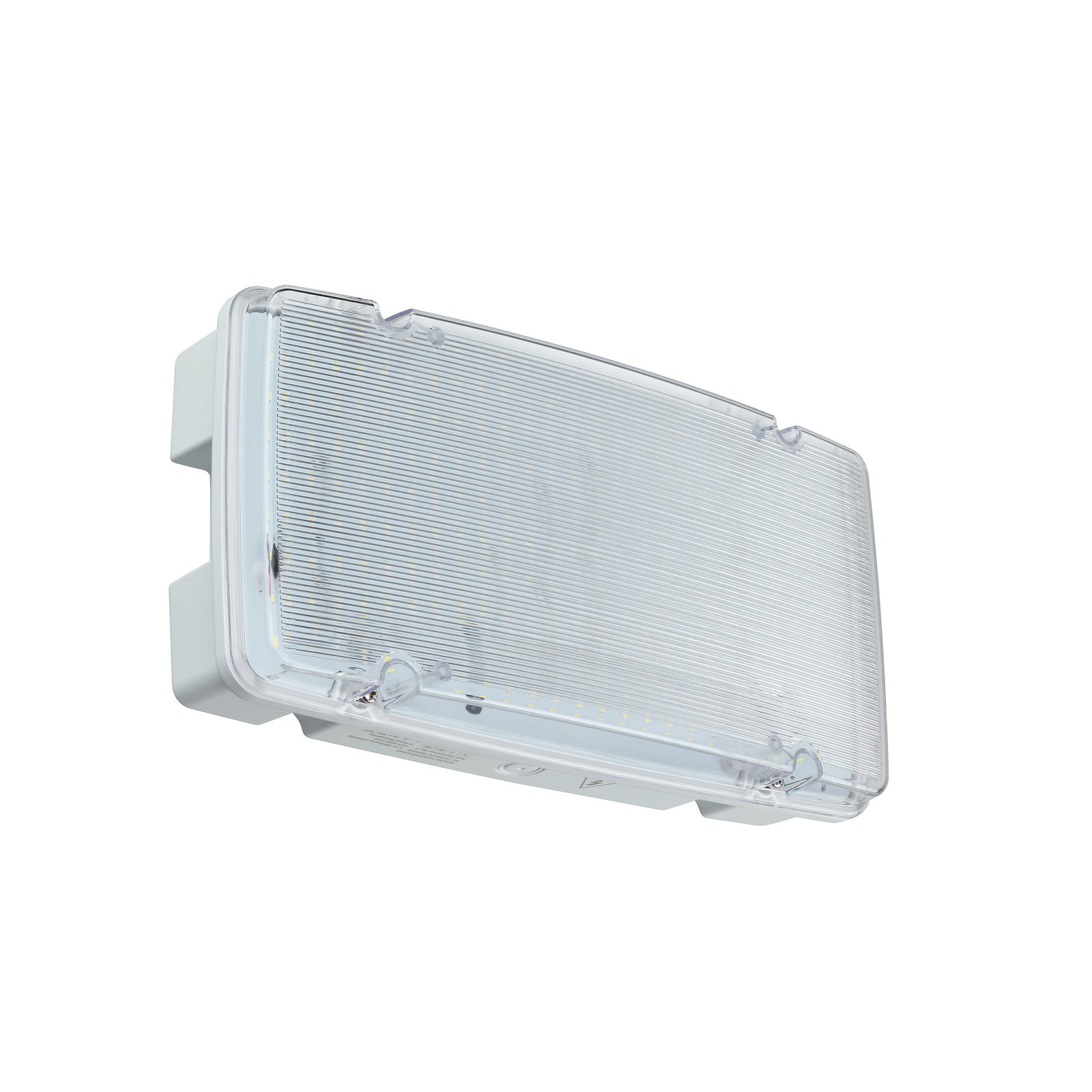

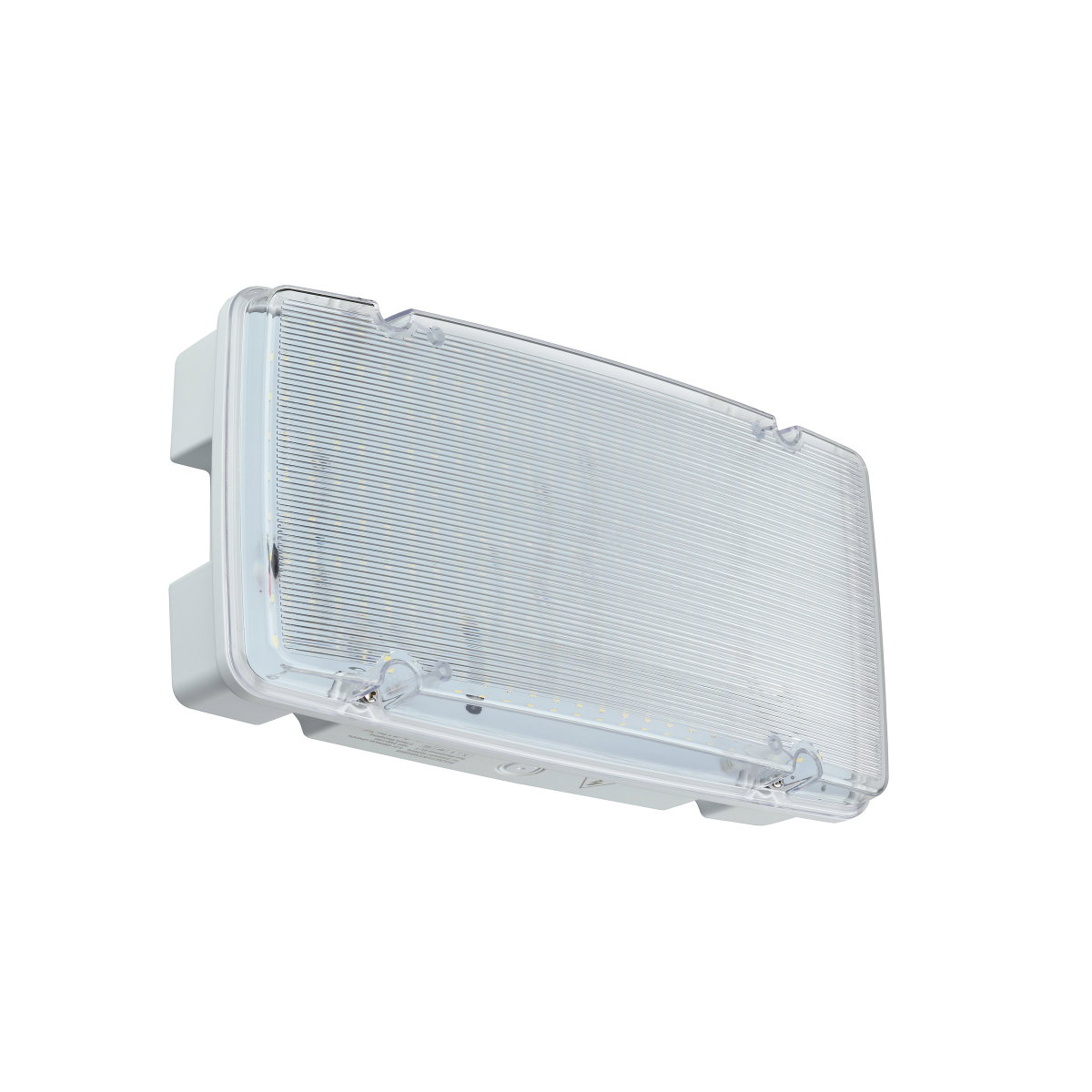

Emergency Bulkhead, high output, 10 W, 10 W, 321x167 mm H83 mm, 1587 lm, 6500 K, IP65, ELB3h

high output, 321x167 mm; H83 mm, Polycarbonate, White, Signal white (RAL9003), 1587 lm, 10 W, 176 lm/W, 6500 K, 0.33, Ribbed, UV-stabilised polycarbonate cover, IP65 | Dust penetration-protected, jet-proof, IK08 | 6 J, Safety class II, 2 push-in connectors 3-pole, Emergency lighting 3-hours duration basic version

Product identifiers

SKU: 912401483512

Price: £ 0.00 Excl. VAT

Specifications

Cable -
CE mark Yes
Dimmable No
ENEC mark -
Connection 2 push-in connectors 3-pole
Optic type -
Inrush time 100 ms
Input Voltage 220-240 V
Overall width 167 mm
Housing Colour White
Line Frequency 50 Hz
Overall height 83 mm
Driver included Yes
Warranty period 5 years
Lamp family code -
EU RoHS compliant Yes
Flammability mark -
Power Consumption 10 W
Optical cover type -
Light source colour 6500
Protection class IEC Safety class II
Ingress protection code IP65 | Dust penetration-protected, jet-proof
Power Factor (Fraction) 0.3
Light source engine type LED
End CLO power consumption 10 W
Upwards light output ratio 6.82
Optical cover/lens material UV-stabilised polycarbonate cover
Colour rendering index (CRI) <gt/>80
Standard tilt angle post-top
Driver/power unit/transformer -
Suitable for random switching Not applicable
Correlated Colour Temperature (Nom) 6500 K
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h L85
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 100000 h L85
