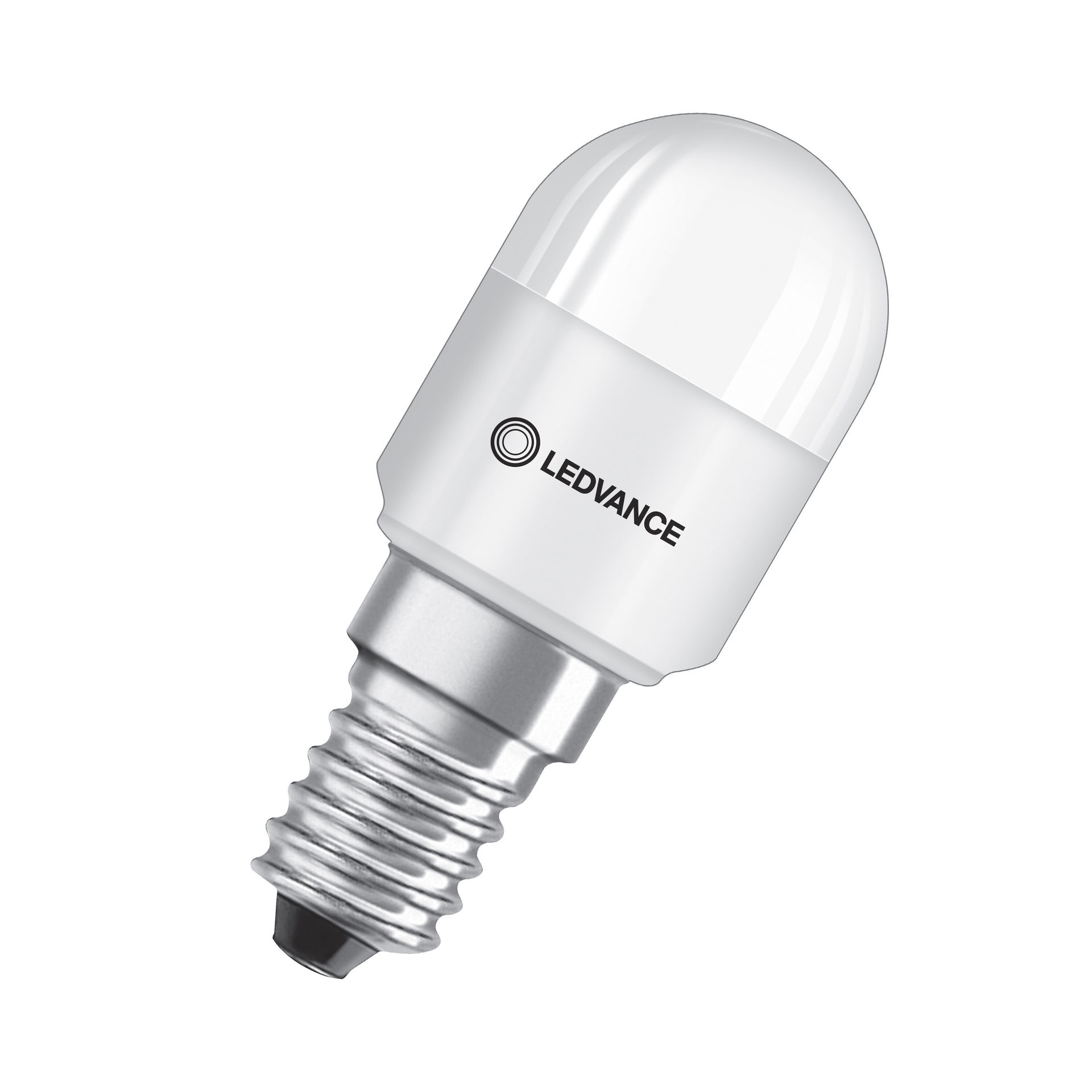

LED Special T26 20 200° V 2.3W 865 Frosted E14

LED Special T26 20 200° V 2.3W 865 Frosted E14

Product benefits
  • Extremely small dimensions
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Small designer luminaires
  • Domestic refrigerators
  • Sewing machines
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links

Product identifiers

SKU: 4099854067020
EAN: 4099854067020
GTIN: 4099854067020
MPN: 4099854067020

Price: £ 2.73 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Capabilities

Dimmable No

Electrical data

Nominal wattage 2.3 W
Construction wattage 2.30 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 22 mA
Inrush current 4.6 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 169
Power factor λ 0.40

Documents

Documents and certificates

Data sheet
Open

Documents And Certificates

Declarations of conformity UKCA – LED T26 PT26 E14
Open
Product datasheet -> old version of product – LEDSpecialT2620200°P2 .3W865FrostedE14en
Open

Photometric And Lighting Design Files

Spectral power distribution – EPREL data spectral diagram PROF LEDr 6500K
Open
