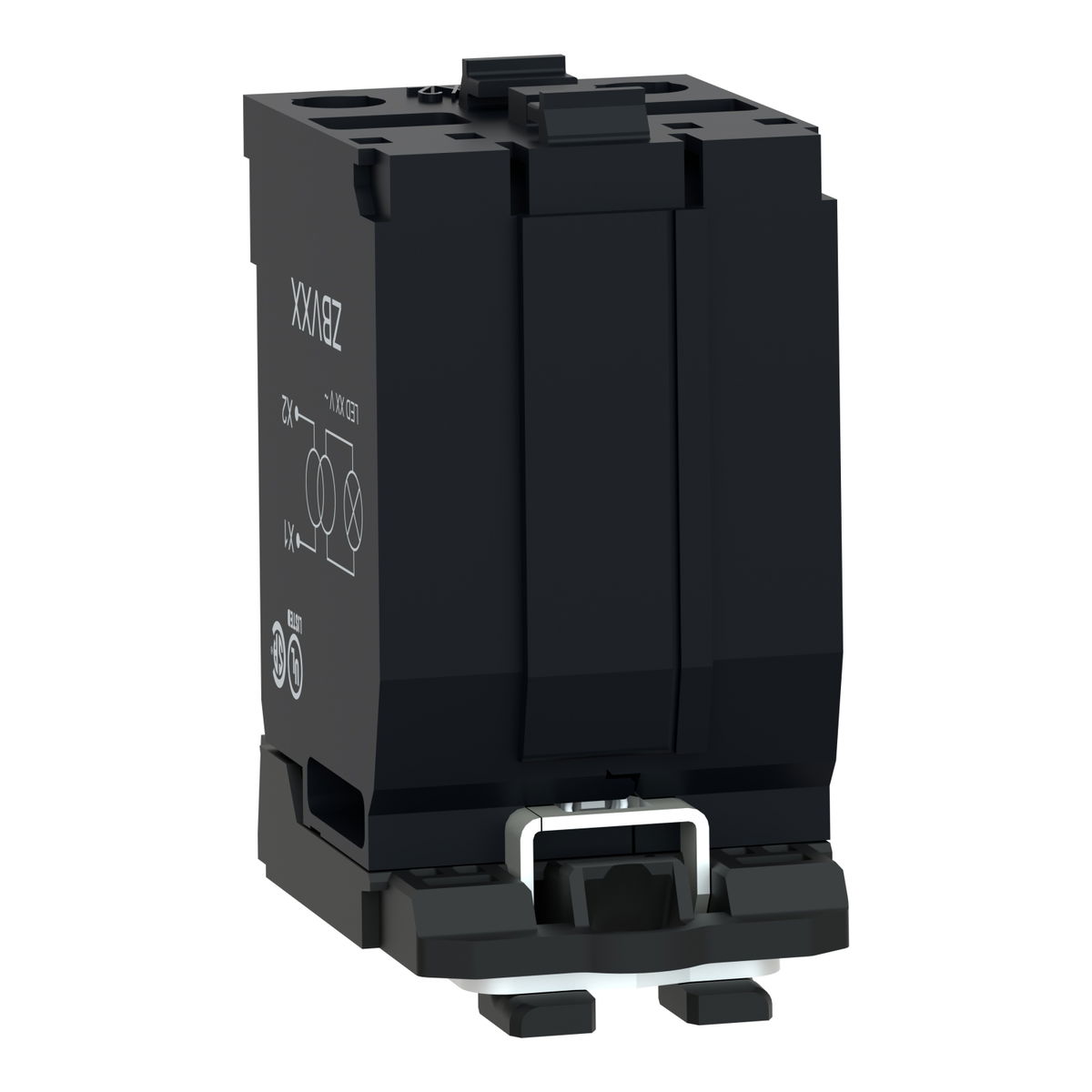

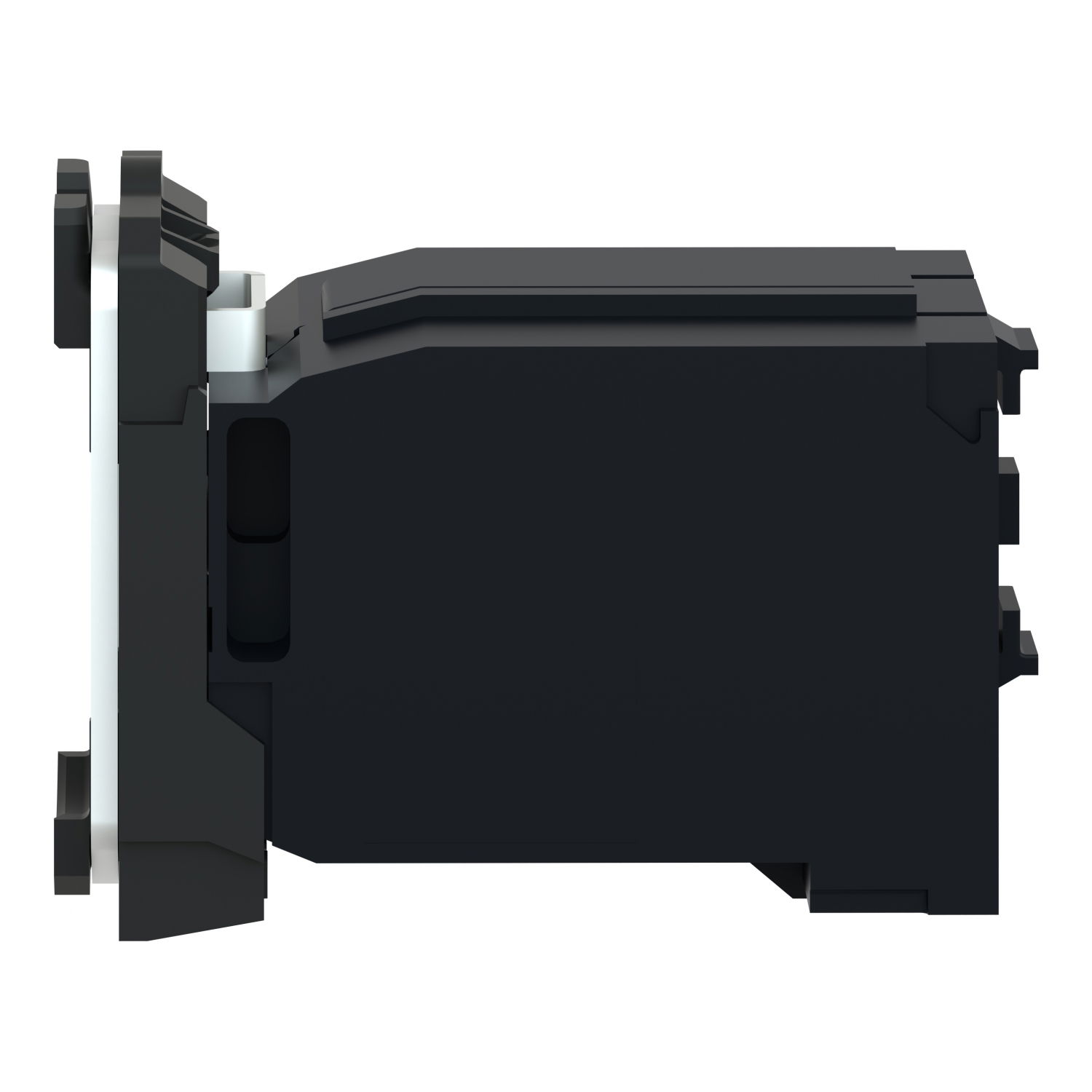

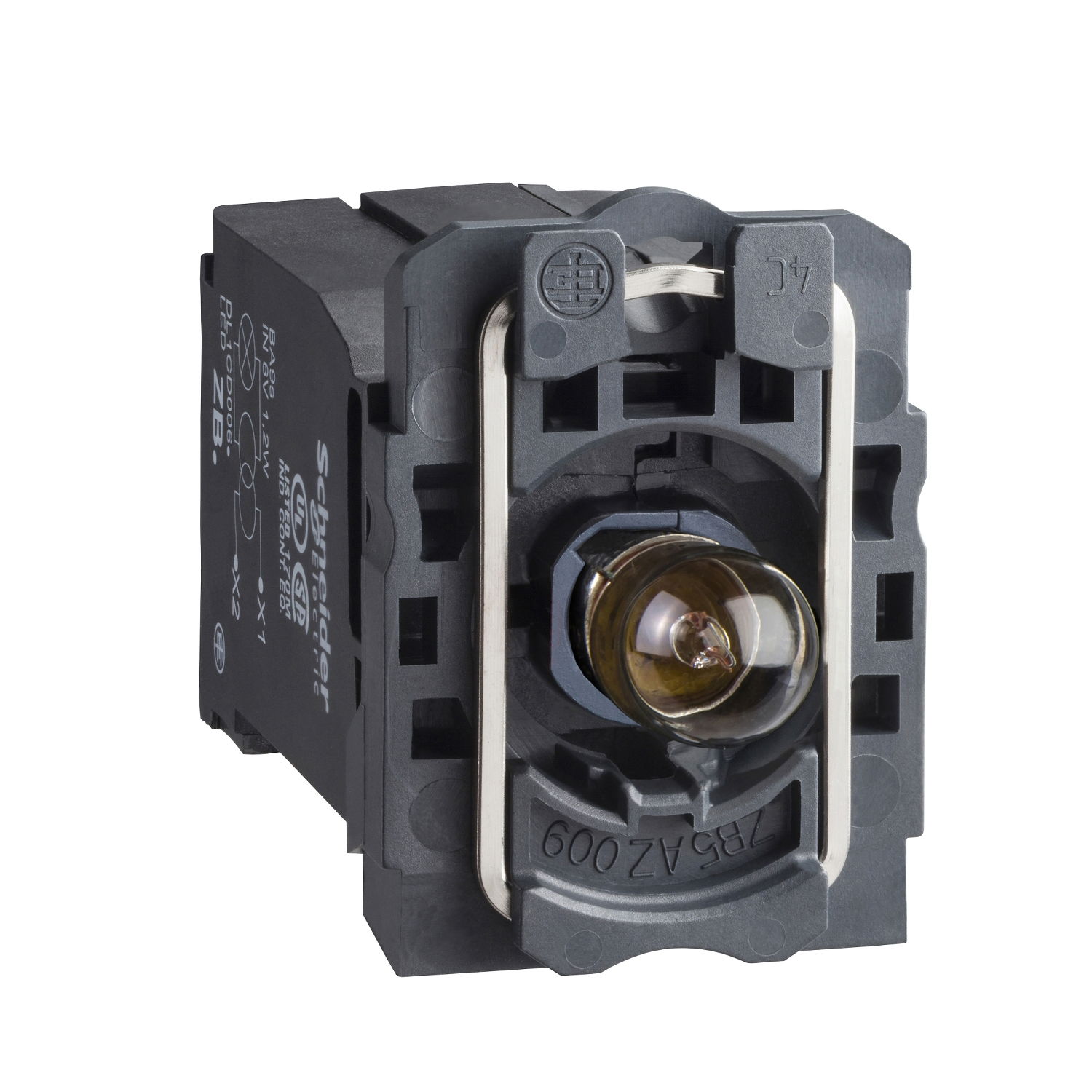

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 2 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 3 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 4 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 5 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 6 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 7 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 8 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 9 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 10 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 11 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 12 of 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V – Image 13 of 13

1 / 13

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V

Link copied

SKU
EAN
GTIN
MPN

Light block with body/fixing collar with BA9s incandesc. bulb 440...480V by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £32.74 to £36.51 excl. VAT. Voltimum+ members earn 4 points per unit.

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Loyalty points: 4

Price range: £ 32.74 - £ 36.51 Excl. VAT

Specifications

Lamp type	Incandescent lamp
Lamp holder	BA9s
Type of fastening	Front fastening
With light source	yes
Colour light source	Other
With integrated diode	no
Rated voltage Ue at DC
Transformer integrated	yes
Voltage type for actuating	AC
Rated voltage Ue at AC 50 Hz
Rated voltage Ue at AC 60 Hz
Connection type auxiliary circuit	Screw connection
With integrated voltage decreasing resistor	no
