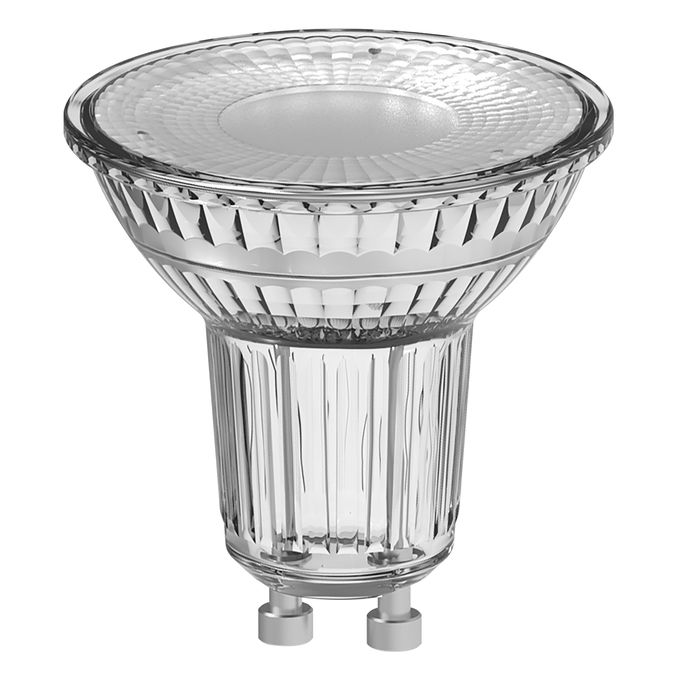

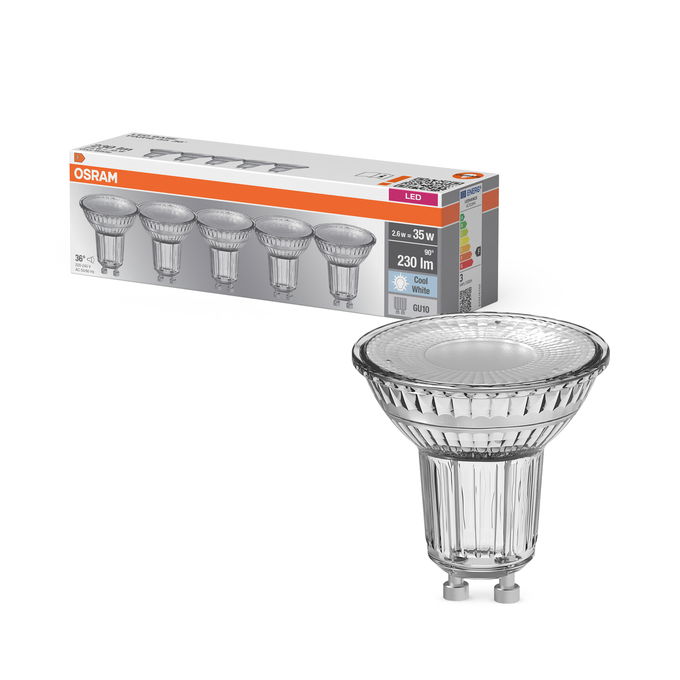

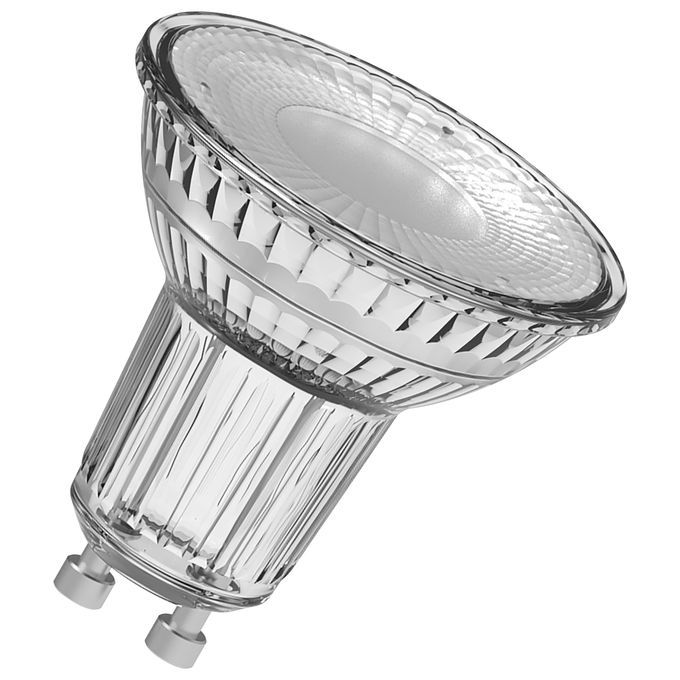

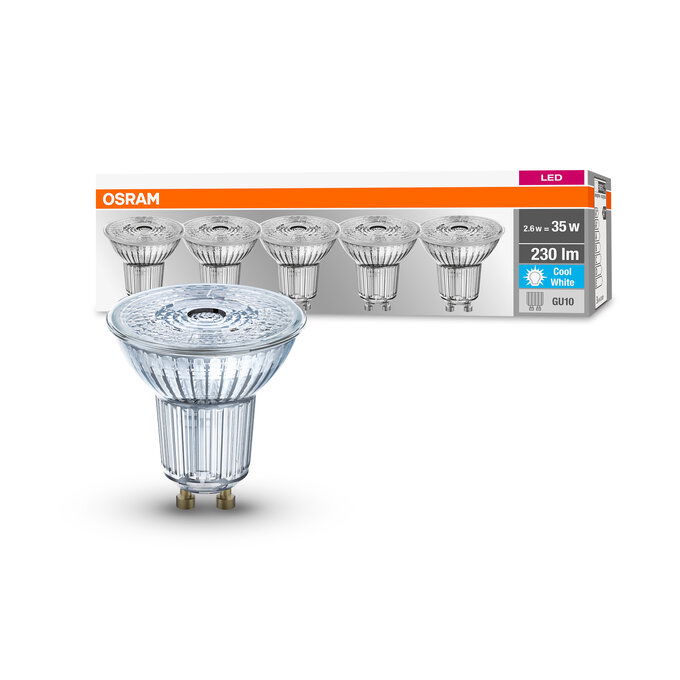

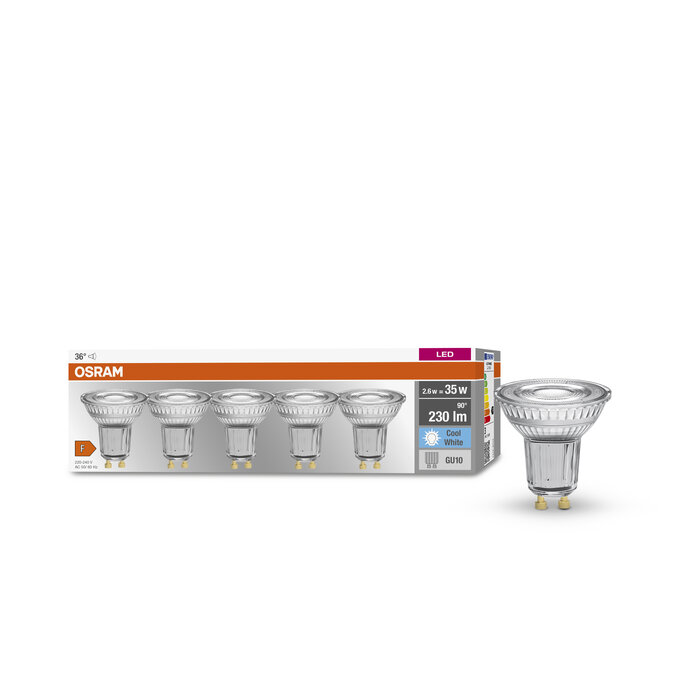

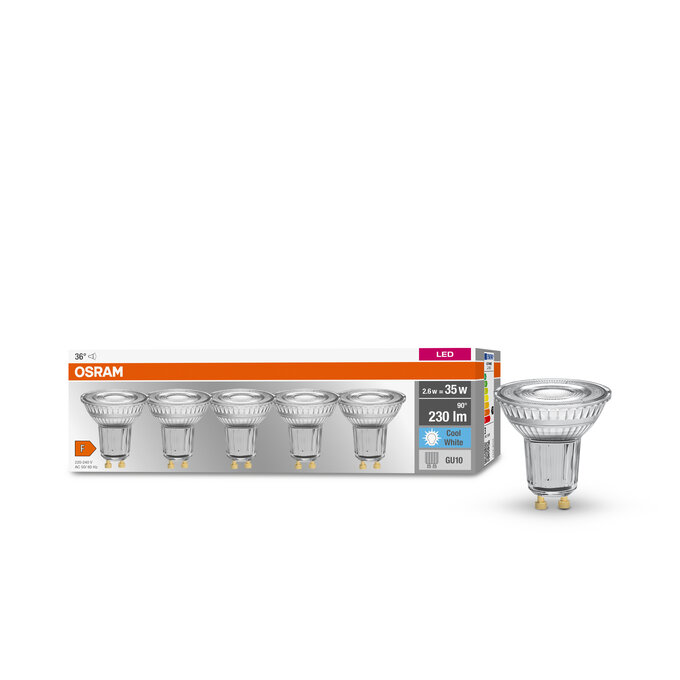

LED Base PAR 16 35 36° 2.6W 840 GU10

LED Base PAR 16 35 36° 2.6W 840 GU10

Product benefits
  • Ideal for economical spotlighting
  • Alternative to line-voltage halogen lamps
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Shockproof and vibration-proof thanks to LED technology
  • Professional thermal management
Areas of application
  • Spotlighting for accents
  • Domestic applications
  • Spotlighting heat-sensitive objects such as food, plants, etc.
  • Outdoor use in suitable outdoor luminaires only
  • As a downlight for marking walkways, doors, stairs, etc.
  • Atmospheric accent lighting throughout the home
  • All domestic rooms, especially where the lamps are visible
Product features
  • LED lamps for line voltage
  • Not dimmable
  • Base: GU10
  • Mercury-free lamps
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075157965
EAN: 4058075157965
GTIN: 4058075157965
MPN: 4058075157965

Price: £ 10.26 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 10000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.95

Capabilities

Dimmable No

Electrical data

Nominal wattage 2.6 W
Construction wattage 2.60 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 25 mA
Inrush current 5.16 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 80
Power factor λ > 0.40
