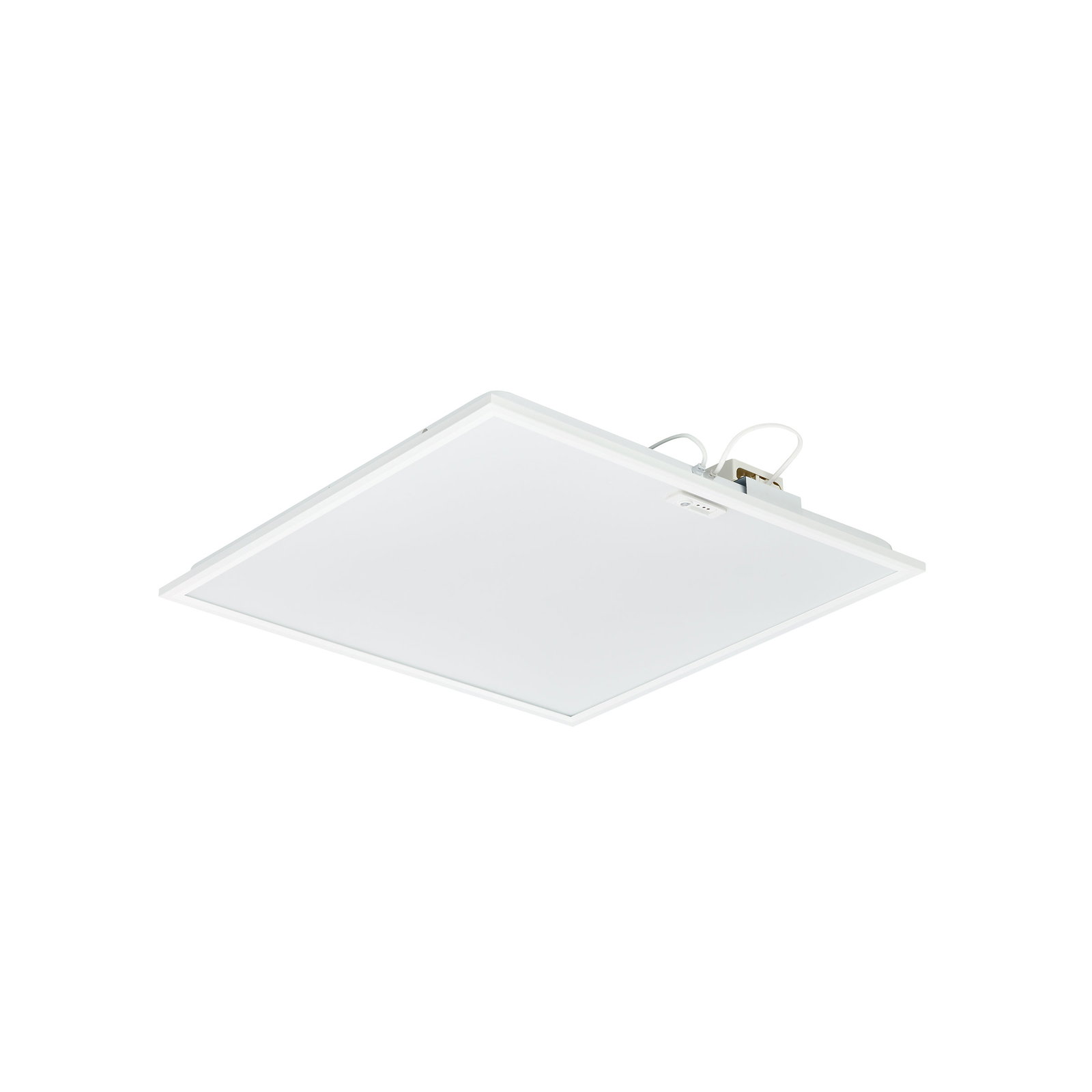

CoreLine Panel gen6, 32 W, 600x600 mm, VPC, 4300 lm, 4000 K, Sensor-based dim, UGR19, IA4
600x600 mm, Visible profile ceiling version, Aluminium, White, Signal white (RAL9003), Single layer powder coating, Ceiling, Power supply unit with DALI and SystemReady interface, Interact-ready, Interact SNS210 sensor, 4300 lm, 32 W, 135 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3, UGR19, Beam angle 90°, White reflector, Polycarbonate, IP20 | No protection, IK02 | 0.2 J standard, Safety class II, Cable 0.3 m with connector 2-pole, 2 push-in connectors 2-pole, SC | Safety cable
Product identifiers
SKU: 910505102802
Price: £ 0.00 Excl. VAT
Categories
Features
|
Cable
|
Cable 0.3 m with connector 2-pole
|
|
CE mark
|
Yes
|
|
Dimmable
|
Yes
|
|
ENEC mark
|
ENEC mark
|
|
Connection
|
2 push-in connectors 2-pole
|
|
Optic type
|
Beam angle 90°
|
|
Inrush time
|
0.25 ms
|
|
Input Voltage
|
220-240 V
|
|
Luminous Flux
|
4300 lm
|
|
Overall width
|
595 mm
|
|
Glow-wire test
|
Temperature 650 °C, duration 30 s
|
|
Housing Colour
|
White
|
|
Inrush current
|
9 A
|
|
Line Frequency
|
50 to 60 Hz
|
|
Optic material
|
Polycarbonate
|
|
Overall height
|
73 mm
|
|
Overall length
|
595 mm
|
|
Driver included
|
Yes
|
|
Warranty period
|
5 years
|
|
Housing material
|
Aluminium
|
|
Control interface
|
Sensor-based dim
|
|
EU RoHS compliant
|
Yes
|
|
Fixation material
|
-
|
|
Flammability mark
|
-
|
|
Maximum dim level
|
10%
|
|
Power Consumption
|
32 W
|
|
Reflector material
|
Polycarbonate
|
|
Light source colour
|
840 neutral white
|
|
Initial chromaticity
|
(0.38, 0.38) SDCM ≤3
|
|
Protection class IEC
|
Safety class II
|
|
Constant light output
|
No
|
|
Ingress protection code
|
IP20 | No protection
|
|
Luminous flux tolerance
|
-10% / +10%
|
|
Power Factor (Fraction)
|
0.9
|
|
Ambient temperature range
|
0°C to 35°C
|
|
Optical cover/lens finish
|
-
|
|
Beam angle of light source
|
90 degree(s)
|
|
Unified Glare Rating (CEN)
|
19
|
|
Luminaire light beam spread
|
90°
|
|
Optical cover/lens material
|
Polycarbonate
|
|
Power consumption tolerance
|
+/-10%
|
|
Colour rendering index (CRI)
|
<gt/>80
|
|
Mech. impact protection code
|
IK02 | 0.2 J standard
|
|
Average CLO power consumption
|
- W
|
|
Driver/power unit/transformer
|
Power supply unit with DALI and SystemReady interface, Interact-ready
|
|
Initial CLO power consumption
|
- W
|
|
Suitable for random switching
|
No
|
|
Luminous efficacy (rated) (nom.)
|
135 lm/W
|
|
Correlated Colour Temperature (Nom)
|
4000 K
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 35000 h
|
-
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h
|
L90
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 75000 h
|
-
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 100000 h
|
L80
|
