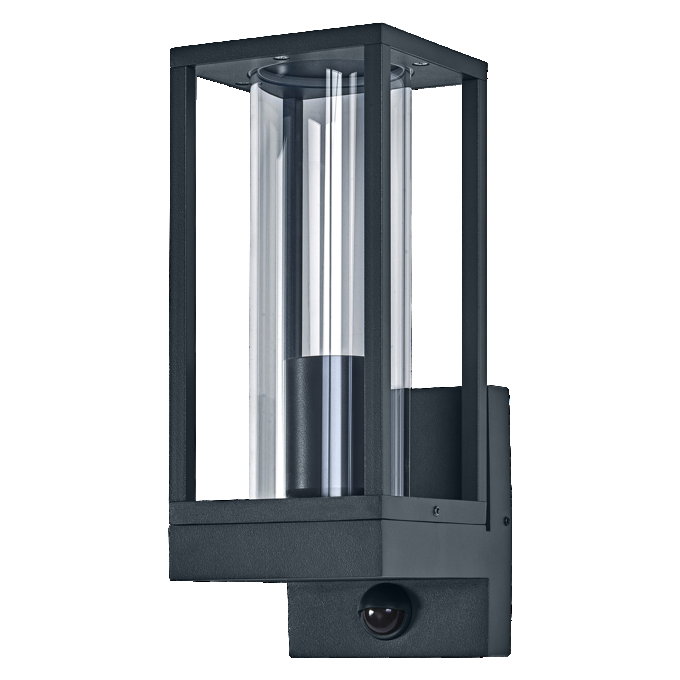

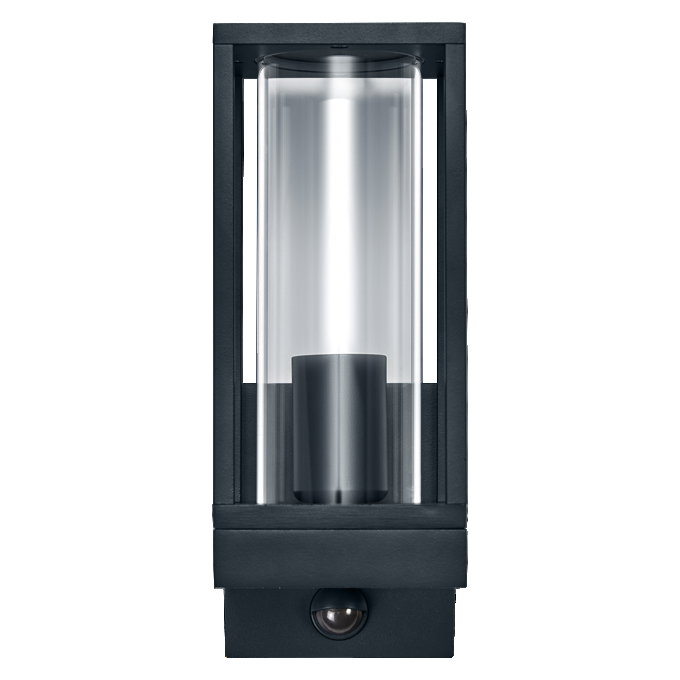

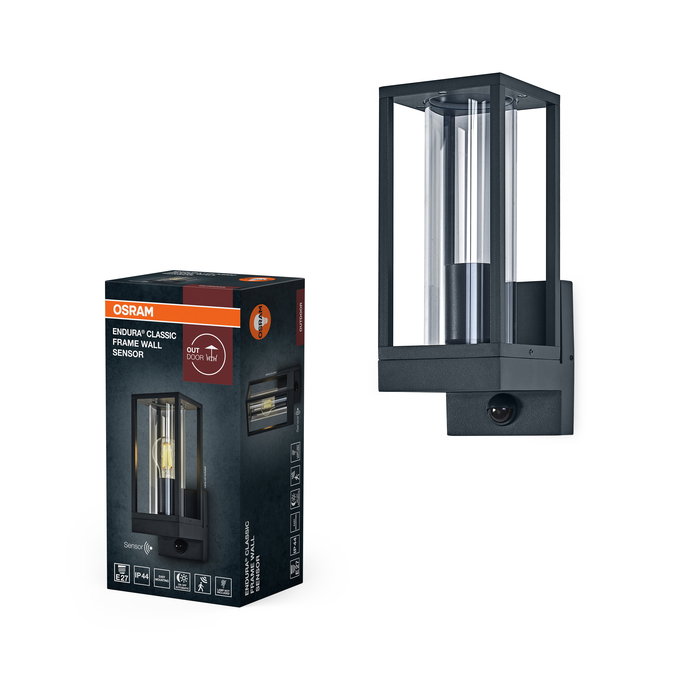

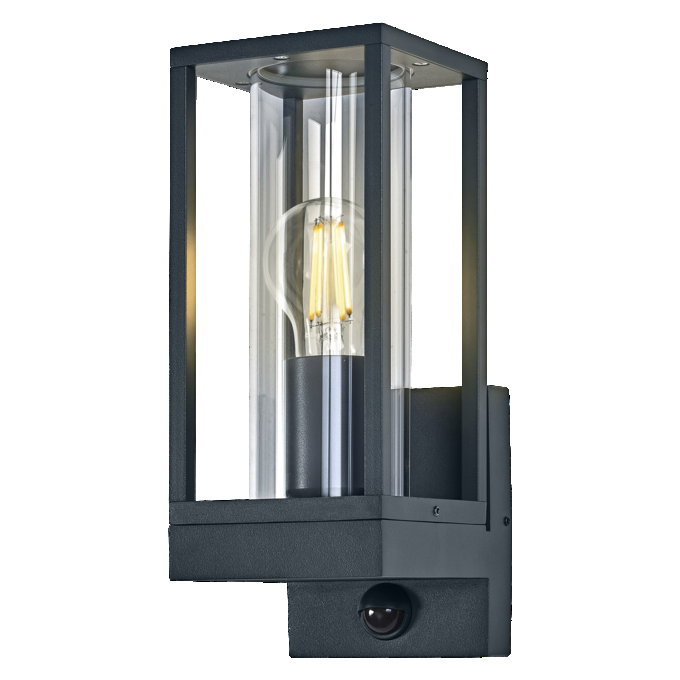

ENDURA Classic Frame Wall Sensor E27 IP54 Dark Grey
1 / 4
ENDURA Classic Frame Wall Sensor E27 IP54 Dark Grey
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
- Option with PIR motion detection and daylight sensor, matching with housing color available
- Long-term energy and cost savings (sensor version)
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Suitable for smart applications thanks to compatibility with SMART+ lamps
- Lower light smog, on-demand lighting (sensor version)
- Direct illumination
- Light cover material: glass
- Light cover appearance: clear
- Housing material: aluminum
- Housing color: RAL 7016
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Product identifiers
SKU: 4099854415654
EAN: 4099854415654
GTIN: 4099854415654
MPN: 4099854415654
Price: £ 0.00 Excl. VAT
Categories
Specifications
Sensor
| Type of sensor | Light; Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 100 ° |
| Sensor controlled switching time | 10 s…5 m |
| Detection range of motion sensor | 4…10 m |
| Detection threshold of daylight sensor | 30…10000 lx |
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
