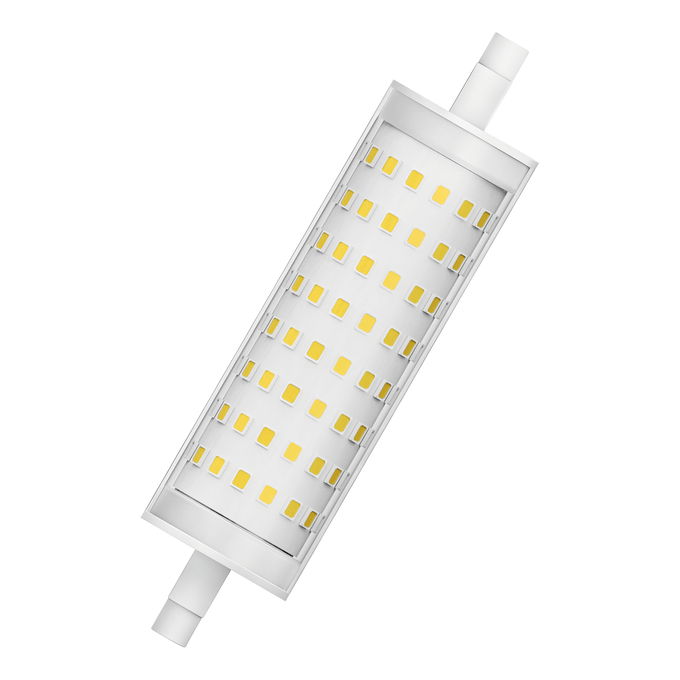

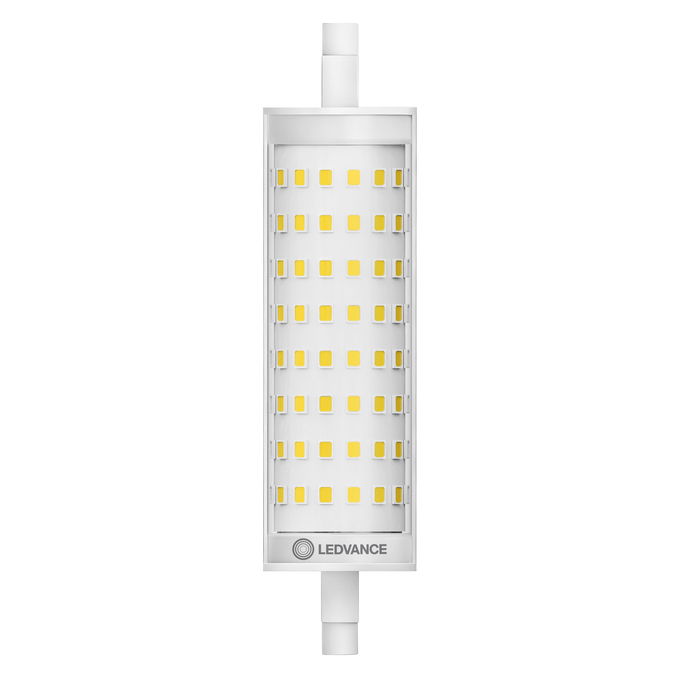

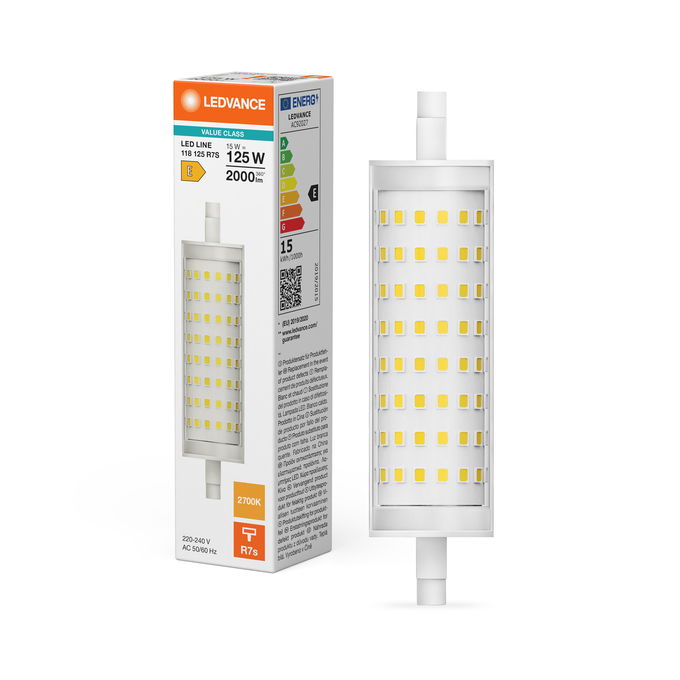

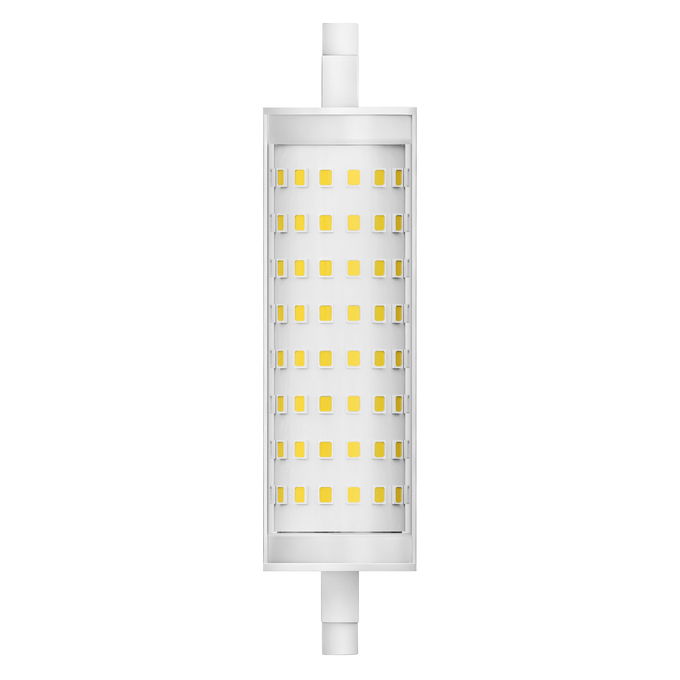

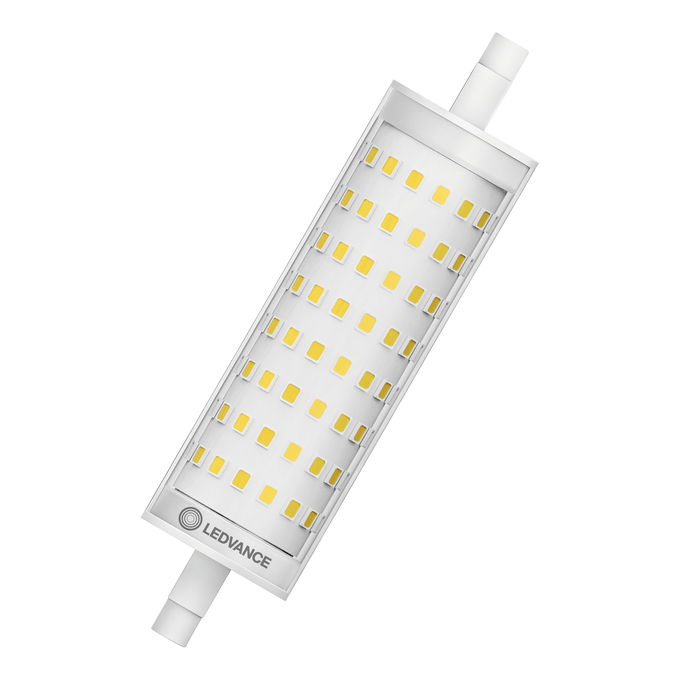

LED Line 118 125 300° V 15W 827 Clear R7s

Product benefits

Fits into most R7s luminaires thanks to excentric base
Good all-around light emission
Long lifetime of up to 15,000 h
Lower thermal output (compared with the standard reference product)
Four year guarantee
Lower energy consumption than incandescent or halogen lamps

Areas of application

General illumination within ambient temperatures from -20…+40 °C
Hospitality
Domestic applications
Outdoor use in suitable outdoor luminaires only

Product features

LED alternative to conventional R7s lamps
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.
To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.

References / Links

For Guarantee see www.osram-lamps.com/guarantee

Product identifiers

SKU: 4099854048647

EAN: 4099854048647

GTIN: 4099854048647

MPN: 4099854048647

Price: £ 0.00 Excl. VAT

ETIM Group

Lamps

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93

Capabilities

Dimmable

Electrical data

Nominal wattage	15 W
Construction wattage	15.00 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	125 W
Nominal current	105 mA
Type of current	AC
Inrush current	5.68 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	58
Max. lamp number on MCB B16 A	73
Total harmonic distortion	≤ 150 %
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED SPECIAL LINE118

Open

Declarations of conformity UKCA – LED special lamps

Open

Declarations of conformity UKCA – LED lamp

Open

Product datasheet -> old version of product – LEDLine118125300°P15W 827ClearR7sen

Open

Product datasheet -> old version of product – LEDLine118125300°P15W 827ClearR7sen

Open

Photometric And Lighting Design Files

Spectral power distribution – EPREL data spectral diagram PROF LEDr 2700K

Open

Luminous flux	2000 lm
Luminous efficacy	133 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Overall length	118.00 mm
Diameter	28.00 mm
Maximum diameter	28 mm
Product weight	90.00 g

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	R7s
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	E 1)
Energy consumption	15.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG1

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	96 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	R7s
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	118.00 mm
Height	28.00 mm
Width	28.00 mm
Chromaticity coordinate x	0.4578
Chromaticity coordinate y	0.4101
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.70
LED light source replaces a fluorescent light source	No
EPREL ID	1368313,2201950,2506950
Model number	AC45786,AC71611,AC92027

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
