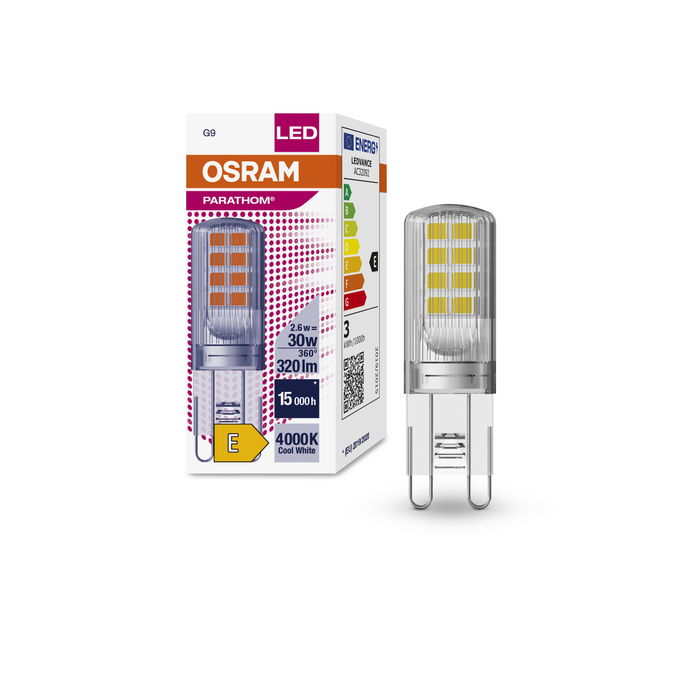

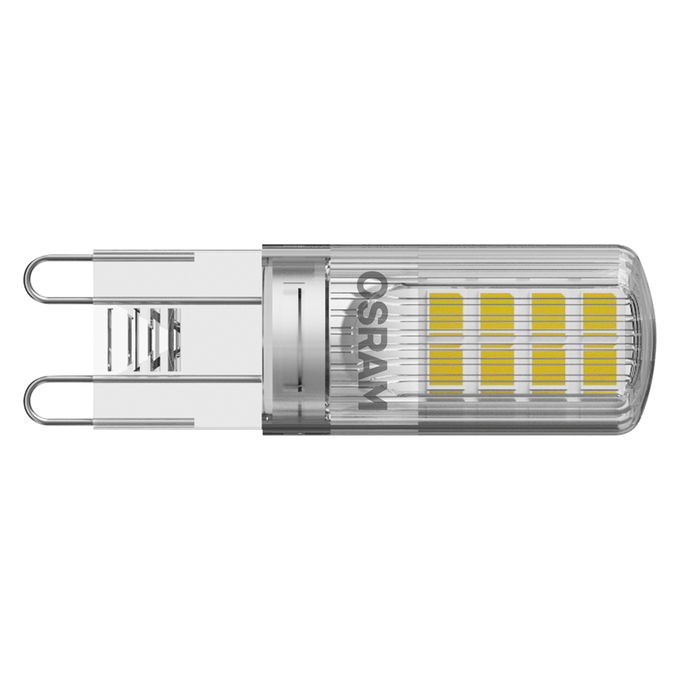

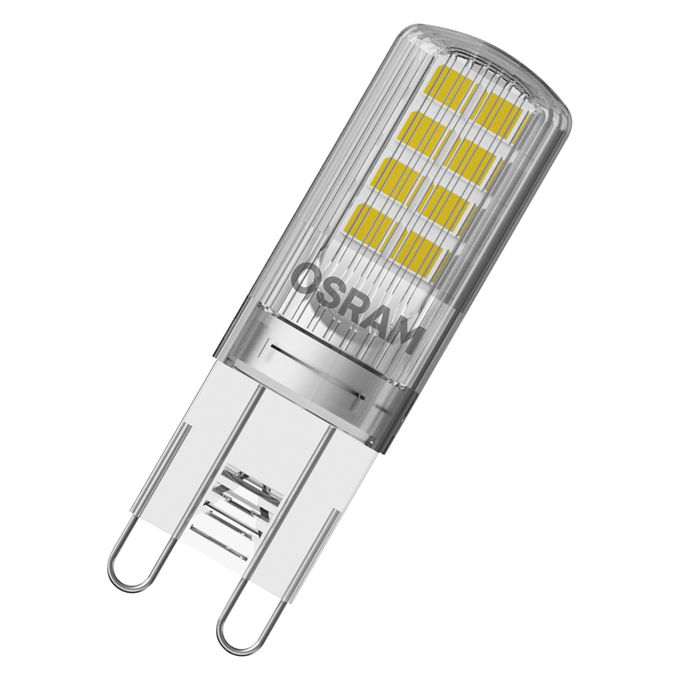

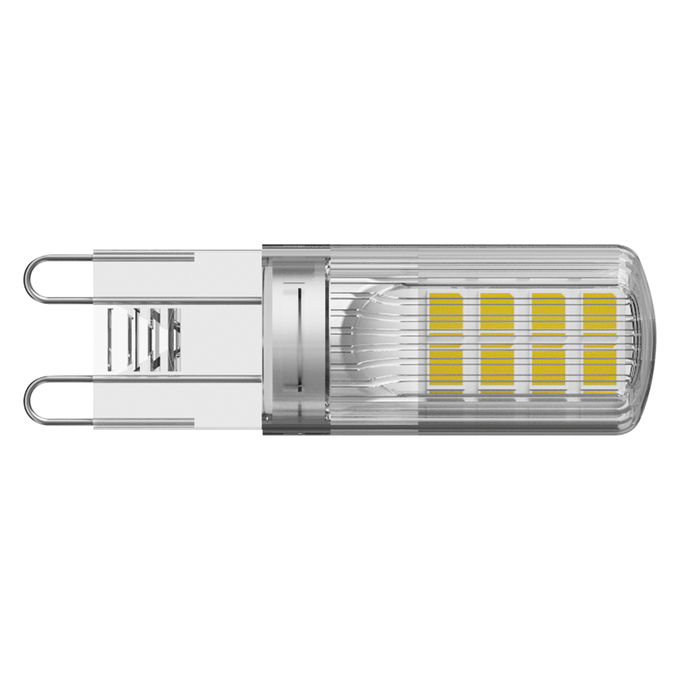

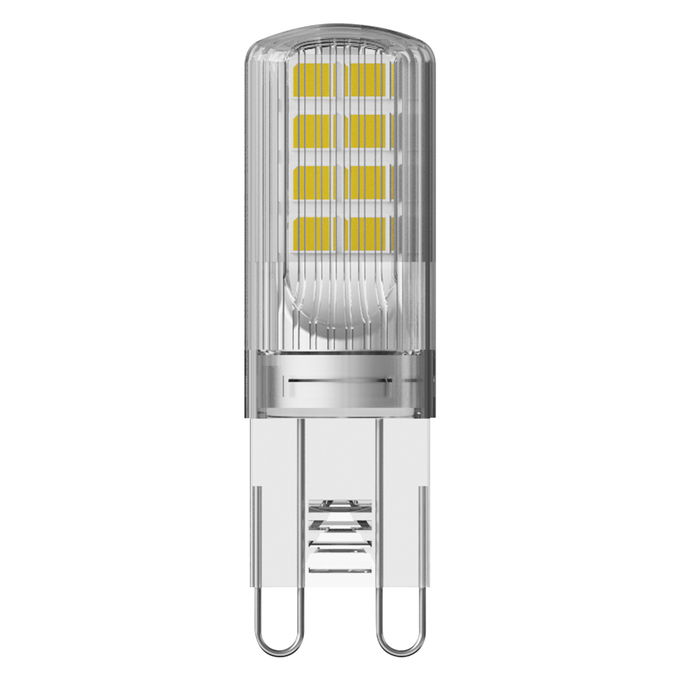

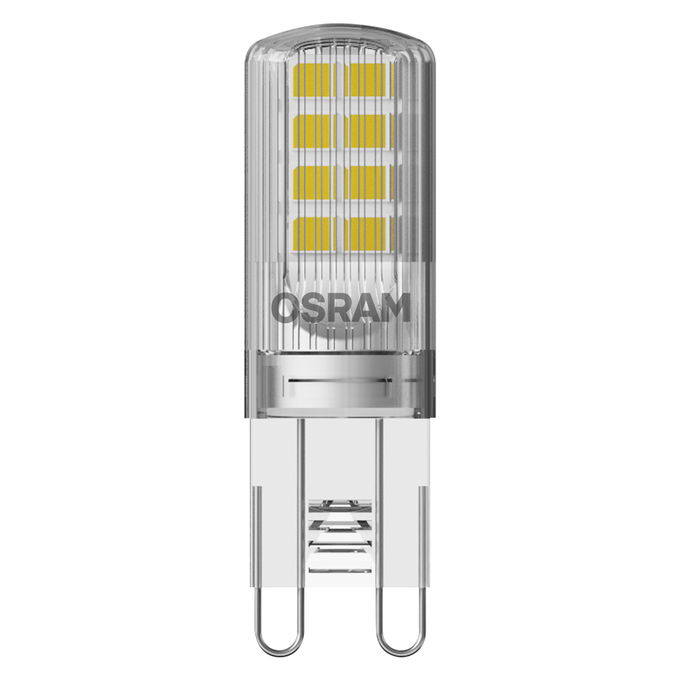

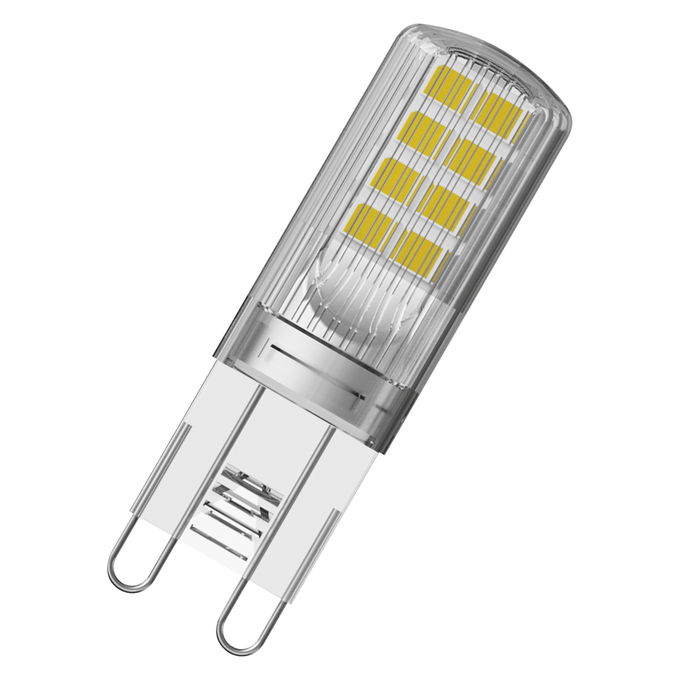

LED PIN 30 300° P 2.6W 840 Clear G9

LED PIN 30 300° P 2.6W 840 Clear G9

Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links

Product identifiers

SKU: 4058075626010
EAN: 4058075626010
GTIN: 4058075626010
MPN: 4058075626010

Price: £ 0.00 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Capabilities

Dimmable No

Electrical data

Nominal wattage 2.6 W
Construction wattage 2.60 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 23 mA
Inrush current 3.06 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 52
Power factor λ > 0.40

Documents

Documents and certificates

Data sheet
Open

Photometric And Lighting Design Files

Spectral power distribution – 349924_4000K_Se_5630.e ps
Open
